Magnitude |
:2.9 |
| Date & Time (UTC) | 2017-07-13 16:29:37.0 |
| Date & Time (Local) | 1396/4/22 20:59:37.0 |

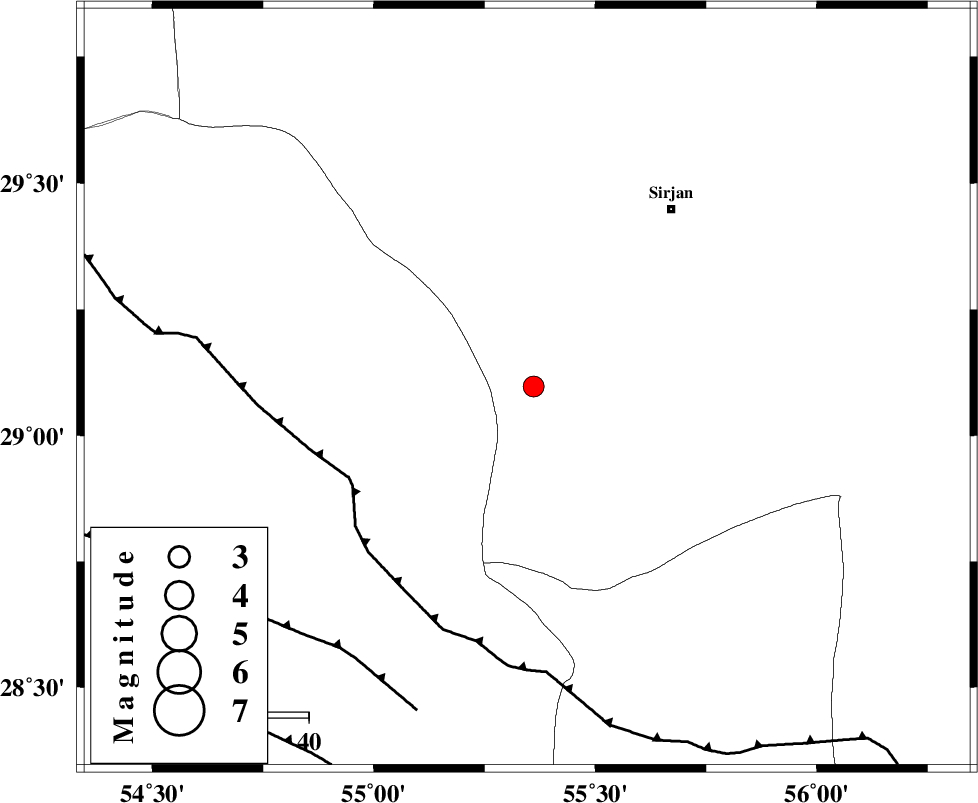

| Location | Lat:29.095 Lon: 55.346 |
| Region | Kerman Province, 50 km South-West of Sirjan |
Nearest Cities |
|
| 47 km South West of Sharifabad, Kerman Province | |
| 48 km South West of Najafabad, Kerman Province | |
| 50 km South West of Sirjan, Kerman Province | |
| 51 km South West of Malekabad, Kerman Province | |
| 56 km South West of Mahmud Abad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 45 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 46 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 75 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 4 km |
| Error in Depth | 7.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117735 | IIEES | KRBR | N | 139.5 | 0.43 | 2017-07-13 16:30:29 | 2017-07-16 10:17:00 | n |
| 117736 | IIEES | KRBR | E | 168.1 | 0.43 | 2017-07-13 16:30:30 | 2017-07-16 10:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-07-13 16:30:04 | -0.35 | y | 169 | 54 | |||
| IIEES | KRBR | N | Sg | E | 2017-07-13 16:30:25 | 0.25 | y | 169 | 54 | |||
| IIEES | BNDS | Z | Pn | E | 2017-07-13 16:30:10 | -0.01 | y | 205 | 156 | |||
| IIEES | BNDS | N | Sg | E | 2017-07-13 16:30:35 | 0.03 | y | 205 | 156 | |||
| IIEES | GHIR | Z | Pn | E | 2017-07-13 16:30:15 | 0.08 | y | 247 | 249 | |||
| IIEES | YZKH | Z | Pn | E | 2017-07-13 16:30:31 | 0.07 | y | 372 | 349 | |||
| IIEES | TABS | Z | Pn | E | 2017-07-13 16:30:50 | -0.09 | y | 532 | 18 | |||
