Magnitude |
:3 |
| Date & Time (UTC) | 2017-07-21 01:27:53.7 |
| Date & Time (Local) | 1396/4/30 05:57:53.7 |
| Location | Lat:29.537 Lon: 58.45 |
| Region | Kerman Province, 48 km North of Bam |
Nearest Cities |
|
| 46 km North of Poshtrud, Kerman Province | |
| 46 km South East of Geshit, Kerman Province | |
| 48 km North of Bam, Kerman Province | |
| 54 km North of Baravat, Kerman Province | |
| 67 km North West of Qasemabad, Kerman Province | |
| Depth | 15 km |
| Agency | |

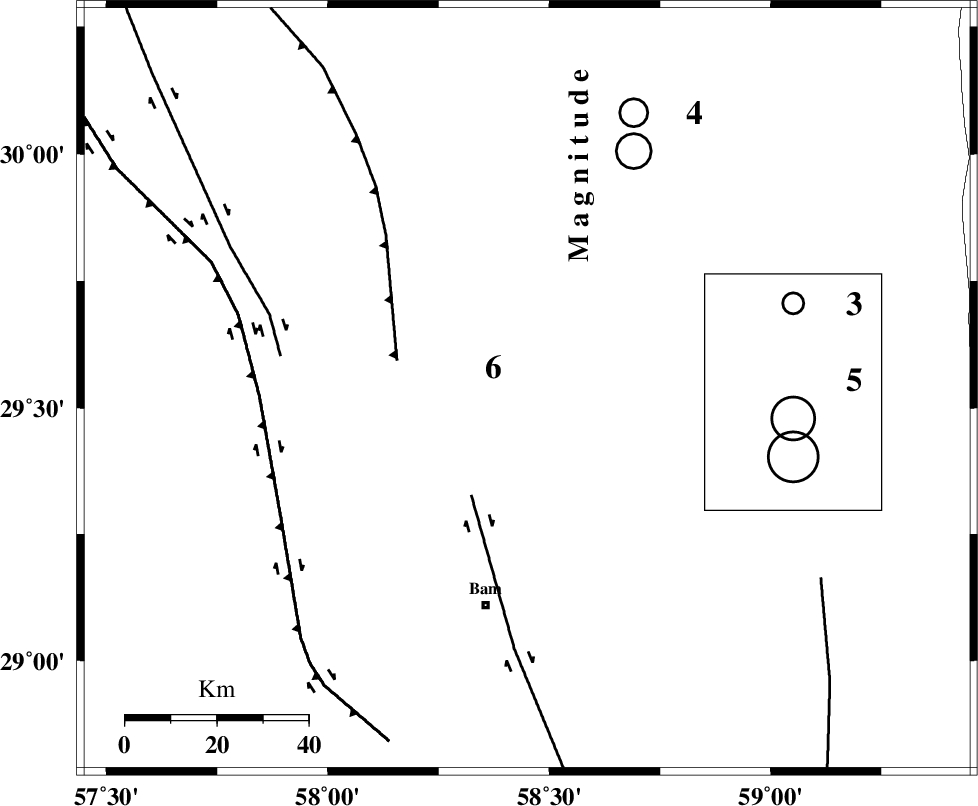

Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 26 km | |
| SHAHDAD_F (Length: 108 km) , Distance to epicenter: 29 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 54 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117843 | IIEES | KRBR | N | 162.9 | 0.22 | 2017-07-21 01:28:43 | 2017-07-22 06:28:00 | n |
| 117844 | IIEES | KRBR | E | 209.6 | 0.25 | 2017-07-21 01:28:44 | 2017-07-22 06:28:00 | n |
| 117845 | IIEES | BSRN | E | 53.7 | 0.2 | 2017-07-21 01:29:14 | 2017-07-22 06:28:00 | n |
| 117846 | IIEES | TABS | N | 12.9 | 0.69 | 2017-07-21 01:30:19 | 2017-07-22 06:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-07-21 01:28:21 | -0.29 | y | 171 | 287 | |||
| IIEES | KRBR | N | S | E | 2017-07-21 01:28:41 | -0.32 | y | 171 | 287 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-07-21 01:28:28 | -0.45 | y | 225 | 87 | |||
| IIEES | BSRN | Z | Pn | E | 2017-07-21 01:28:35 | 0.14 | y | 277 | 13 | |||
| IIEES | BNDS | Z | Pn | E | 2017-07-21 01:28:42 | 0.38 | y | 325 | 224 | |||
| IIEES | TABS | Z | Pn | E | 2017-07-21 01:29:00 | 0.37 | y | 473 | 345 | |||
| IIEES | YZKH | Z | Pn | E | 2017-07-21 01:29:02 | 0.56 | y | 486 | 312 | |||
| IIEES | SHRT | Z | Pn | E | 2017-07-21 01:29:01 | -0.07 | y | 488 | 21 | |||
