Magnitude |
:2.8 |
| Date & Time (UTC) | 2017-07-20 07:03:50.1 |
| Date & Time (Local) | 1396/4/29 11:33:50.1 |

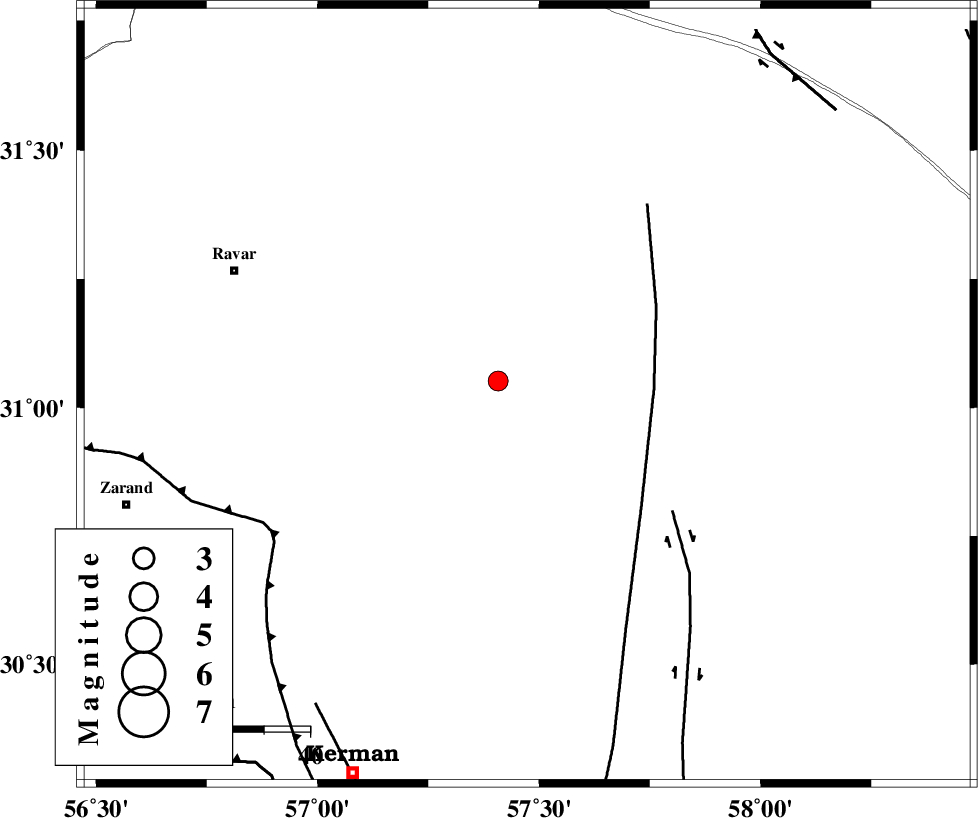

| Location | Lat:31.024 Lon: 57.473 |
| Region | Kerman Province, 68 km South-East of Ravar |
Nearest Cities |
|
| 52 km North East of Harjand, Kerman Province | |
| 56 km North East of Hejdak, Kerman Province | |
| 61 km North East of Dehlulu, Kerman Province | |
| 68 km South East of Ravar, Kerman Province | |
| 69 km North East of Hatkan, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 9 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 29 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 50 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >5.2 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117886 | IIEES | BSRN | E | 67.1 | 0.05 | 2017-07-20 07:04:45 | 2017-07-23 05:15:00 | n |
| 117887 | IIEES | BSRN | N | 94.3 | 0.58 | 2017-07-20 07:04:49 | 2017-07-23 05:15:00 | n |
| 117888 | IIEES | TABS | N | 36.6 | 0.38 | 2017-07-20 07:05:21 | 2017-07-23 05:15:00 | n |
| 117889 | IIEES | YZKH | N | 27 | 0.35 | 2017-07-20 07:05:23 | 2017-07-23 05:15:00 | n |
| 117890 | IIEES | YZKH | E | 27.3 | 0.55 | 2017-07-20 07:05:28 | 2017-07-23 05:15:00 | n |
| 117891 | IIEES | NASN | N | 5.7 | 0.57 | 2017-07-20 07:06:18 | 2017-07-23 05:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-07-20 07:04:12 | 0.04 | y | 134 | 211 | |||
| IIEES | BSRN | Z | Pg | E | 2017-07-20 07:04:21 | -0.19 | y | 189 | 56 | |||
| IIEES | TABS | Z | Pn | E | 2017-07-20 07:04:34 | 0.08 | y | 293 | 354 | |||
| IIEES | YZKH | Z | Pn | E | 2017-07-20 07:04:36 | 0.08 | y | 312 | 300 | |||
| IIEES | SHRT | Z | Pn | E | 2017-07-20 07:04:46 | 0.24 | y | 394 | 42 | |||
| IIEES | NASN | Z | Pn | E | 2017-07-20 07:04:57 | -0.28 | y | 483 | 295 | |||
