Magnitude |
:2.7 |
| Date & Time (UTC) | 2017-07-23 01:27:50.9 |
| Date & Time (Local) | 1396/5/1 05:57:50.9 |

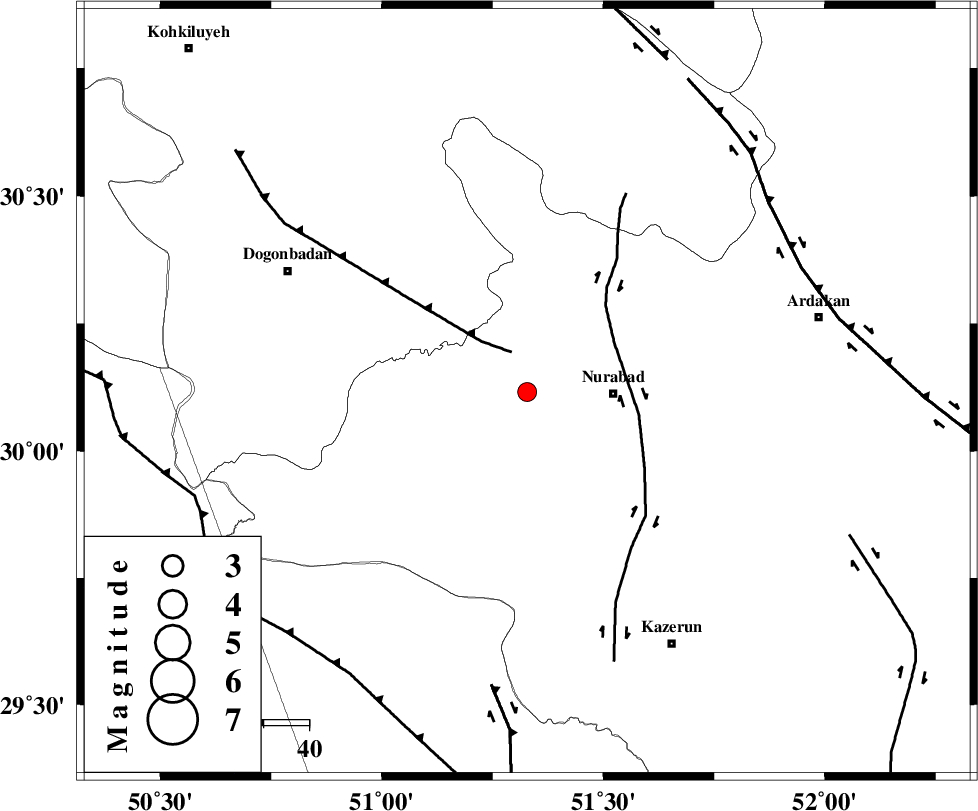

| Location | Lat:30.116 Lon: 51.328 |
| Region | Fars Province, 19 km -West of Nurabad |
Nearest Cities |
|
| 9 km of Ahangari, Fars Province | |
| 13 km North East of Babamonir, Fars Province | |
| 15 km West of Fahlian-e olia, Fars Province | |
| 19 km North West of Nurabad, Fars Province | |
| 20 km North West of Gachgaran, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 9 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 22 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 65 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117897 | IIEES | AHRM | E | 144.3 | 0.53 | 2017-07-23 01:28:36 | 2017-07-23 05:15:00 | n |
| 117898 | IIEES | AHRM | N | 134.3 | 0.35 | 2017-07-23 01:28:37 | 2017-07-23 05:15:00 | n |
| 117899 | IIEES | GHIR | E | 37.2 | 0.5 | 2017-07-23 01:29:14 | 2017-07-23 05:15:00 | n |
| 117900 | IIEES | GHIR | N | 31.2 | 0.6 | 2017-07-23 01:29:14 | 2017-07-23 05:15:00 | n |
| 117901 | IIEES | SNGE | N | 2 | 0.49 | 2017-07-23 01:30:37 | 2017-07-23 05:15:00 | n |
| 117902 | IIEES | SNGE | E | 1.3 | 0.63 | 2017-07-23 01:30:47 | 2017-07-23 05:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2017-07-23 01:28:14 | 0.09 | y | 139 | 181 | |||
| IIEES | GHIR | Z | Pn | E | 2017-07-23 01:28:30 | -0.43 | y | 259 | 141 | |||
| IIEES | GHIR | N | Sg | E | 2017-07-23 01:29:04 | 0.19 | y | 259 | 141 | |||
| IIEES | NASN | Z | Pn | E | 2017-07-23 01:28:39 | -0.11 | y | 329 | 25 | |||
| IIEES | YZKH | Z | Pn | E | 2017-07-23 01:28:48 | 0.14 | y | 400 | 50 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-07-23 01:28:51 | 0.21 | y | 422 | 343 | |||
| IIEES | SNGE | Z | P | E | 2017-07-23 01:29:21 | -0.06 | y | 666 | 327 | |||
