Magnitude |
:2.8 |
| Date & Time (UTC) | 2017-07-26 04:18:30.4 |
| Date & Time (Local) | 1396/5/4 08:48:30.4 |

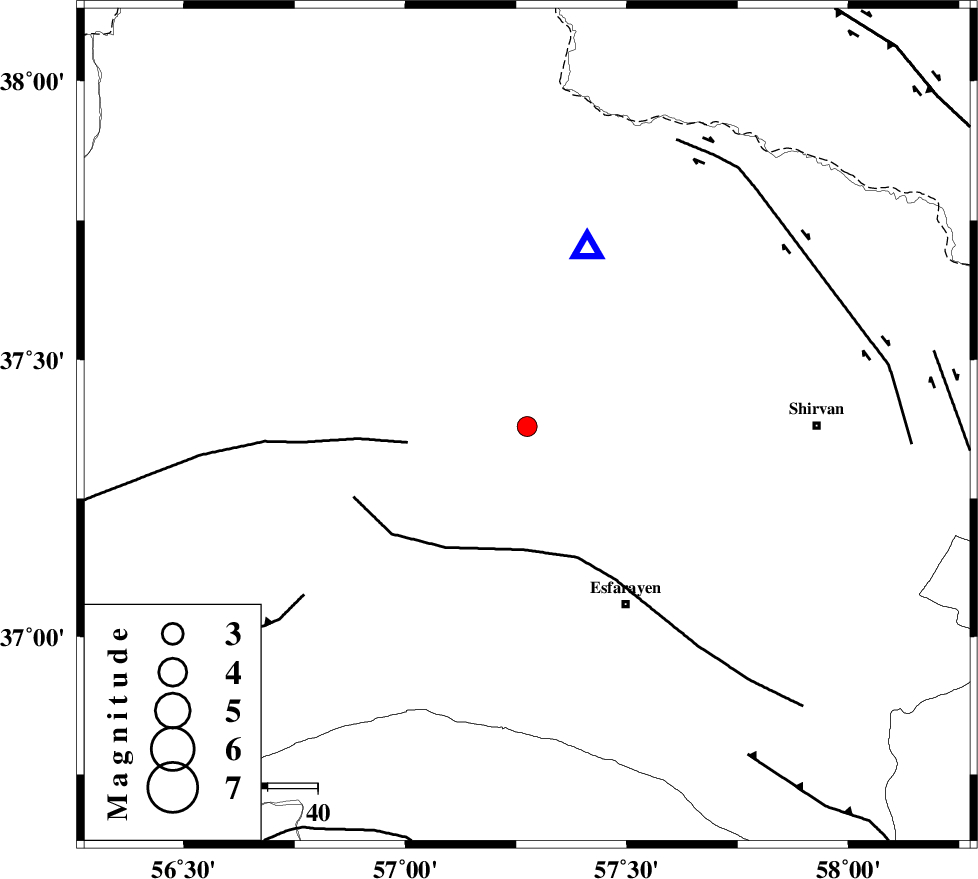

| Location | Lat:37.38 Lon: 57.275 |
| Region | Khorasan(north) Province, 11 km of Bojnurd |
Nearest Cities |
|
| 11 km of Void, Khorasan(north) Province | |
| 11 km of Bojnurd, Khorasan(north) Province | |
| 24 km South West of Hesar-egarmkhanh, Khorasan(north) Province | |
| 30 km North of Cheharborj, Khorasan(north) Province | |
| 32 km North West of Eraj, Khorasan(north) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 24 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 25 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 56 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118060 | IIEES | BJRD | E | 1980 | 0.21 | 2017-07-26 04:18:43 | 2017-07-26 10:53:00 | n |
| 118061 | IIEES | BJRD | N | 1634.9 | 0.3 | 2017-07-26 04:18:43 | 2017-07-26 10:53:00 | n |
| 118062 | IIEES | MRVT | E | 174.9 | 0.19 | 2017-07-26 04:19:04 | 2017-07-26 10:53:00 | n |
| 118063 | IIEES | MRVT | N | 195.4 | 0.52 | 2017-07-26 04:19:05 | 2017-07-26 10:53:00 | n |
| 118064 | IIEES | SHRO | E | 58.1 | 0.48 | 2017-07-26 04:19:27 | 2017-07-26 10:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2017-07-26 04:18:37 | -0.07 | y | 37.4 | 18 | |||
| IIEES | BJRD | N | Sg | E | 2017-07-26 04:18:42 | 0.06 | y | 37.4 | 18 | |||
| IIEES | MRVT | Z | Pg | E | 2017-07-26 04:18:48 | 0.02 | y | 109 | 287 | |||
| IIEES | SHRO | Z | Pg | E | 2017-07-26 04:19:01 | -0.16 | y | 189 | 217 | |||
| IIEES | SHRO | N | Sg | E | 2017-07-26 04:19:24 | 0.09 | y | 189 | 217 | |||
| IIEES | BSRN | Z | Pn | E | 2017-07-26 04:19:55 | 0.1 | y | 624 | 164 | |||
