Magnitude |
:3.6 |
| Date & Time (UTC) | 2017-08-06 09:24:39.6 |
| Date & Time (Local) | 1396/5/15 13:54:39.6 |

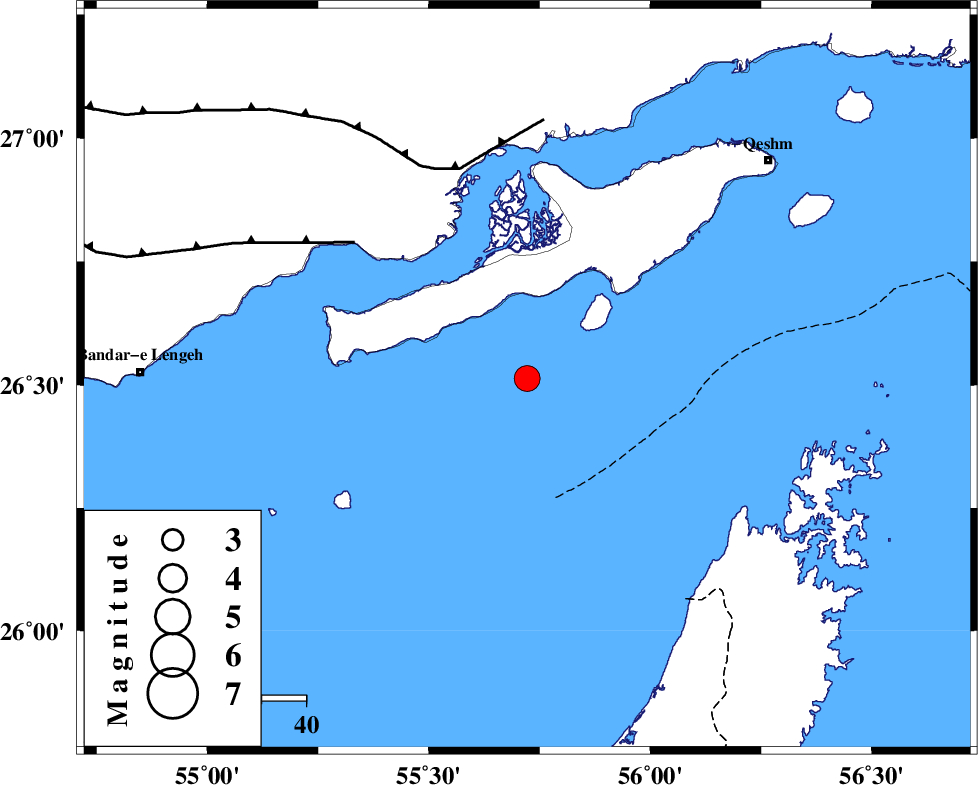

| Location | Lat:26.513 Lon: 55.722 |
| Region | Persian Gulf, 87 km -East of Bandar-e lengeh |
Nearest Cities |
|
| 44 km South West of Suza, Hormozgan Province | |
| 50 km South East of Bandar-e khamir, Hormozgan Province | |
| 73 km South West of Qeshm, Hormozgan Province | |
| 87 km East of Bandar-e lengeh, Hormozgan Province | |
| 93 km South West of Bandar-e abbas, Hormozgan Province | |
| Depth | 23 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 49 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 50 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 141 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118328 | IIEES | BNDS | E | 1440.8 | 0.68 | 2017-08-06 09:25:22 | 2017-08-07 04:27:00 | n |
| 118329 | IIEES | BNDS | N | 1000 | 0.6 | 2017-08-06 09:25:26 | 2017-08-07 04:27:00 | n |
| 118330 | IIEES | GHIR | N | 144 | 0.5 | 2017-08-06 09:26:23 | 2017-08-07 04:27:00 | n |
| 118331 | IIEES | GHIR | E | 136 | 0.58 | 2017-08-06 09:26:38 | 2017-08-07 04:27:00 | n |
| 118332 | IIEES | KRBR | E | 78.2 | 0.41 | 2017-08-06 09:26:24 | 2017-08-07 04:27:00 | n |
| 118333 | IIEES | KRBR | N | 117.8 | 0.27 | 2017-08-06 09:26:29 | 2017-08-07 04:27:00 | n |
| 118334 | IIEES | AHRM | N | 43.4 | 0.63 | 2017-08-06 09:26:41 | 2017-08-07 04:27:00 | n |
| 118335 | IIEES | AHRM | E | 30.4 | 0.38 | 2017-08-06 09:27:08 | 2017-08-07 04:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-08-06 09:24:57 | -0.08 | y | 108 | 24 | |||
| IIEES | BNDS | E | Sg | E | 2017-08-06 09:25:11 | 0.06 | y | 108 | 24 | |||
| IIEES | GHIR | Z | Pn | E | 2017-08-06 09:25:28 | 0.17 | y | 334 | 307 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-06 09:25:36 | -0.04 | y | 398 | 15 | |||
| IIEES | AHRM | Z | Pn | E | 2017-08-06 09:25:49 | 0.02 | y | 508 | 302 | |||
| IIEES | YZKH | Z | Pn | E | 2017-08-06 09:26:08 | -0.04 | y | 661 | 351 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-06 09:26:12 | 0.21 | y | 689 | 28 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-06 09:26:19 | -0.21 | y | 752 | 339 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-06 09:26:26 | -0.09 | y | 803 | 9 | |||
| IIEES | ASAO | Z | Pn | E | 2017-08-06 09:26:56 | -0.46 | y | 1045 | 330 | |||
