Magnitude |
:4.1 |
| Date & Time (UTC) | 2017-08-10 10:24:56.0 |
| Date & Time (Local) | 1396/5/19 14:54:56.0 |

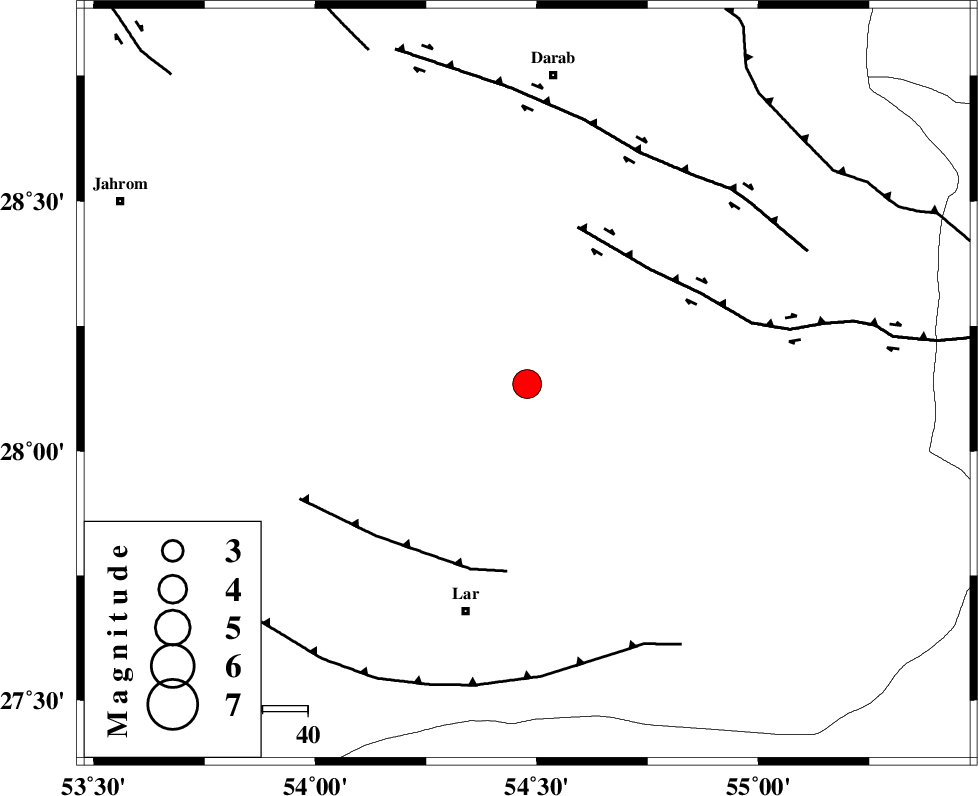

| Location | Lat:28.134 Lon: 54.478 |
| Region | Fars Province, 52 km North-East of Lar |
Nearest Cities |
|
| 24 km South East of Shahr-e pir, Fars Province | |
| 26 km South of Hajiabad, Fars Province | |
| 32 km North of Dehkuyeh, Fars Province | |
| 41 km South East of Dabiran, Fars Province | |
| 49 km North of Latifi, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 37 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 42 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 57 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >6 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118480 | IIEES | GHIR | N | 3186.7 | 0.4 | 2017-08-10 10:25:46 | 2017-08-12 08:31:00 | n |
| 118481 | IIEES | GHIR | E | 3287.5 | 0.52 | 2017-08-10 10:25:47 | 2017-08-12 08:31:00 | n |
| 118482 | IIEES | BNDS | E | 1020.7 | 0.46 | 2017-08-10 10:25:58 | 2017-08-12 08:31:00 | n |
| 118483 | IIEES | BNDS | N | 1256.6 | 0.4 | 2017-08-10 10:26:05 | 2017-08-12 08:31:00 | n |
| 118484 | IIEES | KRBR | E | 1094.2 | 0.67 | 2017-08-10 10:26:33 | 2017-08-12 08:31:00 | n |
| 118485 | IIEES | KRBR | N | 798.4 | 0.54 | 2017-08-10 10:26:36 | 2017-08-12 08:31:00 | n |
| 118486 | IIEES | AHRM | N | 375.6 | 0.49 | 2017-08-10 10:26:52 | 2017-08-12 08:31:00 | n |
| 118487 | IIEES | NASN | E | 72 | 0.27 | 2017-08-10 10:27:09 | 2017-08-12 08:31:00 | n |
| 118488 | IIEES | BSRN | N | 44.8 | 0.79 | 2017-08-10 10:28:07 | 2017-08-12 08:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2017-08-10 10:25:20 | 0.15 | y | 147 | 277 | |||
| IIEES | BNDS | Z | Pg | E | 2017-08-10 10:25:26 | -0.15 | y | 186 | 116 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-10 10:25:41 | 0.56 | y | 302 | 47 | |||
| IIEES | AHRM | Z | Pn | E | 2017-08-10 10:25:43 | 0.21 | y | 322 | 285 | |||
| IIEES | YZKH | Z | Pn | E | 2017-08-10 10:26:02 | 0.05 | y | 472 | 1 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-10 10:26:10 | -0.15 | y | 541 | 343 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-10 10:26:20 | 0.01 | y | 617 | 45 | |||
| IIEES | CHBR | Z | Pn | E | 2017-08-10 10:26:25 | -0.22 | y | 659 | 114 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-10 10:26:25 | 0.31 | y | 662 | 22 | |||
| IIEES | GHVR | Z | P | E | 2017-08-10 10:26:38 | -0.23 | y | 768 | 337 | |||
| IIEES | SHRT | Z | Pn | E | 2017-08-10 10:26:46 | 0.02 | y | 826 | 41 | |||
| IIEES | ASAO | Z | Pn | E | 2017-08-10 10:26:45 | -1.08 | y | 828 | 330 | |||
| IIEES | SHRO | Z | Pn | E | 2017-08-10 10:26:52 | -0.74 | y | 885 | 9 | |||
| IIEES | MRVT | Z | P | E | 2017-08-10 10:27:15 | -0.29 | y | 1067 | 8 | |||
