Magnitude |
:4 |
| Date & Time (UTC) | 2017-08-13 09:34:44.0 |
| Date & Time (Local) | 1396/5/22 14:04:44.0 |

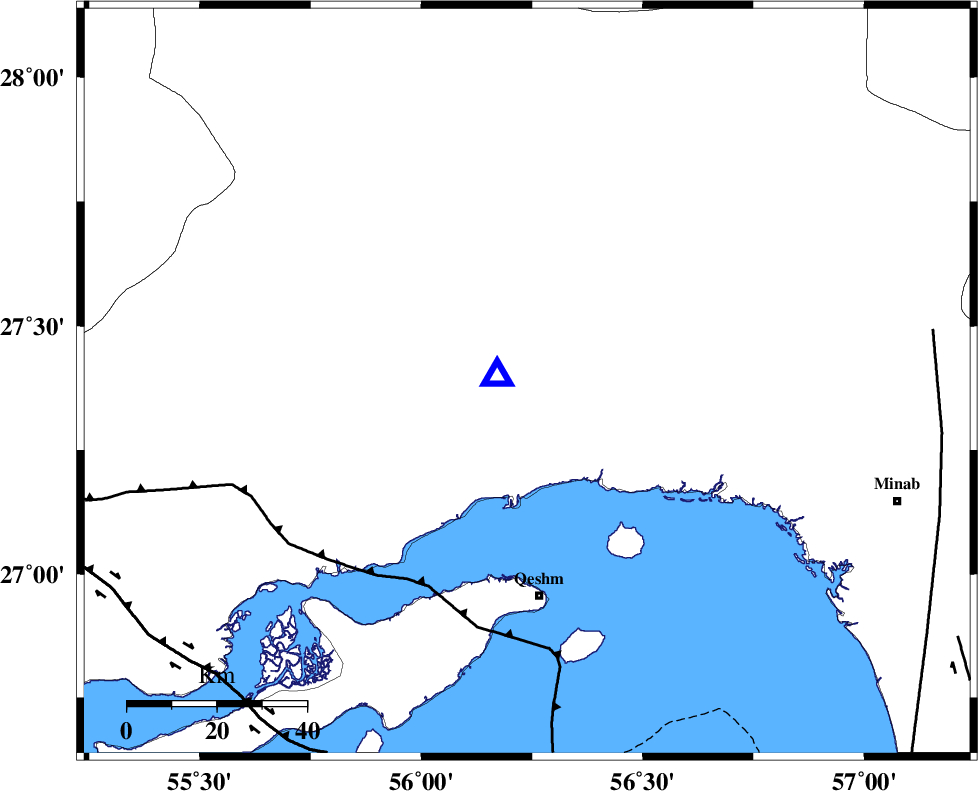

| Location | Lat:27.388 Lon: 56.239 |
| Region | Hormozgan Province, 23 km North of Bandar-e abbas |
Nearest Cities |
|
| 23 km North of Bandar-e abbas, Hormozgan Province | |
| 43 km South East of Fin, Hormozgan Province | |
| 48 km North of Qeshm, Hormozgan Province | |
| 70 km South of Fareqan, Hormozgan Province | |
| 70 km North East of Suza, Hormozgan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 41 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 61 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 70 km | |
| Number of Phases | 12 |
| RMS | 0.7 |
| Number of Stations | 12 |
| Error in Latitude | >9.1 km |
| Error in Longitude | 7.4 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118513 | IIEES | BNDS | E | 285000 | 0.2 | 2017-08-13 09:34:47 | 2017-08-13 10:12:00 | n |
| 118514 | IIEES | BNDS | N | 223000 | 0.42 | 2017-08-13 09:34:48 | 2017-08-13 10:12:00 | n |
| 118515 | IIEES | KRBR | E | 510.5 | 0.55 | 2017-08-13 09:36:09 | 2017-08-13 10:12:00 | n |
| 118516 | IIEES | KRBR | N | 387.8 | 0.68 | 2017-08-13 09:36:12 | 2017-08-13 10:12:00 | n |
| 118517 | IIEES | GHIR | N | 209.3 | 0.65 | 2017-08-13 09:36:34 | 2017-08-13 10:12:00 | n |
| 118518 | IIEES | GHIR | E | 203.7 | 0.28 | 2017-08-13 09:36:51 | 2017-08-13 10:12:00 | n |
| 118519 | IIEES | AHRM | N | 52.3 | 0.67 | 2017-08-13 09:37:30 | 2017-08-13 10:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-08-13 09:34:45 | -0.22 | y | 6.86 | 281 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-13 09:35:29 | 0.35 | y | 292 | 10 | |||
| IIEES | GHIR | Z | Pn | E | 2017-08-13 09:35:34 | 0.5 | y | 336 | 288 | |||
| IIEES | CHBR | Z | Pn | E | 2017-08-13 09:35:50 | -0.14 | y | 467 | 114 | |||
| IIEES | AHRM | Z | Pn | E | 2017-08-13 09:35:56 | 0.51 | y | 512 | 290 | |||
| IIEES | YZKH | Z | Pn | E | 2017-08-13 09:36:04 | -0.25 | y | 577 | 344 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-13 09:36:04 | 0.25 | y | 579 | 28 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-13 09:36:20 | 0.79 | y | 699 | 7 | |||
| IIEES | SHRT | Z | Pn | E | 2017-08-13 09:36:30 | -0.6 | y | 795 | 28 | |||
| IIEES | GHVR | Z | Pn | E | 2017-08-13 09:36:46 | -0.58 | y | 920 | 330 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-08-13 09:36:45 | -2.24 | y | 926 | 321 | |||
| IIEES | ASAO | Z | Pn | E | 2017-08-13 09:36:54 | -1.04 | y | 991 | 325 | |||
