Magnitude |
:2.6 |
| Date & Time (UTC) | 2017-08-13 09:28:46.3 |
| Date & Time (Local) | 1396/5/22 13:58:46.3 |

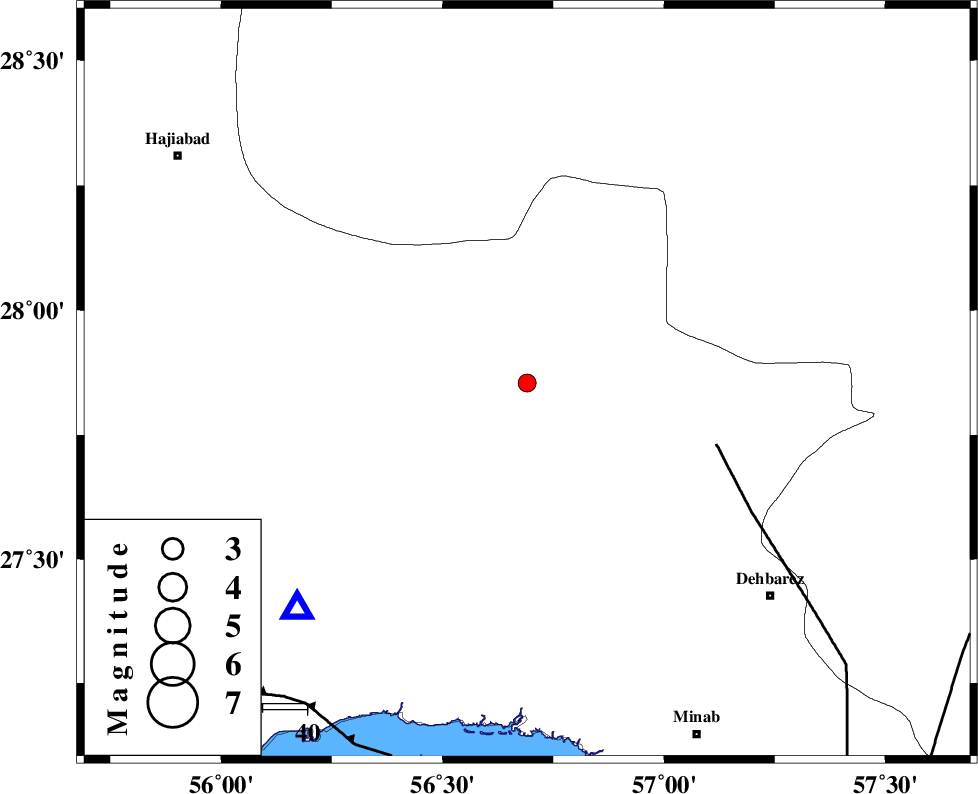

| Location | Lat:27.854 Lon: 56.691 |
| Region | Hormozgan Province, 72 km North-West of Dehbarez |
Nearest Cities |
|
| 48 km South East of Fareqan, Hormozgan Province | |
| 54 km North West of Ziaratali, Hormozgan Province | |
| 57 km South West of Sarkhan, Kerman Province | |
| 58 km North West of Fariab, Hormozgan Province | |
| 62 km South West of Faryab, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 16 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 24 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 35 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 7.4 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118520 | IIEES | BNDS | N | 423.5 | 0.33 | 2017-08-13 09:29:12 | 2017-08-13 10:27:00 | n |
| 118521 | IIEES | BNDS | E | 262.4 | 0.26 | 2017-08-13 09:29:15 | 2017-08-13 10:27:00 | n |
| 118522 | IIEES | KRBR | N | 35.4 | 0.52 | 2017-08-13 09:29:57 | 2017-08-13 10:27:00 | n |
| 118523 | IIEES | KRBR | E | 34.5 | 0.35 | 2017-08-13 09:30:07 | 2017-08-13 10:27:00 | n |
| 118524 | IIEES | GHIR | N | 13.5 | 0.4 | 2017-08-13 09:30:36 | 2017-08-13 10:27:00 | n |
| 118525 | IIEES | GHIR | E | 10.9 | 0.4 | 2017-08-13 09:30:53 | 2017-08-13 10:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-08-13 09:28:58 | -0.08 | y | 71.9 | 226 | |||
| IIEES | BNDS | N | Sg | E | 2017-08-13 09:29:08 | -0.05 | y | 71.9 | 226 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-13 09:29:23 | 0.1 | y | 236 | 2 | |||
| IIEES | KRBR | N | Sg | E | 2017-08-13 09:29:53 | -0.15 | y | 236 | 2 | |||
| IIEES | GHIR | Z | Pn | E | 2017-08-13 09:29:39 | 0.21 | y | 367 | 278 | |||
