Magnitude |
:2.6 |
| Date & Time (UTC) | 2017-08-13 10:17:32.8 |
| Date & Time (Local) | 1396/5/22 14:47:32.8 |

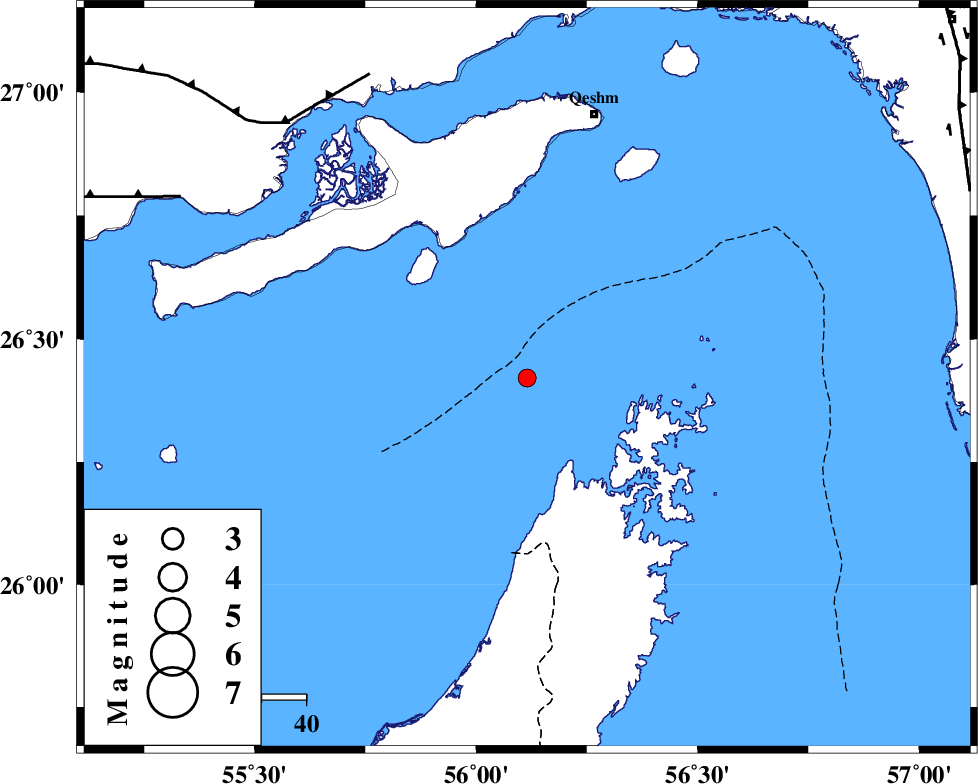

| Location | Lat:26.421 Lon: 56.115 |
| Region | Persian Gulf, 61 km South-West of Qeshm |
Nearest Cities |
|
| 40 km South of Suza, Hormozgan Province | |
| 61 km South West of Qeshm, Hormozgan Province | |
| 79 km South East of Bandar-e khamir, Hormozgan Province | |
| 86 km South West of Bandar-e abbas, Hormozgan Province | |
| 99 km West of Bandar-e sirk, Hormozgan Province | |
| Depth | 20 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 77 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 88 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 105 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 7.6 km |
| Error in Depth | 2.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118526 | IIEES | BNDS | E | 144.6 | 0.46 | 2017-08-13 10:18:11 | 2017-08-13 10:46:00 | n |
| 118527 | IIEES | BNDS | N | 197.5 | 0.71 | 2017-08-13 10:18:11 | 2017-08-13 10:46:00 | n |
| 118528 | IIEES | KRBR | E | 9.5 | 0.46 | 2017-08-13 10:19:32 | 2017-08-13 10:46:00 | n |
| 118529 | IIEES | KRBR | N | 9.5 | 0.55 | 2017-08-13 10:19:38 | 2017-08-13 10:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-08-13 10:17:50 | -0.03 | y | 109 | 3 | |||
| IIEES | BNDS | E | Sg | E | 2017-08-13 10:18:04 | 0.02 | y | 109 | 3 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-13 10:18:29 | 0.04 | y | 400 | 9 | |||
| IIEES | KRBR | N | S | E | 2017-08-13 10:19:11 | -0.02 | y | 400 | 9 | |||
| IIEES | CHBR | Z | Pn | E | 2017-08-13 10:18:35 | 0 | y | 447 | 101 | |||
