Magnitude |
:3.3 |
| Date & Time (UTC) | 2017-08-19 23:45:19.8 |
| Date & Time (Local) | 1396/5/29 04:15:19.8 |

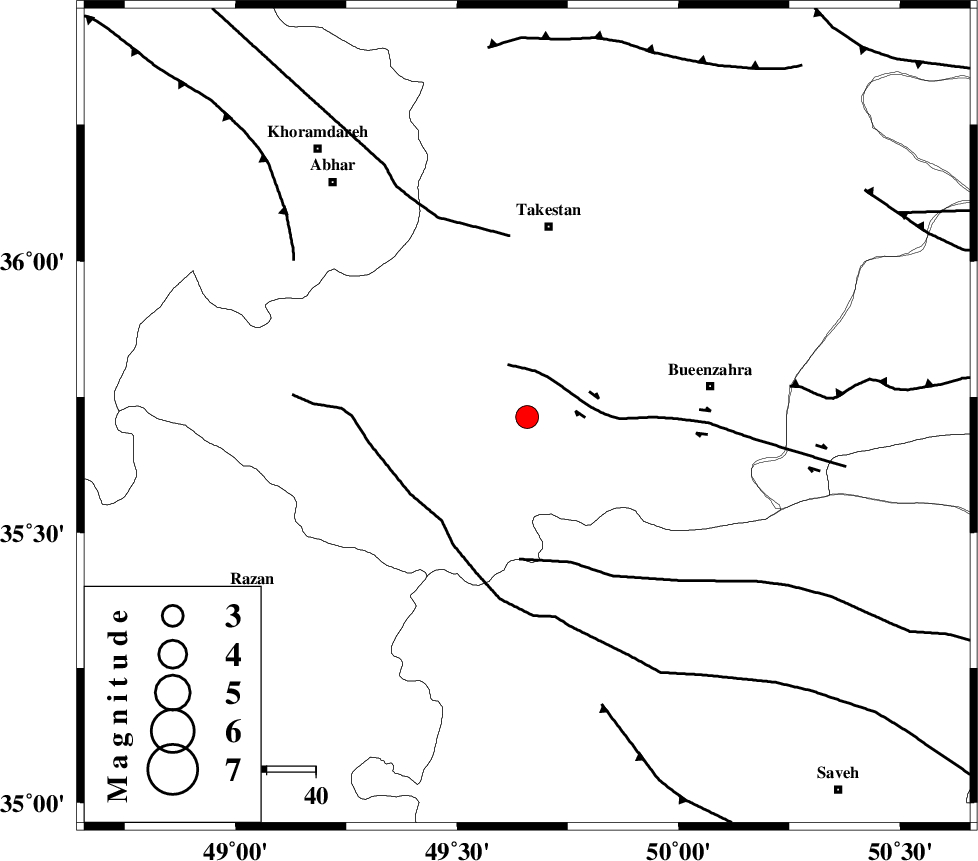

| Location | Lat:35.713 Lon: 49.658 |
| Region | Ghazvin Province, 39 km South of Takestan |
Nearest Cities |
|
| 11 km of Danesfahan, Ghazvin Province | |
| 20 km North East of Kolanjin, Ghazvin Province | |
| 23 km South West of Shal, Ghazvin Province | |
| 26 km South of Esfarvin, Ghazvin Province | |
| 26 km West of Sagezabad, Ghazvin Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| IPAK_F (Length: 80 km) , Distance to epicenter: 9 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 27 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 29 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118634 | IIEES | THKV | N | 596.9 | 0.23 | 2017-08-19 23:45:54 | 2017-08-20 04:53:00 | n |
| 118635 | IIEES | THKV | E | 531.1 | 0.29 | 2017-08-19 23:45:54 | 2017-08-20 04:53:00 | n |
| 118636 | IIEES | CHTH | N | 352 | 0.34 | 2017-08-19 23:46:05 | 2017-08-20 04:53:00 | n |
| 118637 | IIEES | GIDE | E | 368.4 | 0.25 | 2017-08-19 23:46:09 | 2017-08-20 04:53:00 | n |
| 118638 | IIEES | GIDE | N | 638.2 | 0.63 | 2017-08-19 23:46:10 | 2017-08-20 04:53:00 | n |
| 118639 | IIEES | GHVR | N | 362.1 | 0.45 | 2017-08-19 23:46:17 | 2017-08-20 04:53:00 | n |
| 118640 | IIEES | GHVR | E | 334.1 | 0.45 | 2017-08-19 23:46:18 | 2017-08-20 04:53:00 | n |
| 118641 | IIEES | DAMV | N | 321.9 | 0.29 | 2017-08-19 23:46:22 | 2017-08-20 04:53:00 | n |
| 118642 | IIEES | DAMV | E | 362.2 | 0.29 | 2017-08-19 23:46:23 | 2017-08-20 04:53:00 | n |
| 118643 | IIEES | SNGE | N | 174.6 | 0.48 | 2017-08-19 23:46:24 | 2017-08-20 04:53:00 | n |
| 118644 | IIEES | SNGE | E | 127.2 | 0.59 | 2017-08-19 23:46:25 | 2017-08-20 04:53:00 | n |
| 118645 | IIEES | YZKH | N | 9.2 | 0.55 | 2017-08-19 23:48:13 | 2017-08-20 04:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | THKV | Z | Pg | E | 2017-08-19 23:45:38 | 0.11 | y | 113 | 78 | |||
| IIEES | ASAO | Z | Pg | E | 2017-08-19 23:45:42 | -0.21 | y | 133 | 165 | |||
| IIEES | CHTH | Z | Pg | E | 2017-08-19 23:45:42 | -0.36 | y | 134 | 80 | |||
| IIEES | GIDE | Z | Pg | E | 2017-08-19 23:45:42 | -0.24 | y | 136 | 10 | |||
| IIEES | ZNJK | Z | Pg | E | 2017-08-19 23:45:42 | -0.57 | y | 138 | 321 | |||
| IIEES | GHVR | Z | Pn | E | 2017-08-19 23:45:52 | -0.08 | y | 199 | 133 | |||
| IIEES | DAMV | Z | Pn | E | 2017-08-19 23:45:53 | 0.18 | y | 210 | 92 | |||
| IIEES | SNGE | Z | Pn | E | 2017-08-19 23:45:55 | 0.42 | y | 221 | 253 | |||
| IIEES | GRMI | Z | Pn | E | 2017-08-19 23:46:14 | 0.48 | y | 378 | 336 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-19 23:46:21 | -0.4 | y | 434 | 137 | |||
| IIEES | SHRO | Z | Pn | E | 2017-08-19 23:46:52 | 13.67 | n | 4 | 575 | 85 | ||
| IIEES | YZKH | Z | Pn | E | 2017-08-19 23:46:40 | -0.18 | y | 586 | 128 | |||
| IIEES | MRVT | Z | Pn | E | 2017-08-19 23:46:44 | 0.83 | y | 614 | 68 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-19 23:46:57 | 0.72 | y | 721 | 106 | |||
