Magnitude |
:2.9 |
| Date & Time (UTC) | 2017-08-20 02:08:17.1 |
| Date & Time (Local) | 1396/5/29 06:38:17.1 |

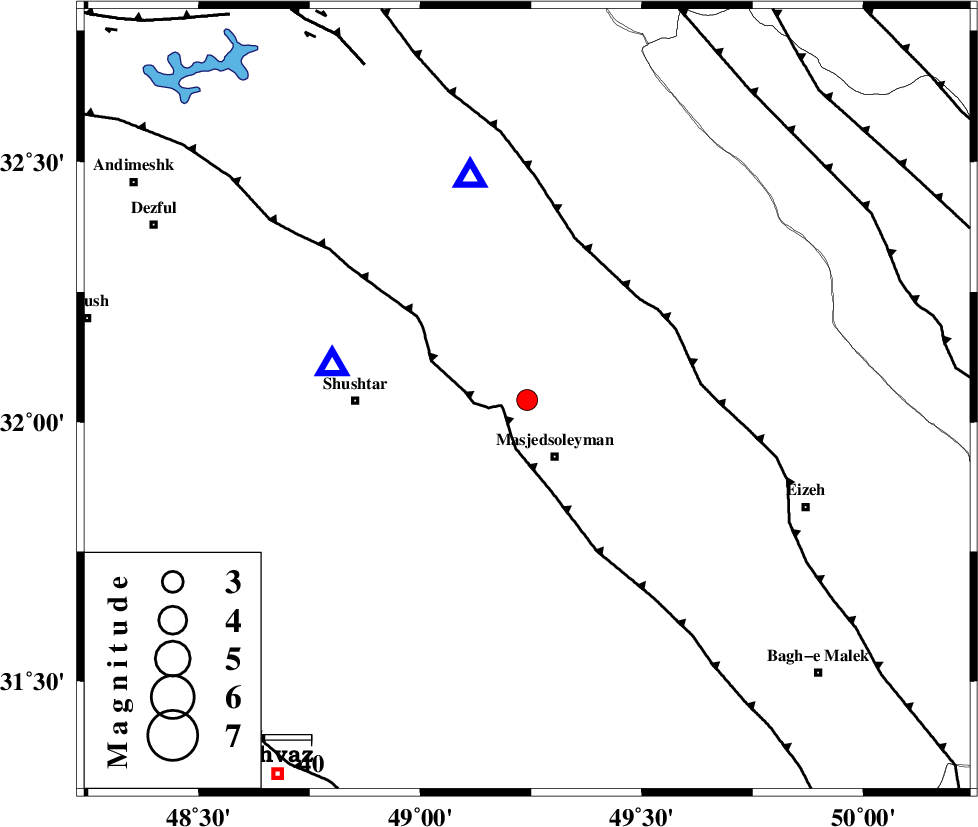

| Location | Lat:32.042 Lon: 49.241 |
| Region | Khoozestan Province, 13 km North of Masjed Soleyman |
Nearest Cities |
|
| 13 km North of Masjed Soleyman, Khoozestan Province | |
| 19 km East of Haft shahidan, Khoozestan Province | |
| 26 km South West of Qale-yekhvaju, Khoozestan Province | |
| 28 km South East of Jaefarabad, Khoozestan Province | |
| 37 km North East of Shushtar, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 5 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 32 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 79 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >9.2 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118659 | IIEES | KHMZ | E | 115.6 | 0.37 | 2017-08-20 02:09:21 | 2017-08-20 04:53:00 | n |
| 118660 | IIEES | KHMZ | N | 74.2 | 0.24 | 2017-08-20 02:09:22 | 2017-08-20 04:53:00 | n |
| 118661 | IIEES | GHVR | N | 36.9 | 0.77 | 2017-08-20 02:09:58 | 2017-08-20 04:53:00 | n |
| 118662 | IIEES | GHVR | E | 32.2 | 0.6 | 2017-08-20 02:10:00 | 2017-08-20 04:53:00 | n |
| 118663 | IIEES | DAMV | N | 8.6 | 0.74 | 2017-08-20 02:10:38 | 2017-08-20 04:53:00 | n |
| 118664 | IIEES | DAMV | E | 10.1 | 0.74 | 2017-08-20 02:10:45 | 2017-08-20 04:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-08-20 02:08:49 | 0.17 | y | 200 | 20 | |||
| IIEES | ASAO | Z | Pn | E | 2017-08-20 02:09:00 | 0.28 | y | 287 | 15 | |||
| IIEES | GHVR | Z | Pn | E | 2017-08-20 02:09:05 | -0.14 | y | 329 | 34 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-20 02:09:08 | 0.08 | y | 346 | 75 | |||
| IIEES | SNGE | Z | Pn | E | 2017-08-20 02:09:12 | -0.16 | y | 381 | 333 | |||
| IIEES | CHTH | Z | Pn | E | 2017-08-20 02:09:22 | -0.43 | y | 463 | 22 | |||
| IIEES | DAMV | Z | Pn | E | 2017-08-20 02:09:23 | -0.14 | y | 471 | 32 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-08-20 02:09:29 | 0.24 | y | 516 | 354 | |||
