Magnitude |
:3.2 |
| Date & Time (UTC) | 2017-08-20 02:08:22.2 |
| Date & Time (Local) | 1396/5/29 06:38:22.2 |
| Location | Lat:27.444 Lon: 57.286 |
| Region | Hormozgan Province, 5 km of Dehbarez |
Nearest Cities |
|
| 5 km North of Dehbarez, Hormozgan Province | |
| 8 km North of Balashahr, Hormozgan Province | |
| 19 km West of Nodezh, Kerman Province | |
| 21 km North West of Manujan, Kerman Province | |
| 24 km South West of Bejogan, Kerman Province | |
| Depth | 18 km |
| Agency | |

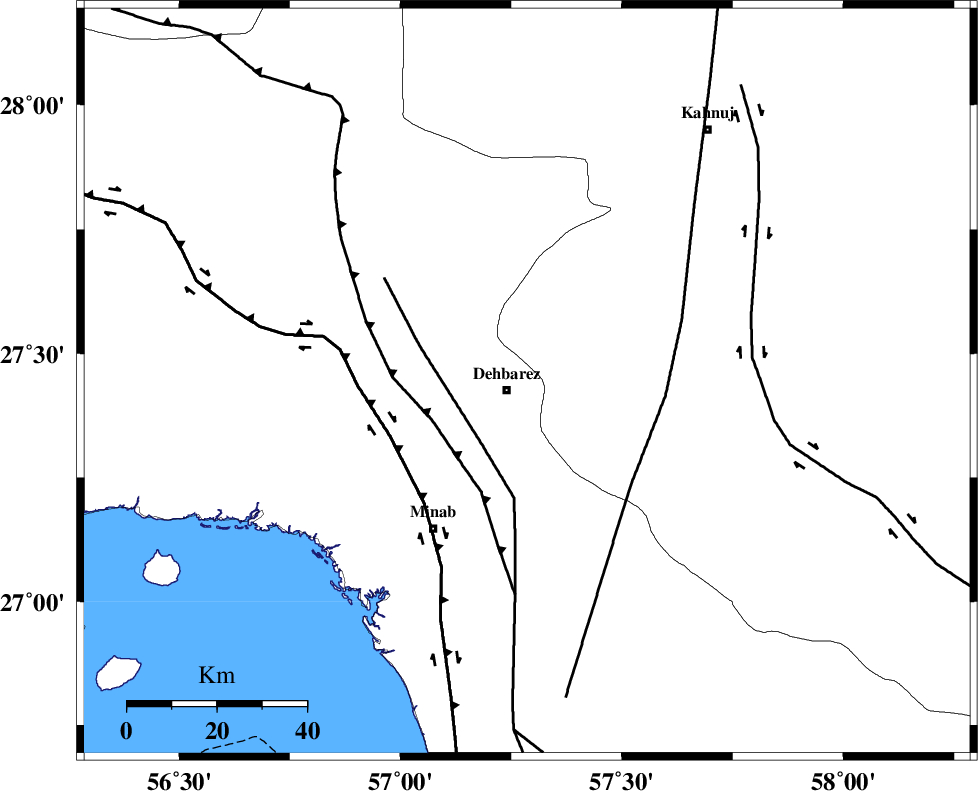

Faults within 150 km: |
|
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 17 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 23 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 31 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118697 | IIEES | BNDS | N | 871.4 | 0.46 | 2017-08-20 02:08:58 | 2017-08-21 05:27:00 | n |
| 118698 | IIEES | BNDS | E | 1159.3 | 0.38 | 2017-08-20 02:08:58 | 2017-08-21 05:27:00 | n |
| 118699 | IIEES | KRBR | N | 62.5 | 0.25 | 2017-08-20 02:09:44 | 2017-08-21 05:27:00 | n |
| 118700 | IIEES | KRBR | E | 68.1 | 0.34 | 2017-08-20 02:09:46 | 2017-08-21 05:27:00 | n |
| 118701 | IIEES | GHIR | N | 17.4 | 0.7 | 2017-08-20 02:10:40 | 2017-08-21 05:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-08-20 02:08:41 | 0.1 | y | 110 | 268 | |||
| IIEES | BNDS | N | Sg | E | 2017-08-20 02:08:54 | -0.06 | y | 110 | 268 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-20 02:09:05 | -0.09 | y | 286 | 350 | |||
| IIEES | KRBR | N | S | E | 2017-08-20 02:09:36 | 0.06 | y | 286 | 350 | |||
| IIEES | CHBR | Z | Pn | E | 2017-08-20 02:09:16 | 0 | y | 379 | 122 | |||
| IIEES | GHIR | Z | Pn | E | 2017-08-20 02:09:23 | -0.01 | y | 434 | 283 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-20 02:09:35 | 0 | y | 532 | 19 | |||
