Magnitude |
:2.8 |
| Date & Time (UTC) | 2017-08-17 13:26:22.4 |
| Date & Time (Local) | 1396/5/26 17:56:22.4 |

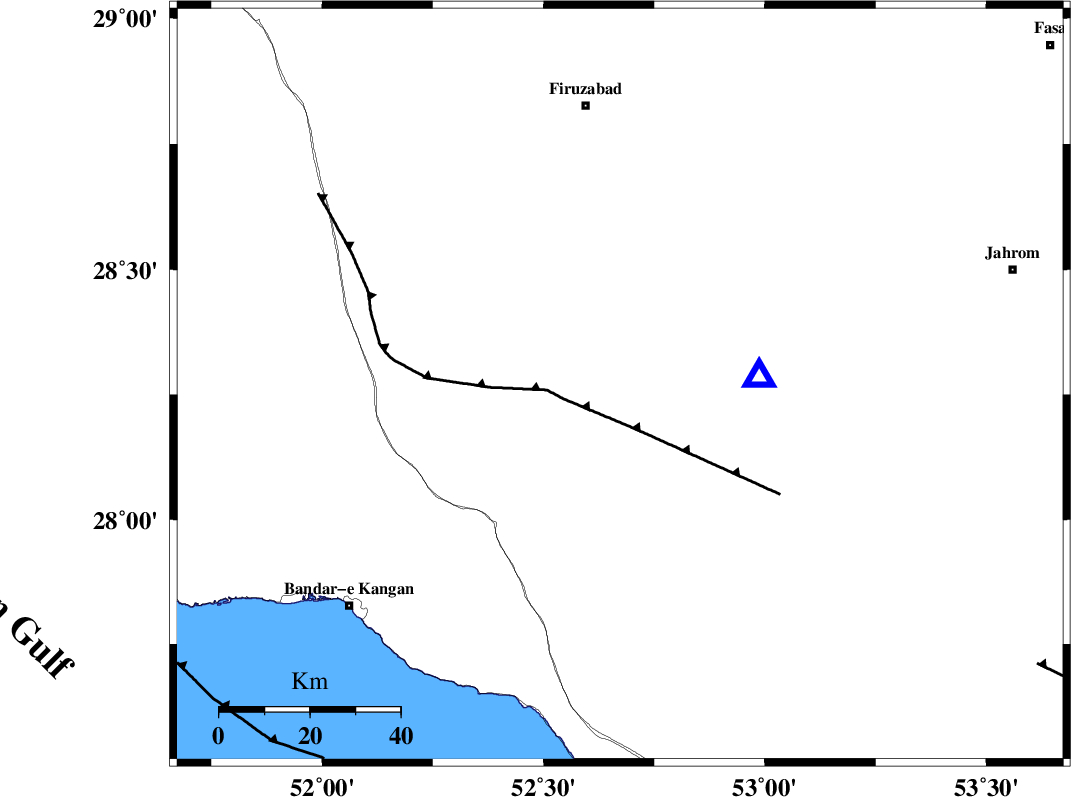

| Location | Lat:28.27 Lon: 52.673 |
| Region | Fars Province, 41 km South-West of Qir va Karzin |
Nearest Cities |
|
| 11 km of Hengam, Fars Province | |
| 30 km North of Garmesht, Fars Province | |
| 40 km North East of Dolatabad, Fars Province | |
| 41 km South West of Qir va Karzin, Fars Province | |
| 42 km South West of Shahrak-e jonubi, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 21 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 49 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 59 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >8.5 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118706 | IIEES | GHIR | N | 1815.5 | 0.26 | 2017-08-17 13:26:37 | 2017-08-21 06:43:00 | n |
| 118707 | IIEES | GHIR | E | 1776.5 | 0.42 | 2017-08-17 13:26:41 | 2017-08-21 06:43:00 | n |
| 118708 | IIEES | AHRM | N | 216.2 | 0.51 | 2017-08-17 13:27:11 | 2017-08-21 06:43:00 | n |
| 118709 | IIEES | AHRM | E | 92.6 | 0.32 | 2017-08-17 13:27:18 | 2017-08-21 06:43:00 | n |
| 118710 | IIEES | BNDS | N | 12.1 | 0.38 | 2017-08-17 13:28:25 | 2017-08-21 06:43:00 | n |
| 118711 | IIEES | KRBR | N | 8.2 | 0.42 | 2017-08-17 13:28:39 | 2017-08-21 06:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2017-08-17 13:26:28 | -0.36 | y | 30.8 | 87 | |||
| IIEES | AHRM | Z | Pg | E | 2017-08-17 13:26:47 | -0.16 | y | 150 | 296 | |||
| IIEES | AHRM | N | Sg | E | 2017-08-17 13:27:05 | 0.05 | y | 150 | 296 | |||
| IIEES | BNDS | Z | Pn | E | 2017-08-17 13:27:14 | 0.36 | y | 358 | 105 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-17 13:27:42 | 17.36 | n | 4 | 441 | 64 | ||
| IIEES | YZKH | Z | Pn | E | 2017-08-17 13:27:31 | 0.22 | y | 493 | 22 | |||
