Magnitude |
:2.5 |
| Date & Time (UTC) | 2017-08-22 13:46:44.4 |
| Date & Time (Local) | 1396/5/31 18:16:44.4 |
| Location | Lat:31.439 Lon: 56.393 |
| Region | Kerman Province, 44 km North-West of Ravar |
Nearest Cities |
|
| 10 km North East of Kuhbanan, Kerman Province | |
| 13 km North East of Jor, Kerman Province | |
| 30 km South East of Asfih, Yazd Province | |
| 32 km North of Toghroljerd, Kerman Province | |
| 39 km East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |

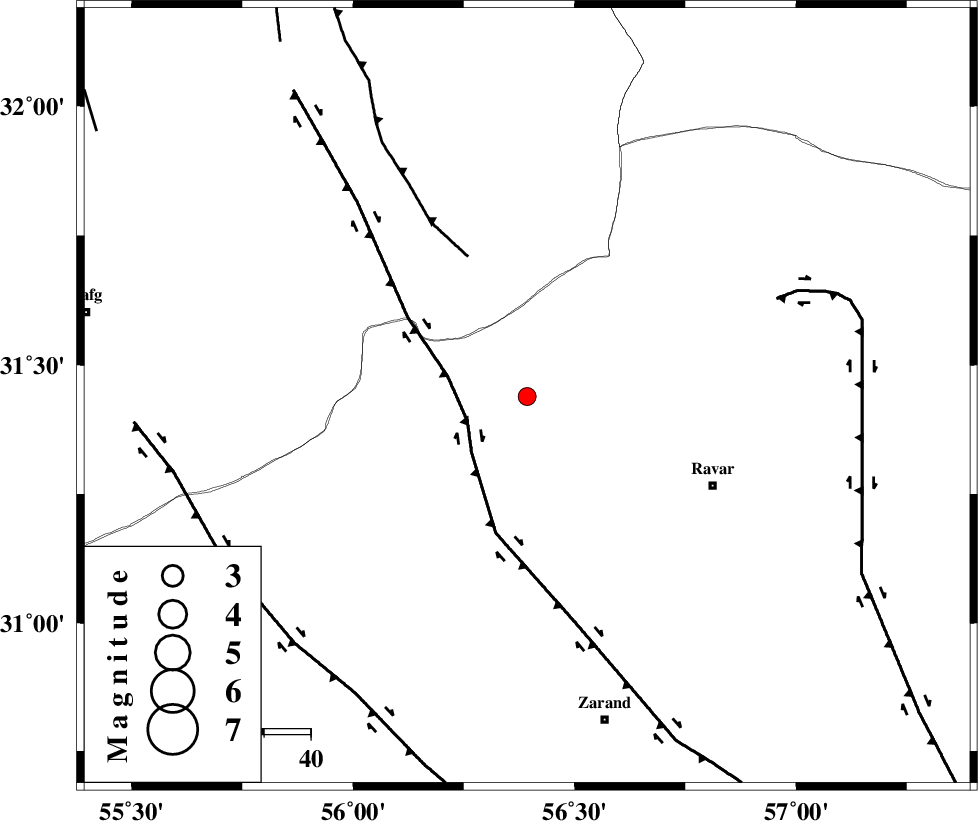

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 14 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 33 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 57 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 7.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118817 | IIEES | KRBR | N | 59.4 | 0.2 | 2017-08-22 13:47:37 | 2017-08-23 05:26:00 | n |
| 118818 | IIEES | KRBR | E | 58.7 | 0.3 | 2017-08-22 13:47:39 | 2017-08-23 05:26:00 | n |
| 118819 | IIEES | YZKH | N | 43.9 | 0.31 | 2017-08-22 13:47:44 | 2017-08-23 05:26:00 | n |
| 118820 | IIEES | YZKH | E | 48 | 0.26 | 2017-08-22 13:47:45 | 2017-08-23 05:26:00 | n |
| 118821 | IIEES | TABS | N | 18 | 0.28 | 2017-08-22 13:48:05 | 2017-08-23 05:26:00 | n |
| 118822 | IIEES | BSRN | E | 13 | 0.62 | 2017-08-22 13:48:09 | 2017-08-23 05:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-08-22 13:47:11 | -0.08 | y | 165 | 168 | |||
| IIEES | KRBR | N | Sg | E | 2017-08-22 13:47:32 | 0.15 | y | 165 | 168 | |||
| IIEES | YZKH | Z | Pn | E | 2017-08-22 13:47:17 | 0 | y | 200 | 302 | |||
| IIEES | YZKH | N | Sg | E | 2017-08-22 13:47:41 | -0.09 | y | 200 | 302 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-22 13:47:24 | 0.39 | y | 254 | 15 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-22 13:47:24 | -0.37 | y | 266 | 77 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-22 13:47:38 | 0 | y | 370 | 295 | |||
