Magnitude |
:3.4 |
| Date & Time (UTC) | 2017-08-23 06:09:43.5 |
| Date & Time (Local) | 1396/6/1 10:39:43.5 |

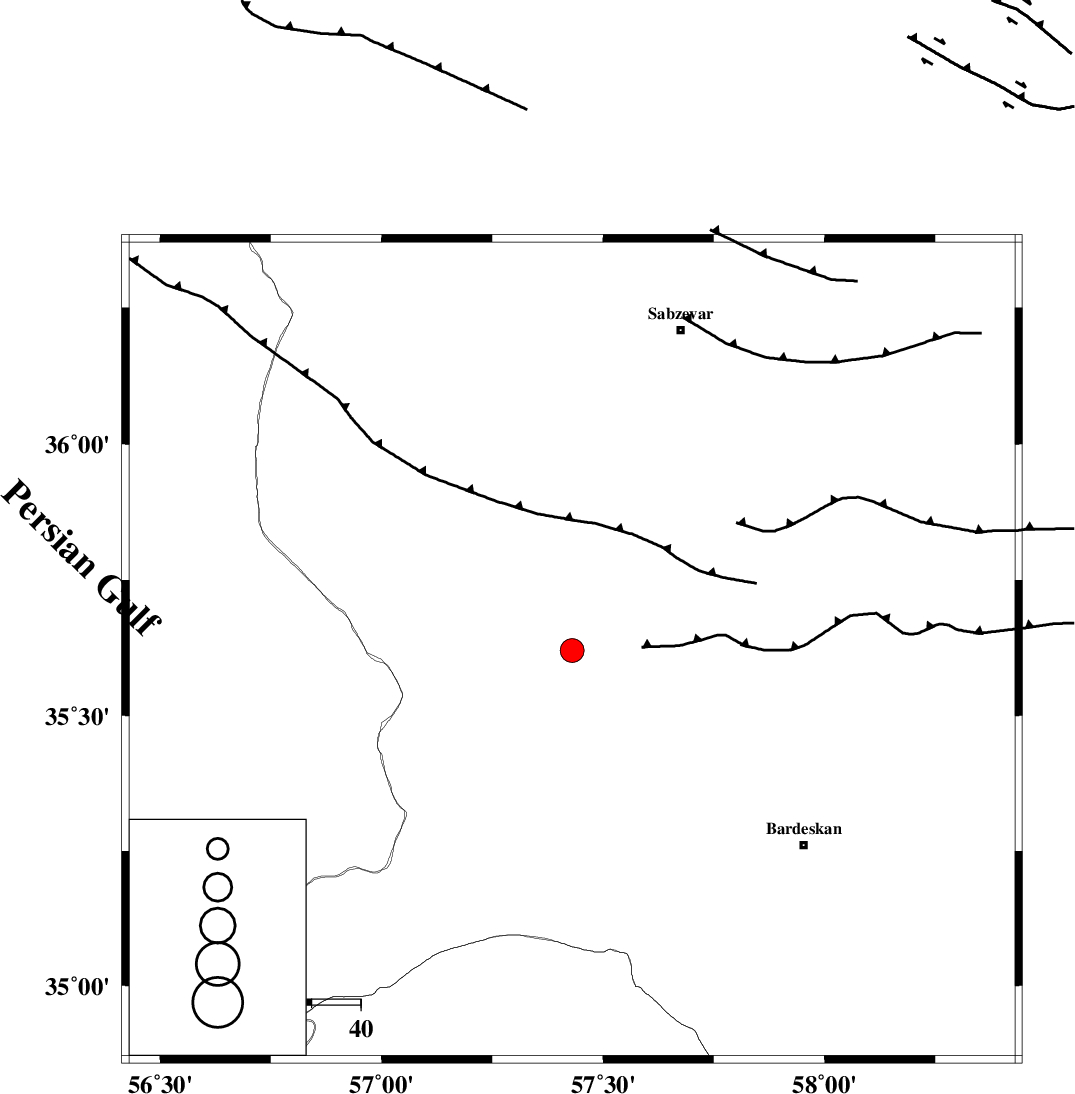

| Location | Lat:35.62 Lon: 57.43 |
| Region | Khorasan(center) Province, 69 km South-West of Sabzevar |
Nearest Cities |
|
| 26 km South West of Bejdan, Khorasan(center) Province | |
| 37 km South West of Tondak, Khorasan(center) Province | |
| 48 km South West of Sheshtamad, Khorasan(center) Province | |
| 56 km North West of Kabudan, Khorasan(center) Province | |
| 59 km North East of Zamanabad, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BIJVARD_F (Length: 83 km) , Distance to epicenter: 41 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 43 km | |
| BALHAR_F (Length: 117 km) , Distance to epicenter: 63 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >3 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118823 | IIEES | TABS | N | 273.8 | 0.73 | 2017-08-23 06:10:58 | 2017-08-23 06:38:00 | n |
| 118824 | IIEES | BJRD | E | 116.6 | 0.37 | 2017-08-23 06:10:57 | 2017-08-23 06:38:00 | n |
| 118825 | IIEES | SHRT | N | 64.9 | 0.38 | 2017-08-23 06:11:27 | 2017-08-23 06:38:00 | n |
| 118826 | IIEES | SHRT | E | 79.1 | 0.38 | 2017-08-23 06:11:29 | 2017-08-23 06:38:00 | n |
| 118827 | IIEES | YZKH | N | 133.9 | 0.92 | 2017-08-23 06:11:57 | 2017-08-23 06:38:00 | n |
| 118828 | IIEES | YZKH | E | 60.9 | 0.44 | 2017-08-23 06:11:59 | 2017-08-23 06:38:00 | n |
| 118829 | IIEES | DAMV | N | 16.1 | 0.72 | 2017-08-23 06:12:12 | 2017-08-23 06:38:00 | n |
| 118830 | IIEES | DAMV | E | 14.2 | 0.69 | 2017-08-23 06:12:19 | 2017-08-23 06:38:00 | n |
| 118831 | IIEES | NASN | E | 9.7 | 0.72 | 2017-08-23 06:12:17 | 2017-08-23 06:38:00 | n |
| 118832 | IIEES | GHVR | E | 24.8 | 0.72 | 2017-08-23 06:12:43 | 2017-08-23 06:38:00 | n |
| 118833 | IIEES | GHVR | N | 13.8 | 0.72 | 2017-08-23 06:12:47 | 2017-08-23 06:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2017-08-23 06:10:05 | -0.56 | y | 135 | 289 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-23 06:10:18 | -0.02 | y | 220 | 188 | |||
| IIEES | BJRD | Z | Pn | E | 2017-08-23 06:10:20 | 0.15 | y | 231 | 360 | |||
| IIEES | BJRD | E | Sg | E | 2017-08-23 06:10:48 | 0.03 | y | 231 | 360 | |||
| IIEES | MRVT | Z | Pn | E | 2017-08-23 06:10:23 | 0.32 | y | 256 | 332 | |||
| IIEES | SHRT | Z | P | E | 2017-08-23 06:10:33 | -0.47 | y | 342 | 129 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-23 06:10:45 | 0.06 | y | 435 | 158 | |||
| IIEES | YZKH | Z | Pn | E | 2017-08-23 06:10:46 | 0.44 | y | 444 | 217 | |||
| IIEES | DAMV | Z | Pn | E | 2017-08-23 06:10:52 | -0.19 | y | 494 | 272 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-23 06:10:57 | 0.83 | y | 528 | 235 | |||
| IIEES | CHTH | Z | Pn | E | 2017-08-23 06:11:02 | 0.17 | y | 571 | 275 | |||
| IIEES | GHVR | Z | Pn | E | 2017-08-23 06:11:02 | -0.33 | y | 578 | 259 | |||
| IIEES | ASAO | Z | Pn | E | 2017-08-23 06:11:16 | -0.39 | y | 685 | 262 | |||
