Magnitude |
:4.3 |
| Date & Time (UTC) | 2017-08-26 17:11:17.7 |
| Date & Time (Local) | 1396/6/4 21:41:17.7 |
| Location | Lat:31.651 Lon: 56.103 |
| Region | Yazd Province, 67 km -East of Bafq |
Nearest Cities |
|
| 9 km of Benestan, Yazd Province | |
| 12 km West of Asfih, Yazd Province | |
| 22 km North East of Basab, Yazd Province | |
| 25 km South of Behabad, Yazd Province | |
| 32 km East of Kushk, Yazd Province | |
| Depth | 15 km |
| Agency | |

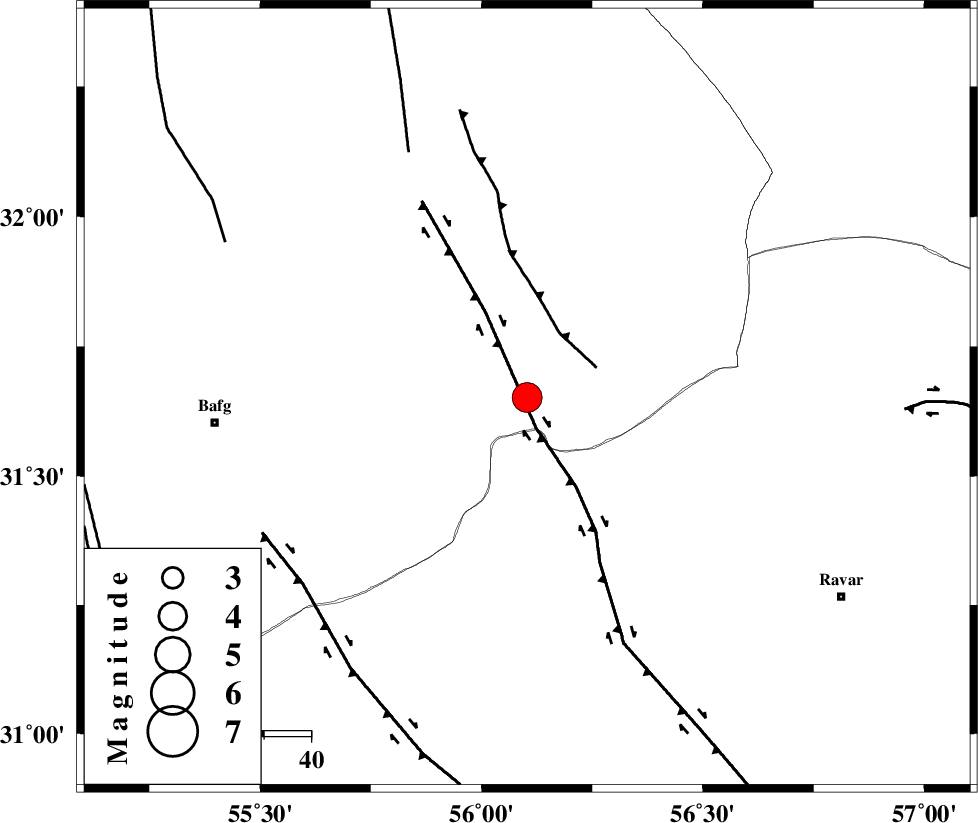

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 7 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 16 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 58 km | |
| Number of Phases | 24 |
| RMS | 0.4 |
| Number of Stations | 23 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 3 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118954 | IIEES | YZKH | N | 2712.5 | 0.56 | 2017-08-26 17:12:10 | 2017-08-27 04:18:00 | n |
| 118955 | IIEES | YZKH | E | 4014.2 | 0.4 | 2017-08-26 17:12:11 | 2017-08-27 04:18:00 | n |
| 118956 | IIEES | KRBR | N | 3530.7 | 0.55 | 2017-08-26 17:12:18 | 2017-08-27 04:18:00 | n |
| 118957 | IIEES | KRBR | E | 5624.8 | 0.46 | 2017-08-26 17:12:19 | 2017-08-27 04:18:00 | n |
| 118958 | IIEES | TABS | N | 1127.6 | 0.46 | 2017-08-26 17:12:37 | 2017-08-27 04:18:00 | n |
| 118959 | IIEES | BSRN | E | 1048.9 | 0.73 | 2017-08-26 17:12:47 | 2017-08-27 04:18:00 | n |
| 118960 | IIEES | BSRN | N | 1391.6 | 0.52 | 2017-08-26 17:12:48 | 2017-08-27 04:18:00 | n |
| 118961 | IIEES | NASN | E | 497.7 | 0.51 | 2017-08-26 17:13:01 | 2017-08-27 04:18:00 | n |
| 118962 | IIEES | SHRT | N | 168.8 | 0.5 | 2017-08-26 17:13:35 | 2017-08-27 04:18:00 | n |
| 118963 | IIEES | SHRT | E | 195.5 | 0.67 | 2017-08-26 17:13:39 | 2017-08-27 04:18:00 | n |
| 118964 | IIEES | BNDS | E | 199 | 0.58 | 2017-08-26 17:13:40 | 2017-08-27 04:18:00 | n |
| 118965 | IIEES | GHIR | E | 206.6 | 0.65 | 2017-08-26 17:13:41 | 2017-08-27 04:18:00 | n |
| 118966 | IIEES | GHIR | N | 123.6 | 0.64 | 2017-08-26 17:13:48 | 2017-08-27 04:18:00 | n |
| 118967 | IIEES | SHRO | N | 241.8 | 0.32 | 2017-08-26 17:13:44 | 2017-08-27 04:18:00 | n |
| 118968 | IIEES | SHRO | E | 254.4 | 0.64 | 2017-08-26 17:13:47 | 2017-08-27 04:18:00 | n |
| 118969 | IIEES | GHVR | N | 226.2 | 0.65 | 2017-08-26 17:14:09 | 2017-08-27 04:18:00 | n |
| 118970 | IIEES | GHVR | E | 196 | 0.54 | 2017-08-26 17:14:14 | 2017-08-27 04:18:00 | n |
| 118971 | IIEES | DAMV | E | 112.6 | 0.53 | 2017-08-26 17:14:13 | 2017-08-27 04:18:00 | n |
| 118972 | IIEES | DAMV | N | 76.9 | 0.53 | 2017-08-26 17:14:26 | 2017-08-27 04:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2017-08-26 17:11:44 | -0.34 | y | 165 | 300 | |||
| IIEES | KRBR | Z | Pg | E | 2017-08-26 17:11:49 | -0.25 | y | 195 | 161 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-26 17:11:55 | -0.08 | y | 241 | 23 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-26 17:12:00 | -0.49 | y | 288 | 82 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-26 17:12:07 | -0.18 | y | 336 | 293 | |||
| IIEES | SHRT | Z | Pn | E | 2017-08-26 17:12:21 | 0.31 | y | 451 | 60 | |||
| IIEES | BNDS | Z | Pn | E | 2017-08-26 17:12:24 | 0.14 | y | 471 | 179 | |||
| IIEES | GHIR | Z | Pn | E | 2017-08-26 17:12:24 | -0.11 | y | 479 | 220 | |||
| IIEES | SHRO | Z | Pn | E | 2017-08-26 17:12:25 | -0.34 | y | 483 | 359 | |||
| IIEES | GHVR | Z | Pn | E | 2017-08-26 17:12:33 | -0.29 | y | 551 | 306 | |||
| IIEES | AHRM | Z | Pn | E | 2017-08-26 17:12:34 | 0.01 | y | 556 | 237 | |||
| IIEES | DAMV | Z | Pn | E | 2017-08-26 17:12:38 | -0.07 | y | 584 | 320 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-08-26 17:12:42 | -0.18 | y | 620 | 294 | |||
| IIEES | ASAO | Z | Pn | E | 2017-08-26 17:12:47 | 0.84 | y | 652 | 301 | |||
| IIEES | CHTH | Z | Pn | E | 2017-08-26 17:12:47 | -0.02 | y | 660 | 317 | |||
| IIEES | MRVT | Z | Pn | E | 2017-08-26 17:12:48 | 0.33 | y | 667 | 360 | |||
| IIEES | THKV | Z | Pn | E | 2017-08-26 17:12:49 | 0.07 | y | 676 | 316 | |||
| IIEES | BJRD | Z | Pn | E | 2017-08-26 17:12:50 | 0.34 | y | 682 | 10 | |||
| IIEES | CHBR | Z | Pn | E | 2017-08-26 17:13:05 | 1.17 | y | 796 | 146 | |||
| IIEES | GIDE | Z | Pn | E | 2017-08-26 17:13:07 | 0.54 | y | 816 | 317 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-08-26 17:13:15 | 0.34 | y | 882 | 311 | |||
| IIEES | SNGE | Z | Pn | E | 2017-08-26 17:13:17 | 0.47 | y | 899 | 297 | |||
| IIEES | ILBA | Z | Pn | E | 2017-08-26 17:13:19 | -4.11 | n | 4 | 954 | 286 | ||
| IIEES | GRMI | Z | Pn | E | 2017-08-26 17:13:40 | 0.04 | y | 1090 | 319 | |||
