Magnitude |
:3.5 |
| Date & Time (UTC) | 2017-08-23 21:06:54.0 |
| Date & Time (Local) | 1396/6/2 01:36:54.0 |

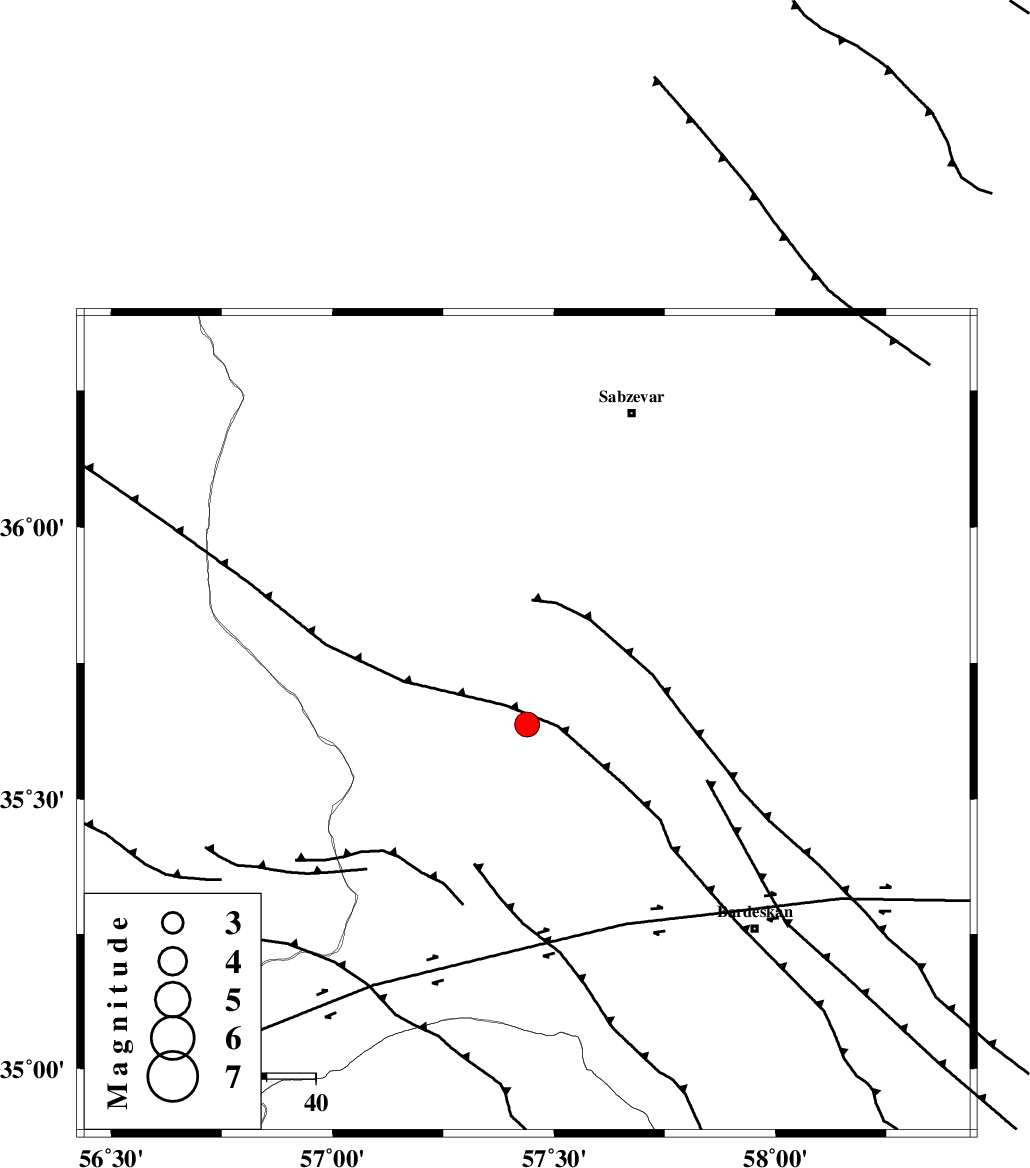

| Location | Lat:35.637 Lon: 57.439 |
| Region | Khorasan(center) Province, 67 km South-West of Sabzevar |
Nearest Cities |
|
| 24 km South West of Bejdan, Khorasan(center) Province | |
| 36 km South West of Tondak, Khorasan(center) Province | |
| 46 km South West of Sheshtamad, Khorasan(center) Province | |
| 57 km North West of Kabudan, Khorasan(center) Province | |
| 60 km North East of Zamanabad, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BIJVARD_F (Length: 83 km) , Distance to epicenter: 42 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 45 km | |
| BALHAR_F (Length: 117 km) , Distance to epicenter: 62 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118997 | IIEES | SHRO | E | 436.7 | 0.26 | 2017-08-23 21:07:37 | 2017-08-27 08:11:00 | n |
| 118998 | IIEES | TABS | N | 330.5 | 0.52 | 2017-08-23 21:08:09 | 2017-08-27 08:11:00 | n |
| 118999 | IIEES | SHRT | E | 73 | 0.38 | 2017-08-23 21:08:39 | 2017-08-27 08:11:00 | n |
| 119000 | IIEES | SHRT | N | 91.7 | 0.38 | 2017-08-23 21:08:43 | 2017-08-27 08:11:00 | n |
| 119001 | IIEES | YZKH | E | 79 | 0.34 | 2017-08-23 21:09:10 | 2017-08-27 08:11:00 | n |
| 119002 | IIEES | YZKH | N | 44.1 | 0.43 | 2017-08-23 21:09:15 | 2017-08-27 08:11:00 | n |
| 119003 | IIEES | NASN | E | 12.2 | 0.57 | 2017-08-23 21:09:32 | 2017-08-27 08:11:00 | n |
| 119004 | IIEES | GHVR | N | 18.2 | 0.6 | 2017-08-23 21:09:59 | 2017-08-27 08:11:00 | n |
| 119005 | IIEES | GHVR | E | 20 | 0.48 | 2017-08-23 21:10:02 | 2017-08-27 08:11:00 | n |
| 119006 | IIEES | THKV | N | 19 | 0.64 | 2017-08-23 21:09:58 | 2017-08-27 08:11:00 | n |
| 119007 | IIEES | THKV | E | 14.4 | 0.73 | 2017-08-23 21:10:08 | 2017-08-27 08:11:00 | n |
| 119008 | IIEES | KRBR | E | 20.2 | 0.54 | 2017-08-23 21:10:04 | 2017-08-27 08:11:00 | n |
| 119009 | IIEES | KRBR | N | 21.6 | 0.5 | 2017-08-23 21:10:13 | 2017-08-27 08:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2017-08-23 21:07:15 | -0.7 | y | 135 | 288 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-23 21:07:29 | 0 | y | 222 | 188 | |||
| IIEES | BJRD | Z | Pn | E | 2017-08-23 21:07:30 | 0.07 | y | 229 | 359 | |||
| IIEES | BJRD | E | Sg | E | 2017-08-23 21:07:59 | 0.14 | y | 229 | 359 | |||
| IIEES | MRVT | Z | Pn | E | 2017-08-23 21:07:33 | 0.16 | y | 255 | 332 | |||
| IIEES | SHRT | Z | Pn | E | 2017-08-23 21:07:43 | -0.39 | y | 342 | 129 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-23 21:07:55 | -0.22 | y | 436 | 159 | |||
| IIEES | YZKH | Z | Pn | E | 2017-08-23 21:07:57 | 0.19 | y | 446 | 217 | |||
| IIEES | DAMV | Z | Pn | E | 2017-08-23 21:08:03 | -0.17 | y | 495 | 271 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-23 21:08:08 | 0.28 | y | 530 | 235 | |||
| IIEES | GHVR | Z | Pn | E | 2017-08-23 21:08:13 | 0.04 | y | 579 | 259 | |||
| IIEES | THKV | Z | Pn | E | 2017-08-23 21:08:16 | 0.83 | y | 594 | 275 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-23 21:08:20 | 0.57 | y | 630 | 186 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-08-23 21:08:30 | -0.34 | y | 716 | 255 | |||
