Magnitude |
:5 |
| Date & Time (UTC) | 2017-08-27 23:14:50.8 |
| Date & Time (Local) | 1396/6/6 03:44:50.8 |
| Location | Lat:37.905 Lon: 47.184 |
| Region | Azarbaijan Sharghi Province, 31 km -West of Sarab |
Nearest Cities |
|
| 5 km North of Sharabian, Azarbaijan Sharghi Province | |
| 12 km North East of Sarcheshmeh, Azarbaijan Sharghi Province | |
| 17 km South of Mehraban, Azarbaijan Sharghi Province | |
| 18 km North West of Abarghan, Azarbaijan Sharghi Province | |
| 22 km East of Kord kandi, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |

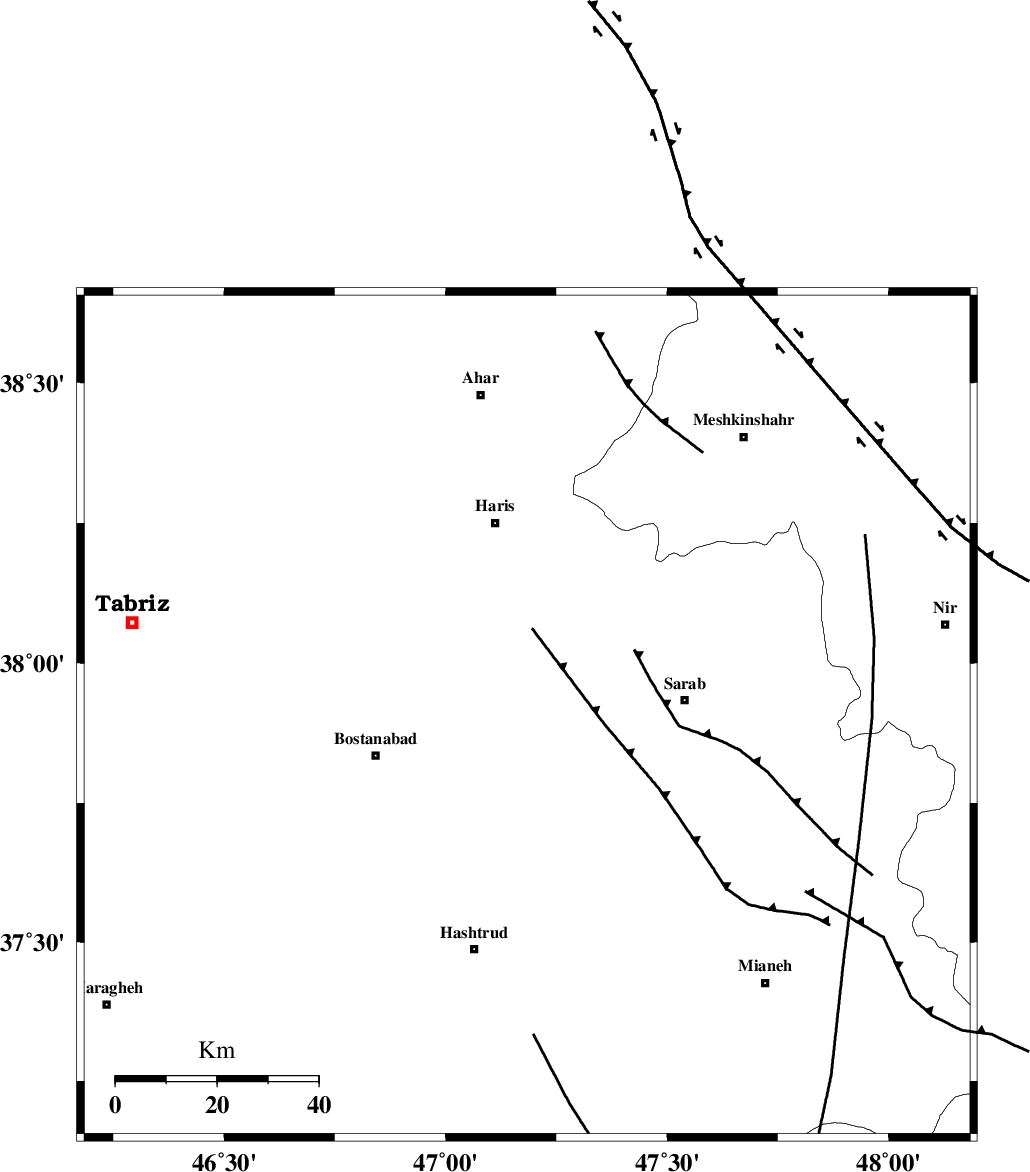

Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 14 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 102 km | |
| Number of Phases | 24 |
| RMS | 0.5 |
| Number of Stations | 23 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 6 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119017 | IIEES | GRMI | E | 10956.7 | 0.69 | 2017-08-27 23:15:34 | 2017-08-28 03:26:00 | n |
| 119018 | IIEES | ZNJK | E | 13215 | 0.55 | 2017-08-27 23:15:46 | 2017-08-28 03:26:00 | n |
| 119019 | IIEES | ZNJK | N | 17770.9 | 0.4 | 2017-08-27 23:15:47 | 2017-08-28 03:26:00 | n |
| 119020 | IIEES | GIDE | N | 11692.4 | 0.75 | 2017-08-27 23:16:15 | 2017-08-28 03:26:00 | n |
| 119021 | IIEES | GIDE | E | 7534.9 | 0.75 | 2017-08-27 23:16:20 | 2017-08-28 03:26:00 | n |
| 119022 | IIEES | THKV | E | 6346.6 | 0.47 | 2017-08-27 23:16:48 | 2017-08-28 03:26:00 | n |
| 119023 | IIEES | THKV | N | 3673.1 | 0.31 | 2017-08-27 23:16:50 | 2017-08-28 03:26:00 | n |
| 119024 | IIEES | CHTH | N | 1191 | 0.46 | 2017-08-27 23:16:52 | 2017-08-28 03:26:00 | n |
| 119025 | IIEES | CHTH | E | 779.5 | 0.83 | 2017-08-27 23:16:54 | 2017-08-28 03:26:00 | n |
| 119026 | IIEES | ASAO | E | 585.5 | 0.73 | 2017-08-27 23:17:08 | 2017-08-28 03:26:00 | n |
| 119027 | IIEES | DAMV | E | 1859.4 | 0.68 | 2017-08-27 23:17:14 | 2017-08-28 03:26:00 | n |
| 119028 | IIEES | DAMV | N | 1298.3 | 0.45 | 2017-08-27 23:17:15 | 2017-08-28 03:26:00 | n |
| 119029 | IIEES | KHMZ | E | 324 | 0.76 | 2017-08-27 23:17:41 | 2017-08-28 03:26:00 | n |
| 119030 | IIEES | GHVR | N | 1623 | 0.71 | 2017-08-27 23:17:35 | 2017-08-28 03:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2017-08-27 23:15:10 | -0.21 | y | 118 | 32 | |||
| IIEES | ZNJK | Z | Pg | E | 2017-08-27 23:15:21 | -0.86 | y | 191 | 135 | |||
| IIEES | ZNJK | N | Sg | E | 2017-08-27 23:15:44 | -0.45 | y | 191 | 135 | |||
| IIEES | GIDE | Z | Pn | E | 2017-08-27 23:15:31 | 0.2 | y | 265 | 113 | |||
| IIEES | MAKU | Z | Pn | E | 2017-08-27 23:15:31 | -0.22 | y | 271 | 307 | |||
| IIEES | SNGE | Z | Pn | E | 2017-08-27 23:15:37 | -0.11 | y | 312 | 177 | |||
| IIEES | THKV | Z | Pn | E | 2017-08-27 23:15:48 | 0.4 | y | 396 | 123 | |||
| IIEES | CHTH | Z | Pn | E | 2017-08-27 23:15:50 | 0.53 | y | 415 | 121 | |||
| IIEES | ASAO | Z | Pn | E | 2017-08-27 23:15:54 | -0.13 | y | 452 | 145 | |||
| IIEES | ILBA | Z | Pn | E | 2017-08-27 23:15:58 | 0.04 | y | 483 | 191 | |||
| IIEES | DAMV | Z | Pn | E | 2017-08-27 23:16:01 | 0.92 | y | 496 | 119 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-08-27 23:16:04 | 0.24 | y | 526 | 151 | |||
| IIEES | GHVR | Z | Pn | E | 2017-08-27 23:16:04 | 0.4 | y | 527 | 135 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-27 23:16:33 | 0.52 | y | 763 | 136 | |||
| IIEES | MRVT | Z | Pn | E | 2017-08-27 23:16:34 | -1.13 | y | 785 | 89 | |||
| IIEES | SHRO | Z | Pn | E | 2017-08-27 23:16:40 | 0.78 | y | 814 | 102 | |||
| IIEES | BJRD | Z | Pn | E | 2017-08-27 23:16:49 | -0.55 | y | 900 | 88 | |||
| IIEES | YZKH | Z | Pn | E | 2017-08-27 23:16:51 | 0.05 | y | 910 | 130 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-27 23:17:04 | 0.12 | y | 1014 | 115 | |||
| IIEES | AHRM | Z | Pn | E | 2017-08-27 23:17:11 | -0.42 | y | 1073 | 158 | |||
| IIEES | GHIR | Z | Pn | E | 2017-08-27 23:17:26 | -0.26 | y | 1196 | 151 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-27 23:17:34 | 0.9 | y | 1246 | 132 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-27 23:17:37 | 0.39 | y | 1273 | 118 | |||
| IIEES | SHRT | Z | Pn | E | 2017-08-27 23:17:37 | 0.3 | y | 1274 | 108 | |||
