Magnitude |
:2.7 |
| Date & Time (UTC) | 2017-09-02 15:59:45.3 |
| Date & Time (Local) | 1396/6/11 20:29:45.3 |

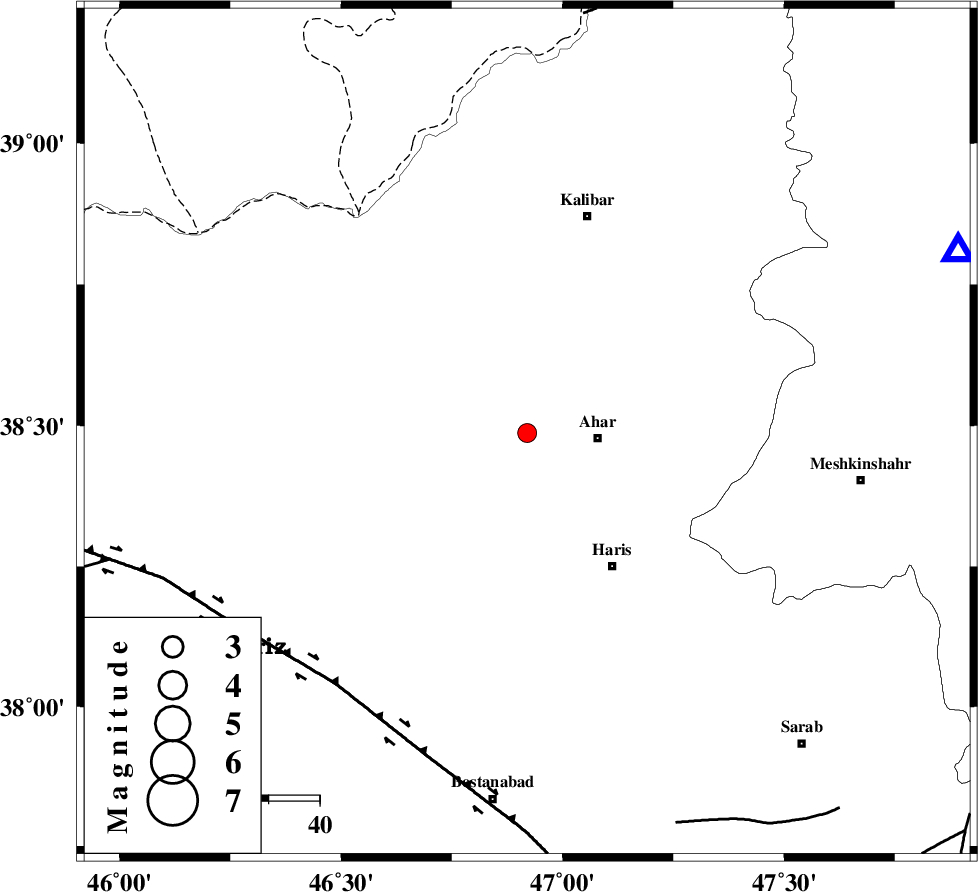

| Location | Lat:38.487 Lon: 46.92 |
| Region | Azarbaijan Sharghi Province, 14 km -West of Ahar |
Nearest Cities |
|
| 11 km of Azghan, Azarbaijan Sharghi Province | |
| 11 km North West of Khuniq, Azarbaijan Sharghi Province | |
| 13 km East of Tokhmdel, Azarbaijan Sharghi Province | |
| 14 km North West of Ahar, Azarbaijan Sharghi Province | |
| 19 km West of Mahzarvandan, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 62 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 83 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 83 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119185 | IIEES | GRMI | E | 174.7 | 0.26 | 2017-09-02 16:00:14 | 2017-09-03 04:14:00 | n |
| 119186 | IIEES | GRMI | N | 320.7 | 0.04 | 2017-09-02 16:00:14 | 2017-09-03 04:14:00 | n |
| 119187 | IIEES | GIDE | E | 20.4 | 0.48 | 2017-09-02 16:01:18 | 2017-09-03 04:14:00 | n |
| 119188 | IIEES | GIDE | N | 27.3 | 0.3 | 2017-09-02 16:01:20 | 2017-09-03 04:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2017-09-02 16:00:01 | 0.03 | y | 92 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2017-09-02 16:00:12 | 0.03 | y | 92 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2017-09-02 16:00:20 | 0.1 | y | 217 | 297 | |||
| IIEES | MAKU | E | Sg | E | 2017-09-02 16:00:46 | -0.07 | y | 217 | 297 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-09-02 16:00:24 | -0.26 | y | 255 | 142 | |||
| IIEES | GIDE | Z | Pn | E | 2017-09-02 16:00:32 | 0.17 | y | 316 | 122 | |||
| IIEES | SNGE | Z | Pn | E | 2017-09-02 16:00:40 | 0.16 | y | 379 | 174 | |||
| IIEES | MRVT | Z | Pn | E | 2017-09-02 16:01:33 | -0.34 | y | 809 | 94 | |||
