Magnitude |
:2.6 |
| Date & Time (UTC) | 2017-09-13 06:35:49.6 |
| Date & Time (Local) | 1396/6/22 11:05:49.6 |

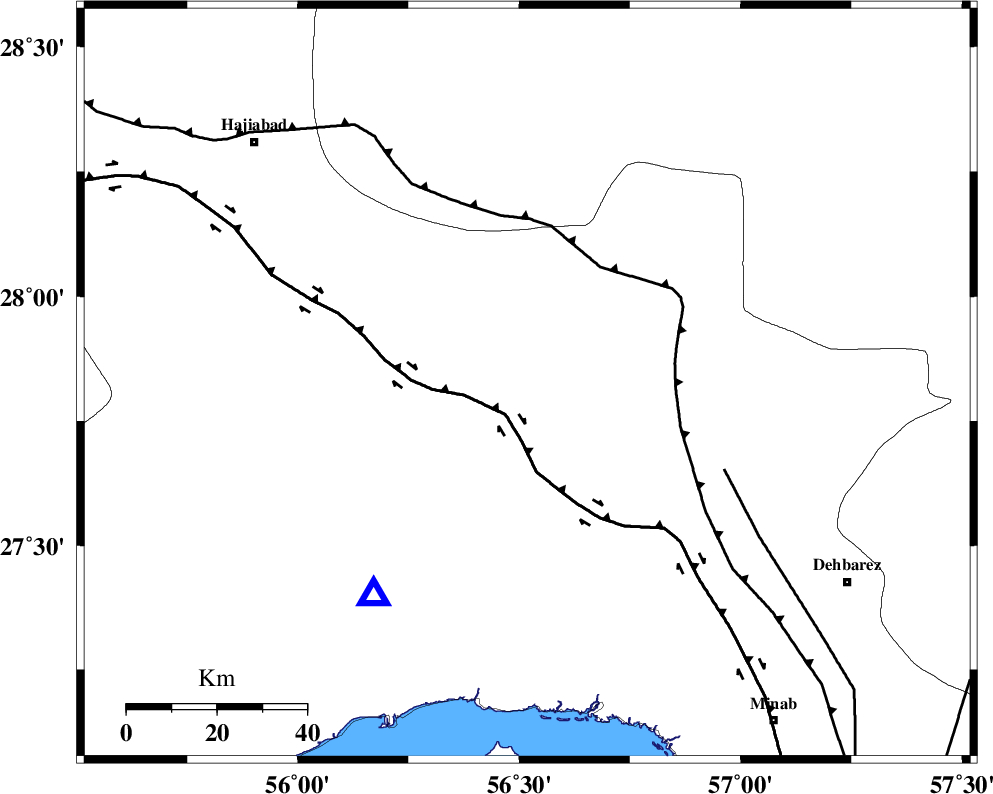

| Location | Lat:27.826 Lon: 56.518 |
| Region | Hormozgan Province, 75 km North-East of Bandar-e abbas |
Nearest Cities |
|
| 35 km South East of Fareqan, Hormozgan Province | |
| 64 km North East of Fin, Hormozgan Province | |
| 67 km South West of Sarkhan, Kerman Province | |
| 70 km South East of Arzuieeh, Kerman Province | |
| 70 km North West of Ziaratali, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 9 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 31 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 48 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 9.1 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119500 | IIEES | BNDS | N | 273.8 | 0.25 | 2017-09-13 06:36:16 | 2017-09-13 10:16:00 | n |
| 119501 | IIEES | KRBR | E | 51.2 | 0.25 | 2017-09-13 06:37:00 | 2017-09-13 10:16:00 | n |
| 119502 | IIEES | KRBR | N | 53.5 | 0.37 | 2017-09-13 06:37:00 | 2017-09-13 10:16:00 | n |
| 119503 | IIEES | BSRN | E | 2.6 | 0.68 | 2017-09-13 06:38:21 | 2017-09-13 10:16:00 | n |
| 119504 | IIEES | BSRN | N | 3 | 0.78 | 2017-09-13 06:38:28 | 2017-09-13 10:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-09-13 06:35:59 | -0.14 | y | 58.3 | 216 | |||
| IIEES | BNDS | E | Sg | E | 2017-09-13 06:36:07 | -0.18 | y | 58.3 | 216 | |||
| IIEES | KRBR | Z | Pn | E | 2017-09-13 06:36:27 | 0.08 | y | 240 | 6 | |||
| IIEES | KRBR | N | Sg | E | 2017-09-13 06:36:57 | -0.4 | y | 240 | 6 | |||
| IIEES | GHIR | Z | Pn | E | 2017-09-13 06:36:41 | 0.48 | y | 351 | 279 | |||
| IIEES | BSRN | Z | Pn | E | 2017-09-13 06:37:02 | 0.37 | y | 523 | 28 | |||
