Magnitude |
:2.9 |
| Date & Time (UTC) | 2017-09-16 15:07:10.5 |
| Date & Time (Local) | 1396/6/25 19:37:10.5 |

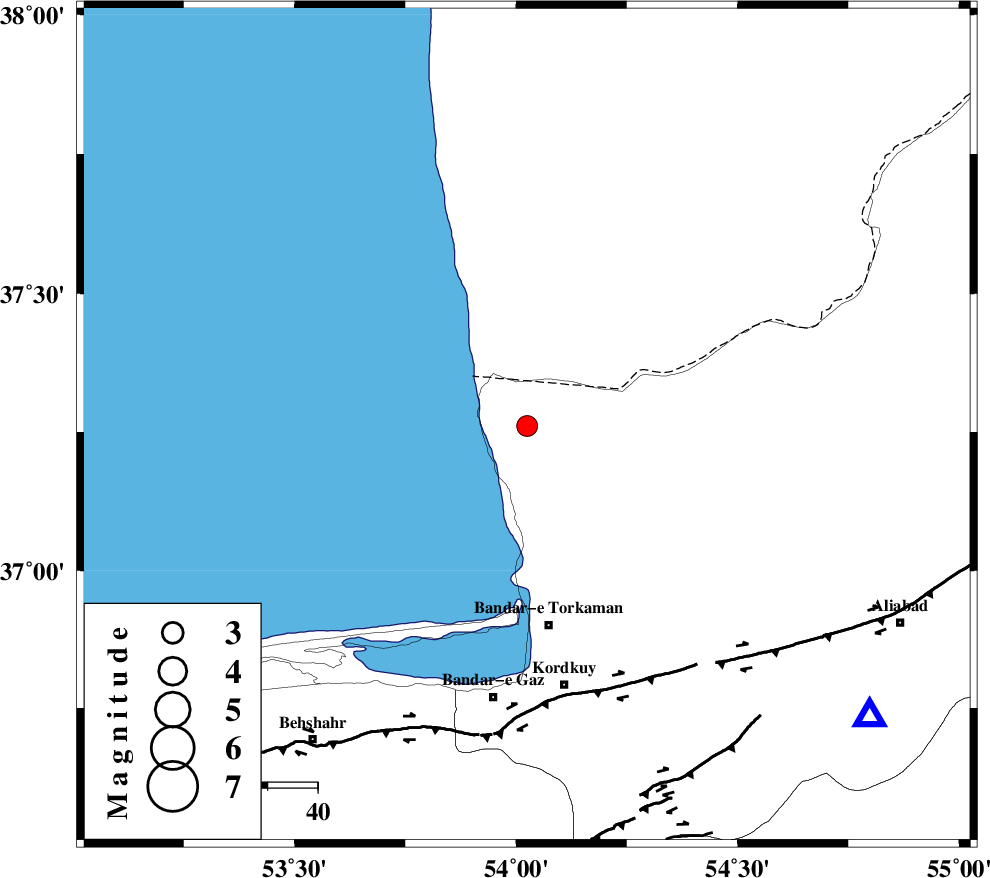

| Location | Lat:37.261 Lon: 54.025 |
| Region | Golestan Province, 40 km North of Bandar-e torkaman |
Nearest Cities |
|
| 19 km North of Gomishtappeh, Golestan Province | |
| 33 km North West of Banavar, Golestan Province | |
| 40 km North of Bandar-e torkaman, Golestan Province | |
| 43 km North of Sijval, Golestan Province | |
| 47 km North West of Aq Qaleh, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 53 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 79 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 84 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119572 | IIEES | DAMV | E | 51.1 | 0.35 | 2017-09-16 15:08:27 | 2017-09-17 04:51:00 | n |
| 119573 | IIEES | DAMV | N | 45.9 | 0.07 | 2017-09-16 15:08:29 | 2017-09-17 04:51:00 | n |
| 119574 | IIEES | THKV | N | 28.5 | 0.32 | 2017-09-16 15:08:45 | 2017-09-17 04:51:00 | n |
| 119575 | IIEES | THKV | E | 54 | 0.51 | 2017-09-16 15:08:52 | 2017-09-17 04:51:00 | n |
| 119576 | IIEES | GIDE | N | 19 | 0.33 | 2017-09-16 15:08:46 | 2017-09-17 04:51:00 | n |
| 119577 | IIEES | GIDE | E | 24.7 | 0.4 | 2017-09-16 15:09:02 | 2017-09-17 04:51:00 | n |
| 119578 | IIEES | TABS | N | 5.3 | 0.83 | 2017-09-16 15:09:36 | 2017-09-17 04:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2017-09-16 15:07:41 | -0.14 | y | 188 | 76 | |||
| IIEES | SHRO | Z | Pn | E | 2017-09-16 15:07:46 | 0.38 | y | 226 | 127 | |||
| IIEES | DAMV | Z | Pn | E | 2017-09-16 15:07:50 | 0.2 | y | 258 | 226 | |||
| IIEES | DAMV | N | Sg | E | 2017-09-16 15:08:23 | -0.19 | y | 258 | 226 | |||
| IIEES | CHTH | Z | Pn | E | 2017-09-16 15:07:55 | -0.23 | y | 300 | 241 | |||
| IIEES | THKV | Z | Pn | E | 2017-09-16 15:07:58 | 0.34 | y | 319 | 243 | |||
| IIEES | GIDE | Z | P | E | 2017-09-16 15:08:04 | 0.3 | y | 368 | 265 | |||
| IIEES | TABS | Z | Pn | E | 2017-09-16 15:08:18 | -0.49 | y | 489 | 144 | |||
| IIEES | GRMI | Z | Pn | E | 2017-09-16 15:08:28 | -0.44 | y | 565 | 290 | |||
