Magnitude |
:2.9 |
| Date & Time (UTC) | 2017-09-19 23:46:52.4 |
| Date & Time (Local) | 1396/6/29 04:16:52.4 |

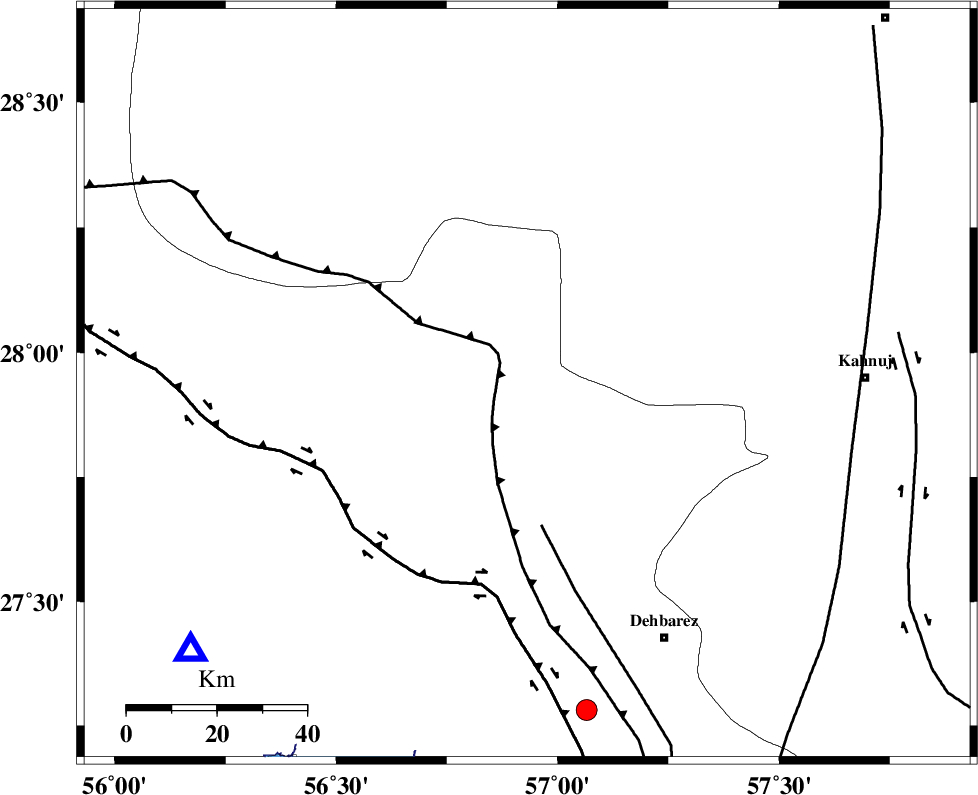

| Location | Lat:27.937 Lon: 56.931 |
| Region | Hormozgan Province, 75 km -West of Kahnuj |
Nearest Cities |
|
| 36 km South West of Faryab, Kerman Province | |
| 37 km North West of Ziaratali, Hormozgan Province | |
| 37 km North West of Fariab, Hormozgan Province | |
| 45 km South of Sarkhan, Kerman Province | |
| 47 km South West of Hurpasefid, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 8 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 32 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 46 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 9 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119691 | IIEES | BNDS | N | 352.1 | 0.44 | 2017-09-19 23:47:25 | 2017-09-20 08:35:00 | n |
| 119692 | IIEES | BNDS | E | 340.4 | 0.25 | 2017-09-19 23:47:26 | 2017-09-20 08:35:00 | n |
| 119693 | IIEES | KRBR | E | 153.3 | 0.24 | 2017-09-19 23:48:00 | 2017-09-20 08:35:00 | n |
| 119694 | IIEES | KRBR | N | 143.1 | 0.39 | 2017-09-19 23:48:00 | 2017-09-20 08:35:00 | n |
| 119695 | IIEES | GHIR | N | 11.6 | 0.63 | 2017-09-19 23:48:54 | 2017-09-20 08:35:00 | n |
| 119696 | IIEES | GHIR | E | 10.3 | 0.51 | 2017-09-19 23:48:58 | 2017-09-20 08:35:00 | n |
| 119697 | IIEES | BSRN | E | 7.8 | 0.35 | 2017-09-19 23:49:22 | 2017-09-20 08:35:00 | n |
| 119698 | IIEES | BSRN | N | 6 | 0.6 | 2017-09-19 23:49:23 | 2017-09-20 08:35:00 | n |
| 119699 | IIEES | TABS | N | 2.4 | 0.54 | 2017-09-19 23:50:10 | 2017-09-20 08:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-09-19 23:47:08 | -0.28 | y | 95.7 | 232 | |||
| IIEES | BNDS | N | Sg | E | 2017-09-19 23:47:21 | 0.31 | y | 95.7 | 232 | |||
| IIEES | KRBR | Z | Pn | E | 2017-09-19 23:47:28 | 0.16 | y | 227 | 356 | |||
| IIEES | KRBR | N | Sg | E | 2017-09-19 23:47:57 | -0.04 | y | 227 | 356 | |||
| IIEES | GHIR | Z | Pn | E | 2017-09-19 23:47:48 | -0.4 | y | 389 | 277 | |||
| IIEES | BSRN | Z | Pn | E | 2017-09-19 23:48:01 | -0.2 | y | 494 | 25 | |||
| IIEES | TABS | Z | Pn | E | 2017-09-19 23:48:19 | 0.59 | y | 634 | 2 | |||
