Magnitude |
:2.5 |
| Date & Time (UTC) | 2017-09-19 16:19:04.5 |
| Date & Time (Local) | 1396/6/28 20:49:04.5 |

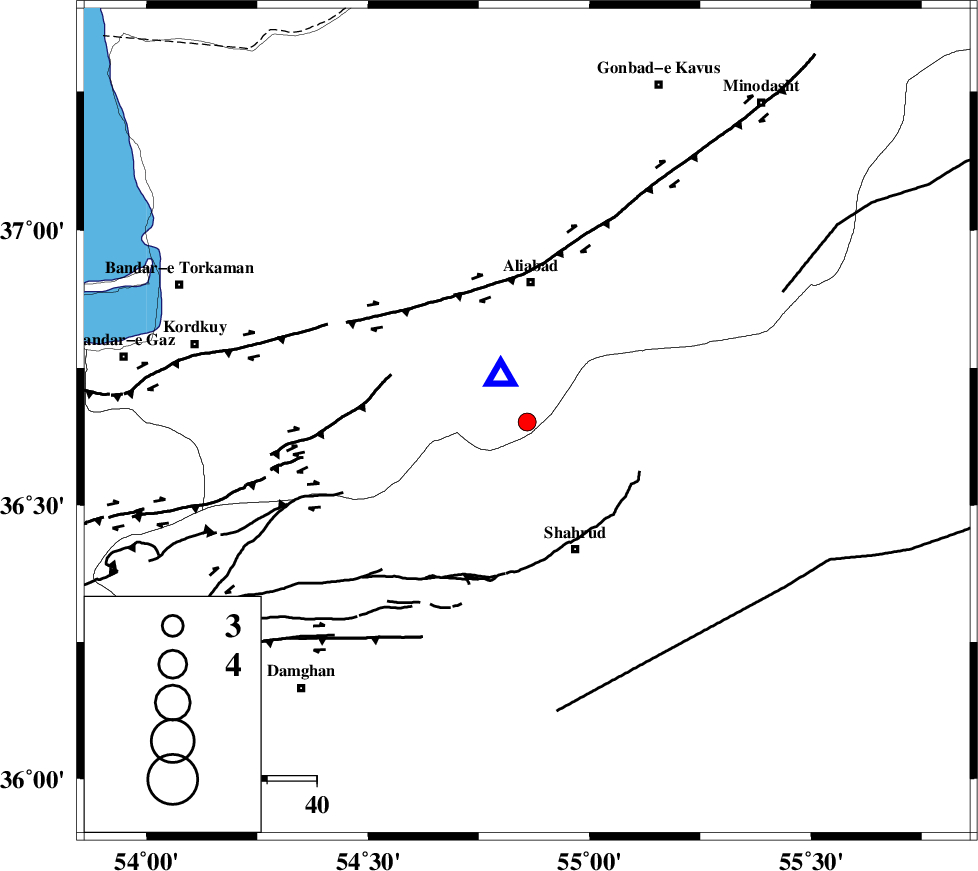

| Location | Lat:36.651 Lon: 54.859 |
| Region | Golestan Province, 28 km South of Ali Abad |
Nearest Cities |
|
| 22 km North West of Qaleh-ye nokharqan, Semnan Province | |
| 23 km North West of Bastam, Semnan Province | |
| 27 km North East of Majen, Semnan Province | |
| 27 km North West of Shahrud, Semnan Province | |
| 28 km South of Ali Abad, Golestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 10 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 29 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 39 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119728 | IIEES | MRVT | E | 63.5 | 0.22 | 2017-09-19 16:19:53 | 2017-09-20 10:46:00 | n |
| 119729 | IIEES | MRVT | N | 66 | 0.22 | 2017-09-19 16:19:53 | 2017-09-20 10:46:00 | n |
| 119730 | IIEES | BJRD | E | 24.9 | 0.54 | 2017-09-19 16:20:19 | 2017-09-20 10:46:00 | n |
| 119731 | IIEES | BJRD | N | 16.8 | 0.4 | 2017-09-19 16:20:22 | 2017-09-20 10:46:00 | n |
| 119732 | IIEES | DAMV | E | 17.7 | 0.33 | 2017-09-19 16:20:29 | 2017-09-20 10:46:00 | n |
| 119733 | IIEES | DAMV | N | 18.6 | 0.39 | 2017-09-19 16:20:31 | 2017-09-20 10:46:00 | n |
| 119734 | IIEES | TABS | N | 6.6 | 0.86 | 2017-09-19 16:21:08 | 2017-09-20 10:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2017-09-19 16:19:26 | 0.39 | y | 126 | 124 | |||
| IIEES | MRVT | Z | Pg | E | 2017-09-19 16:19:29 | -0.53 | y | 156 | 44 | |||
| IIEES | MRVT | N | Sg | E | 2017-09-19 16:19:49 | 0.18 | y | 156 | 44 | |||
| IIEES | BJRD | Z | Pn | E | 2017-09-19 16:19:43 | 0.18 | y | 255 | 62 | |||
| IIEES | DAMV | Z | Pn | E | 2017-09-19 16:19:47 | 0.39 | y | 283 | 247 | |||
| IIEES | DAMV | E | Sg | E | 2017-09-19 16:20:24 | -0.05 | y | 283 | 247 | |||
| IIEES | TABS | Z | Pn | E | 2017-09-19 16:20:00 | -0.36 | y | 392 | 148 | |||
| IIEES | YZKH | Z | Pn | E | 2017-09-19 16:20:10 | -0.36 | y | 473 | 183 | |||
