Magnitude |
:2.8 |
| Date & Time (UTC) | 2017-09-22 10:47:53.7 |
| Date & Time (Local) | 1396/6/31 14:17:53.7 |

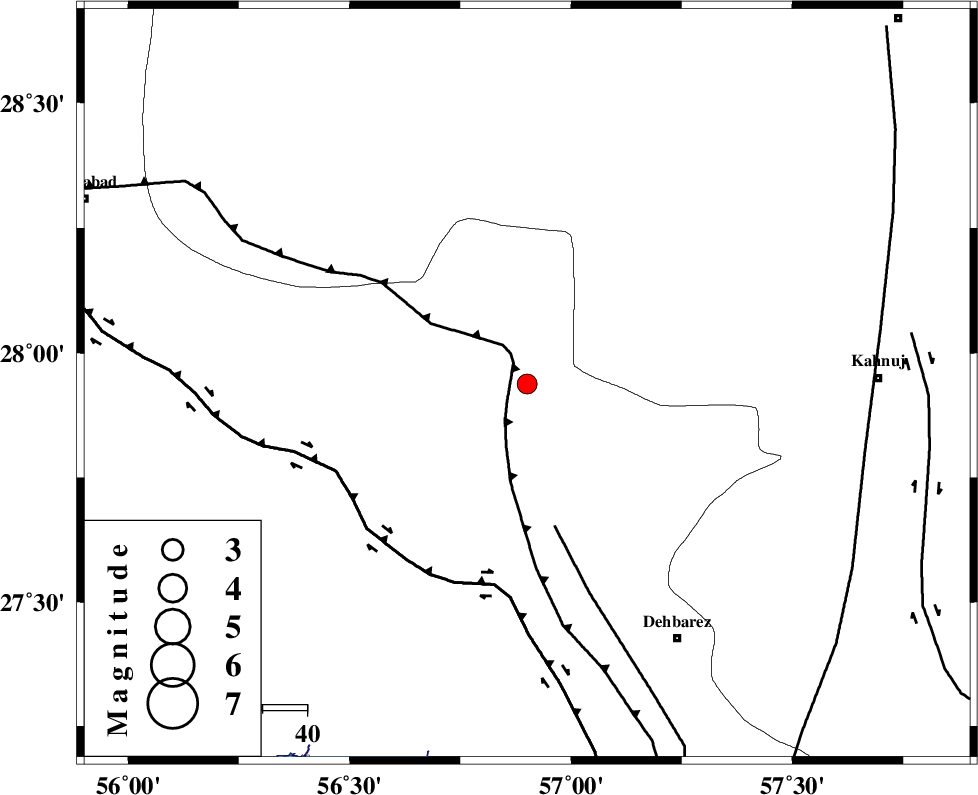

| Location | Lat:27.938 Lon: 56.901 |
| Region | Hormozgan Province, 78 km -West of Kahnuj |
Nearest Cities |
|
| 39 km South West of Faryab, Kerman Province | |
| 39 km North West of Ziaratali, Hormozgan Province | |
| 39 km North West of Fariab, Hormozgan Province | |
| 45 km South of Sarkhan, Kerman Province | |
| 50 km South West of Hurpasefid, Kerman Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 5 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 32 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 45 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 6 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119797 | IIEES | BNDS | N | 251.8 | 0.32 | 2017-09-22 10:48:25 | 2017-09-23 09:00:00 | n |
| 119798 | IIEES | BNDS | E | 217.3 | 0.18 | 2017-09-22 10:48:26 | 2017-09-23 09:00:00 | n |
| 119799 | IIEES | KRBR | E | 100.9 | 0.31 | 2017-09-22 10:49:00 | 2017-09-23 09:00:00 | n |
| 119800 | IIEES | KRBR | N | 136.1 | 0.42 | 2017-09-22 10:49:01 | 2017-09-23 09:00:00 | n |
| 119801 | IIEES | GHIR | N | 8.7 | 0.47 | 2017-09-22 10:49:56 | 2017-09-23 09:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-09-22 10:48:09 | -0.27 | y | 93.5 | 230 | |||
| IIEES | BNDS | E | Sg | E | 2017-09-22 10:48:21 | 0.23 | y | 93.5 | 230 | |||
| IIEES | KRBR | Z | Pn | E | 2017-09-22 10:48:29 | 0.12 | y | 227 | 357 | |||
| IIEES | KRBR | N | Sg | E | 2017-09-22 10:48:58 | 0.03 | y | 227 | 357 | |||
| IIEES | GHIR | Z | Pn | E | 2017-09-22 10:48:49 | -0.04 | y | 387 | 277 | |||
| IIEES | BSRN | Z | Pn | E | 2017-09-22 10:49:02 | 0.14 | y | 495 | 25 | |||
| IIEES | YZKH | Z | Pn | E | 2017-09-22 10:49:08 | -0.28 | y | 541 | 336 | |||
