Magnitude |
:3.6 |
| Date & Time (UTC) | 2017-09-20 19:34:23.2 |
| Date & Time (Local) | 1396/6/30 00:04:23.2 |

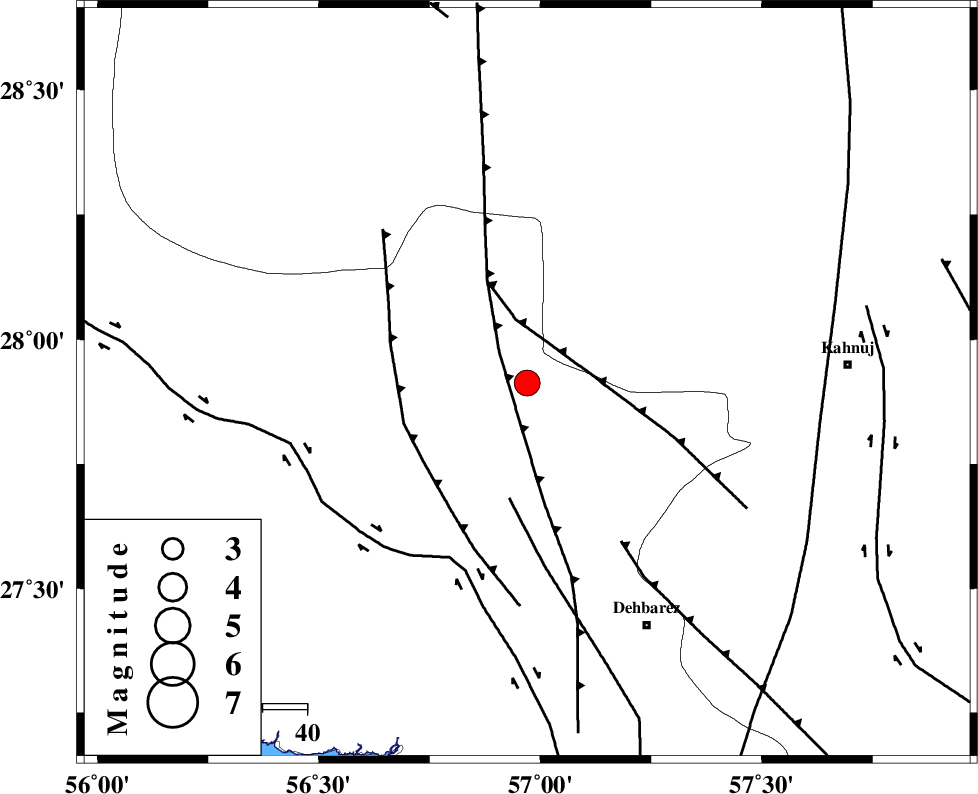

| Location | Lat:27.913 Lon: 56.97 |
| Region | Hormozgan Province, 60 km North-West of Dehbarez |
Nearest Cities |
|
| 32 km North West of Ziaratali, Hormozgan Province | |
| 32 km North West of Fariab, Hormozgan Province | |
| 34 km South West of Faryab, Kerman Province | |
| 46 km South West of Hurpasefid, Kerman Province | |
| 47 km South West of Mehrueye-e paeen, Kerman Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 11 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 29 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 44 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119870 | IIEES | BNDS | N | 1209.4 | 0.39 | 2017-09-20 19:34:58 | 2017-09-24 09:31:00 | n |
| 119871 | IIEES | BNDS | E | 1108.7 | 0.72 | 2017-09-20 19:35:00 | 2017-09-24 09:31:00 | n |
| 119872 | IIEES | KRBR | E | 709.3 | 0.2 | 2017-09-20 19:35:33 | 2017-09-24 09:31:00 | n |
| 119873 | IIEES | KRBR | N | 795.8 | 0.55 | 2017-09-20 19:35:33 | 2017-09-24 09:31:00 | n |
| 119874 | IIEES | CHBR | E | 41.9 | 0.32 | 2017-09-20 19:36:10 | 2017-09-24 09:31:00 | n |
| 119875 | IIEES | CHBR | N | 63.4 | 0.38 | 2017-09-20 19:36:15 | 2017-09-24 09:31:00 | n |
| 119876 | IIEES | BSRN | N | 38.1 | 0.57 | 2017-09-20 19:36:51 | 2017-09-24 09:31:00 | n |
| 119877 | IIEES | BSRN | E | 31.3 | 0.28 | 2017-09-20 19:36:52 | 2017-09-24 09:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-09-20 19:34:39 | -0.05 | y | 97.2 | 234 | |||
| IIEES | BNDS | N | Sg | E | 2017-09-20 19:34:52 | 0.15 | y | 97.2 | 234 | |||
| IIEES | KRBR | Z | Pn | E | 2017-09-20 19:34:59 | 0.28 | y | 230 | 355 | |||
| IIEES | KRBR | N | Sg | E | 2017-09-20 19:35:28 | -0.11 | y | 230 | 355 | |||
| IIEES | GHIR | Z | Pn | E | 2017-09-20 19:35:17 | -1.8 | n | 4 | 394 | 277 | ||
| IIEES | ZHSF | Z | Pn | E | 2017-09-20 19:35:17 | -5.31 | n | 4 | 417 | 62 | ||
| IIEES | CHBR | Z | Pn | E | 2017-09-20 19:35:24 | -0.28 | y | 434 | 126 | |||
| IIEES | BSRN | Z | Pn | E | 2017-09-20 19:35:32 | 0.46 | y | 495 | 24 | |||
| IIEES | TABS | Z | Pn | E | 2017-09-20 19:35:50 | 0.3 | y | 636 | 1 | |||
| IIEES | NASN | Z | Pn | E | 2017-09-20 19:35:53 | -0.93 | y | 673 | 325 | |||
| IIEES | SHRO | Z | Pn | E | 2017-09-20 19:36:22 | -0.31 | y | 902 | 354 | |||
