Magnitude |
:3.6 |
| Date & Time (UTC) | 2017-09-07 12:15:20.9 |
| Date & Time (Local) | 1396/6/16 16:45:20.9 |

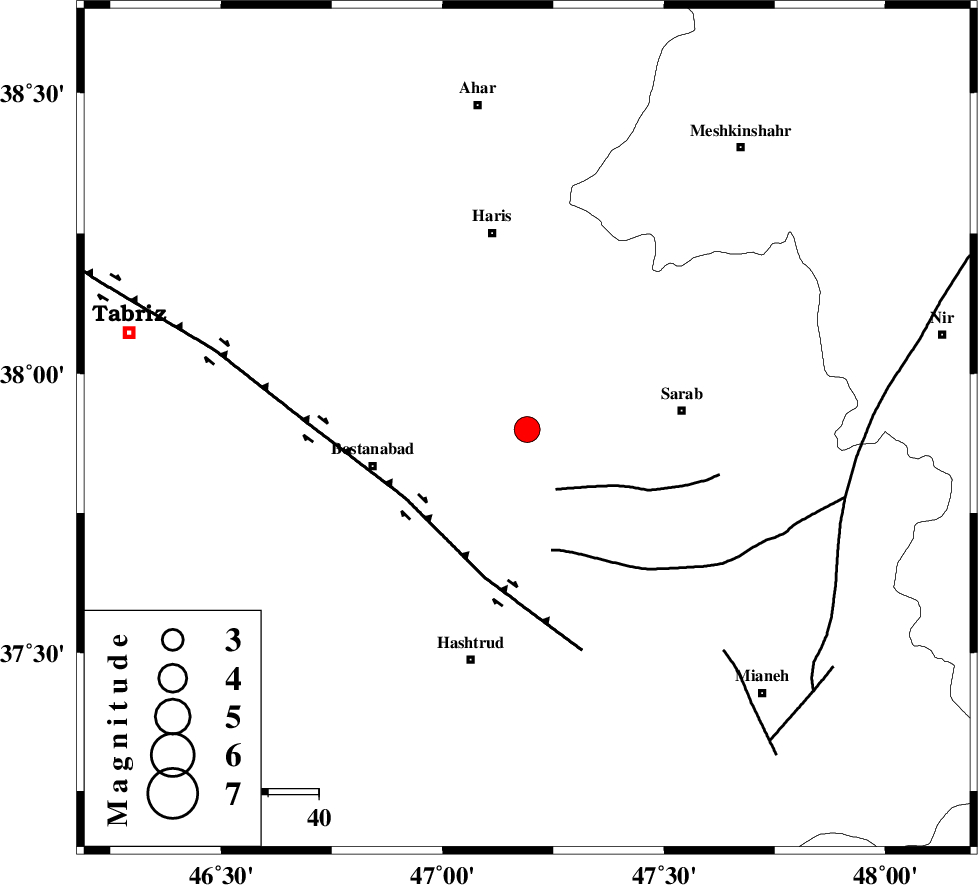

| Location | Lat:37.9 Lon: 47.191 |
| Region | Azarbaijan Sharghi Province, 31 km -West of Sarab |
Nearest Cities |
|
| 5 km North of Sharabian, Azarbaijan Sharghi Province | |
| 12 km North East of Sarcheshmeh, Azarbaijan Sharghi Province | |
| 17 km North West of Abarghan, Azarbaijan Sharghi Province | |
| 17 km South of Mehraban, Azarbaijan Sharghi Province | |
| 23 km East of Kord kandi, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 13 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 101 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119964 | IIEES | GRMI | E | 1880.4 | 0.22 | 2017-09-07 12:15:56 | 2017-09-25 11:19:00 | n |
| 119965 | IIEES | GRMI | N | 767.5 | 0.21 | 2017-09-07 12:15:56 | 2017-09-25 11:19:00 | n |
| 119966 | IIEES | ZNJK | E | 343.1 | 0.28 | 2017-09-07 12:16:16 | 2017-09-25 11:19:00 | n |
| 119967 | IIEES | ZNJK | N | 450.1 | 0.4 | 2017-09-07 12:16:17 | 2017-09-25 11:19:00 | n |
| 119968 | IIEES | GIDE | E | 227.6 | 0.25 | 2017-09-07 12:16:43 | 2017-09-25 11:19:00 | n |
| 119969 | IIEES | GIDE | N | 260.2 | 0.5 | 2017-09-07 12:16:45 | 2017-09-25 11:19:00 | n |
| 119970 | IIEES | THKV | E | 174.4 | 0.34 | 2017-09-07 12:17:18 | 2017-09-25 11:19:00 | n |
| 119971 | IIEES | THKV | N | 129.4 | 0.59 | 2017-09-07 12:17:20 | 2017-09-25 11:19:00 | n |
| 119972 | IIEES | CHTH | N | 38.7 | 0.5 | 2017-09-07 12:17:22 | 2017-09-25 11:19:00 | n |
| 119973 | IIEES | DAMV | E | 45.2 | 0.75 | 2017-09-07 12:17:45 | 2017-09-25 11:19:00 | n |
| 119974 | IIEES | DAMV | N | 37 | 0.45 | 2017-09-07 12:17:45 | 2017-09-25 11:19:00 | n |
| 119975 | IIEES | GHVR | N | 36.5 | 0.68 | 2017-09-07 12:17:56 | 2017-09-25 11:19:00 | n |
| 119976 | IIEES | GHVR | E | 46.9 | 0.78 | 2017-09-07 12:18:00 | 2017-09-25 11:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2017-09-07 12:15:40 | -0.26 | y | 118 | 31 | |||
| IIEES | GRMI | N | Sg | E | 2017-09-07 12:15:55 | 0.24 | y | 118 | 31 | |||
| IIEES | ZNJK | Z | Pg | E | 2017-09-07 12:15:51 | -0.56 | y | 190 | 135 | |||
| IIEES | ZNJK | N | Sg | E | 2017-09-07 12:16:15 | -0.08 | y | 190 | 135 | |||
| IIEES | GIDE | Z | Pn | E | 2017-09-07 12:16:01 | -0.13 | y | 264 | 113 | |||
| IIEES | MAKU | Z | Pn | E | 2017-09-07 12:16:02 | -0.14 | y | 272 | 307 | |||
| IIEES | SNGE | Z | Pn | E | 2017-09-07 12:16:07 | 0.12 | y | 312 | 177 | |||
| IIEES | THKV | Z | Pn | E | 2017-09-07 12:16:17 | -0.14 | y | 396 | 123 | |||
| IIEES | CHTH | Z | Pn | E | 2017-09-07 12:16:21 | 0.8 | y | 414 | 121 | |||
| IIEES | ASAO | Z | Pn | E | 2017-09-07 12:16:25 | 0.52 | y | 451 | 145 | |||
| IIEES | ILBA | Z | Pn | E | 2017-09-07 12:16:28 | -0.01 | y | 483 | 191 | |||
| IIEES | DAMV | Z | Pn | E | 2017-09-07 12:16:35 | 5.03 | n | 4 | 495 | 119 | ||
| IIEES | GHVR | Z | Pn | E | 2017-09-07 12:16:33 | -0.05 | y | 526 | 135 | |||
| IIEES | MRVT | Z | Pn | E | 2017-09-07 12:17:05 | -0.77 | y | 784 | 89 | |||
| IIEES | SHRO | Z | Pn | E | 2017-09-07 12:17:10 | 0.72 | y | 813 | 102 | |||
