Magnitude |
:2.7 |
| Date & Time (UTC) | 2017-09-25 20:16:41.7 |
| Date & Time (Local) | 1396/7/3 23:46:41.7 |

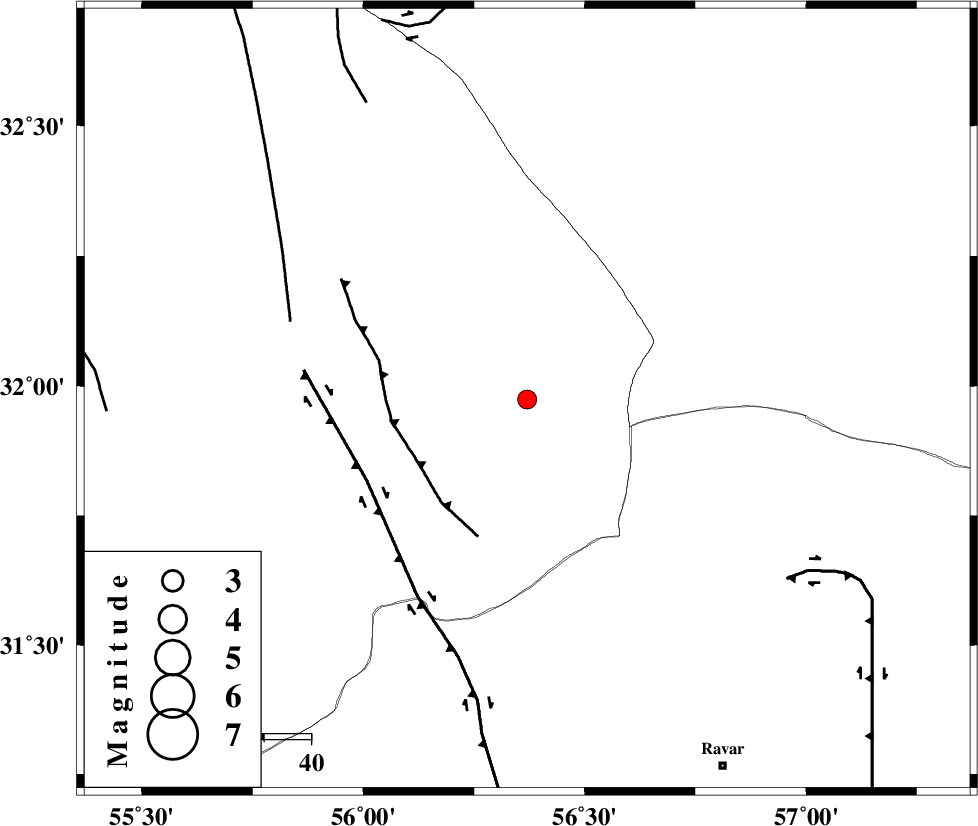

| Location | Lat:31.974 Lon: 56.37 |
| Region | Yazd Province, 89 km North-West of Ravar |
Nearest Cities |
|
| 34 km North East of Behabad, Yazd Province | |
| 37 km North East of Asfih, Yazd Province | |
| 38 km North East of Benestan, Yazd Province | |
| 61 km North East of Kushk, Yazd Province | |
| 62 km North of Kuhbanan, Kerman Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 27 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 38 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 53 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119989 | IIEES | YZKH | E | 58.4 | 0.16 | 2017-09-25 20:17:35 | 2017-09-26 05:14:00 | n |
| 119990 | IIEES | YZKH | N | 50.5 | 0.2 | 2017-09-25 20:17:35 | 2017-09-26 05:14:00 | n |
| 119991 | IIEES | TABS | N | 35 | 0.32 | 2017-09-25 20:17:44 | 2017-09-26 05:14:00 | n |
| 119992 | IIEES | KRBR | N | 97 | 0.3 | 2017-09-25 20:17:47 | 2017-09-26 05:14:00 | n |
| 119993 | IIEES | KRBR | E | 101 | 0.3 | 2017-09-25 20:17:50 | 2017-09-26 05:14:00 | n |
| 119994 | IIEES | SHRO | E | 7.9 | 0.61 | 2017-09-25 20:18:55 | 2017-09-26 05:14:00 | n |
| 119995 | IIEES | SHRO | N | 6.5 | 0.38 | 2017-09-25 20:18:59 | 2017-09-26 05:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2017-09-25 20:17:10 | 0 | y | 174 | 286 | |||
| IIEES | TABS | Z | Pn | E | 2017-09-25 20:17:13 | -0.12 | y | 199 | 20 | |||
| IIEES | TABS | N | Sg | E | 2017-09-25 20:17:38 | 0.15 | y | 199 | 20 | |||
| IIEES | KRBR | Z | Pn | E | 2017-09-25 20:17:17 | 0.47 | y | 224 | 170 | |||
| IIEES | KRBR | N | Sg | E | 2017-09-25 20:17:45 | -0.14 | y | 224 | 170 | |||
| IIEES | BSRN | Z | Pn | E | 2017-09-25 20:17:21 | -0.47 | y | 261 | 89 | |||
| IIEES | NASN | Z | Pn | E | 2017-09-25 20:17:32 | -0.05 | y | 347 | 286 | |||
| IIEES | SHRT | Z | Pn | E | 2017-09-25 20:17:40 | 0.44 | y | 411 | 62 | |||
| IIEES | SHRO | Z | Pn | E | 2017-09-25 20:17:44 | -0.26 | y | 449 | 356 | |||
