Magnitude |
:3.3 |
| Date & Time (UTC) | 2017-09-25 22:20:30.3 |
| Date & Time (Local) | 1396/7/4 01:50:30.3 |

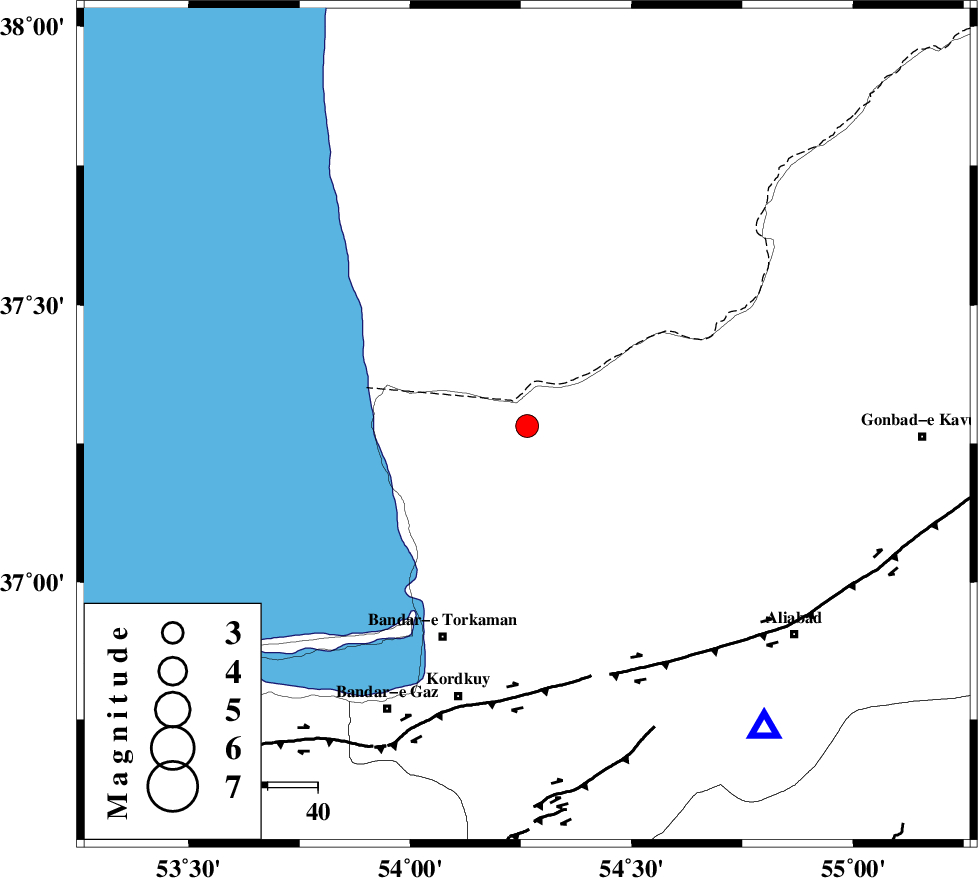

| Location | Lat:37.282 Lon: 54.264 |
| Region | Golestan Province, 34 km North-West of Aq Qaleh |
Nearest Cities |
|
| 26 km North East of Gomishtappeh, Golestan Province | |
| 30 km North of Banavar, Golestan Province | |
| 34 km North West of Aq Qaleh, Golestan Province | |
| 37 km North West of Qanqarmeh, Golestan Province | |
| 45 km North West of Nodeh malek, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 52 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 76 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 80 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | >4 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119996 | IIEES | DAMV | E | 78.8 | 0.36 | 2017-09-25 22:21:52 | 2017-09-26 05:14:00 | n |
| 119997 | IIEES | BJRD | N | 148.9 | 0.99 | 2017-09-25 22:22:05 | 2017-09-26 05:14:00 | n |
| 119998 | IIEES | GHVR | E | 31 | 0.45 | 2017-09-25 22:22:38 | 2017-09-26 05:14:00 | n |
| 119999 | IIEES | ZNJK | E | 20.2 | 0.52 | 2017-09-25 22:22:32 | 2017-09-26 05:14:00 | n |
| 120000 | IIEES | ZNJK | N | 32.6 | 0.38 | 2017-09-25 22:22:32 | 2017-09-26 05:14:00 | n |
| 120001 | IIEES | YZKH | N | 10.5 | 0.7 | 2017-09-25 22:22:44 | 2017-09-26 05:14:00 | n |
| 120002 | IIEES | YZKH | E | 11.5 | 0.69 | 2017-09-25 22:22:45 | 2017-09-26 05:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2017-09-25 22:20:57 | -0.2 | y | 167 | 75 | |||
| IIEES | MRVT | N | Sg | E | 2017-09-25 22:21:18 | 0.03 | y | 167 | 75 | |||
| IIEES | SHRO | Z | Pn | E | 2017-09-25 22:21:04 | 0.08 | y | 211 | 132 | |||
| IIEES | DAMV | Z | Pn | E | 2017-09-25 22:21:12 | 0.13 | y | 275 | 229 | |||
| IIEES | DAMV | N | Sg | E | 2017-09-25 22:21:47 | -0.41 | y | 275 | 229 | |||
| IIEES | BJRD | Z | Pn | E | 2017-09-25 22:21:12 | -0.12 | y | 282 | 80 | |||
| IIEES | CHTH | Z | Pn | E | 2017-09-25 22:21:18 | 0.21 | y | 319 | 242 | |||
| IIEES | GHVR | Z | Pn | E | 2017-09-25 22:21:29 | 0.45 | y | 413 | 222 | |||
| IIEES | TABS | Z | Pn | E | 2017-09-25 22:21:37 | 0.06 | y | 479 | 146 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-09-25 22:21:40 | -0.18 | y | 501 | 264 | |||
| IIEES | NASN | Z | Pn | E | 2017-09-25 22:21:42 | 0.31 | y | 515 | 195 | |||
| IIEES | YZKH | Z | Pn | E | 2017-09-25 22:21:45 | -0.33 | y | 543 | 177 | |||
