Magnitude |
:3.3 |
| Date & Time (UTC) | 2017-10-05 00:18:06.4 |
| Date & Time (Local) | 1396/7/13 03:48:06.4 |

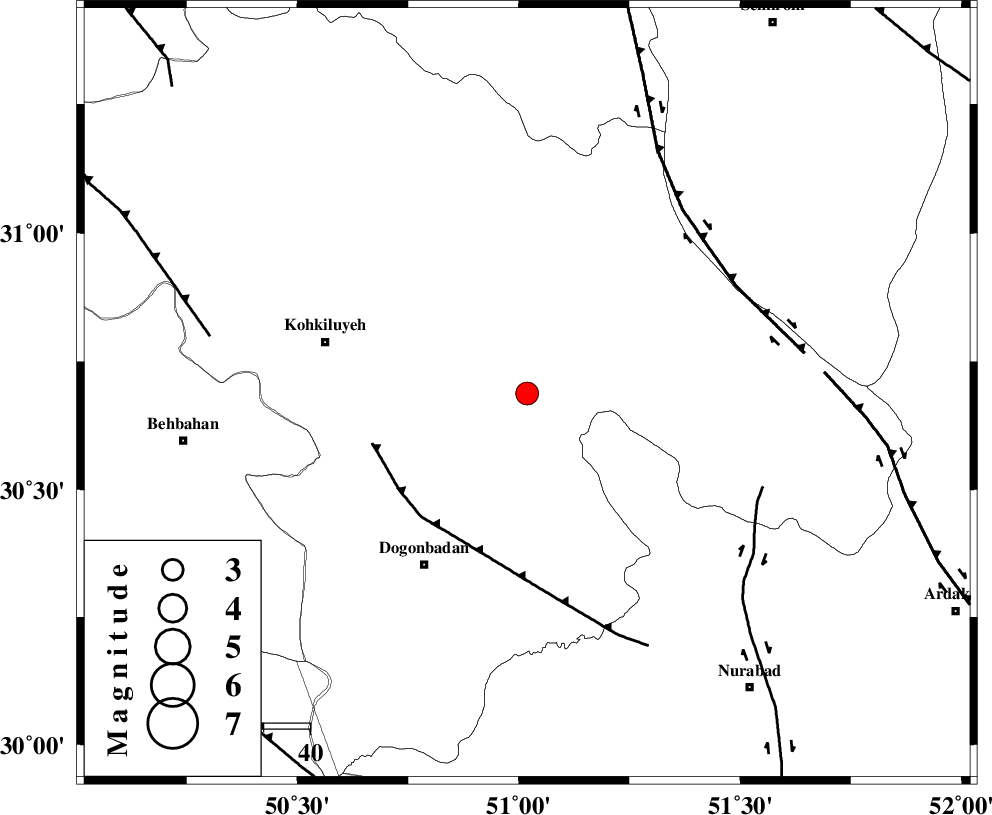

| Location | Lat:30.687 Lon: 51.019 |
| Region | Kohkiluieh va boyerahmad Province, 45 km South-East of Dehdasht |
Nearest Cities |
|
| 26 km North of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 29 km South West of Chitab, Kohkiluieh va boyerahmad Province | |
| 34 km South East of Savari, Kohkiluieh va boyerahmad Province | |
| 34 km North West of Sepidar, Kohkiluieh va boyerahmad Province | |
| 34 km South of Margun, Kohkiluieh va boyerahmad Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 35 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 51 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 55 km | |
| Number of Phases | 11 |
| RMS | 0.7 |
| Number of Stations | 11 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120224 | IIEES | AHRM | E | 231.4 | 0.4 | 2017-10-05 00:19:08 | 2017-10-07 08:26:00 | n |
| 120225 | IIEES | AHRM | N | 327.2 | 0.57 | 2017-10-05 00:19:09 | 2017-10-07 08:26:00 | n |
| 120226 | IIEES | GHIR | E | 63.2 | 0.63 | 2017-10-05 00:19:47 | 2017-10-07 08:26:00 | n |
| 120227 | IIEES | GHIR | N | 93.1 | 0.36 | 2017-10-05 00:19:49 | 2017-10-07 08:26:00 | n |
| 120228 | IIEES | ASAO | N | 30 | 0.69 | 2017-10-05 00:19:58 | 2017-10-07 08:26:00 | n |
| 120229 | IIEES | DAMV | E | 10.1 | 0.41 | 2017-10-05 00:20:22 | 2017-10-07 08:26:00 | n |
| 120230 | IIEES | ILBA | N | 12.3 | 0.62 | 2017-10-05 00:20:57 | 2017-10-07 08:26:00 | n |
| 120231 | IIEES | ILBA | E | 8.5 | 0.37 | 2017-10-05 00:21:06 | 2017-10-07 08:26:00 | n |
| 120232 | IIEES | BNDS | N | 12.4 | 0.47 | 2017-10-05 00:20:42 | 2017-10-07 08:26:00 | n |
| 120233 | IIEES | BNDS | E | 10.1 | 0.39 | 2017-10-05 00:20:43 | 2017-10-07 08:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2017-10-05 00:18:40 | 0.71 | y | 204 | 172 | |||
| IIEES | NASN | Z | Pn | E | 2017-10-05 00:18:50 | 0.3 | y | 289 | 35 | |||
| IIEES | GHIR | Z | Pn | E | 2017-10-05 00:18:54 | -0.8 | y | 327 | 144 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-10-05 00:18:58 | -0.24 | y | 353 | 344 | |||
| IIEES | YZKH | Z | Pn | E | 2017-10-05 00:19:03 | 0.61 | y | 388 | 60 | |||
| IIEES | GHVR | Z | Pn | E | 2017-10-05 00:19:07 | 0.75 | y | 421 | 3 | |||
| IIEES | ASAO | Z | Pn | E | 2017-10-05 00:19:08 | -0.06 | y | 438 | 348 | |||
| IIEES | DAMV | Z | Pn | E | 2017-10-05 00:19:22 | -1.36 | y | 555 | 9 | |||
| IIEES | ILBA | Z | Pn | E | 2017-10-05 00:19:19 | -4.14 | n | 4 | 559 | 307 | ||
| IIEES | BNDS | Z | Pn | E | 2017-10-05 00:19:31 | -0.49 | y | 620 | 125 | |||
| IIEES | TABS | Z | Pn | E | 2017-10-05 00:19:36 | -0.05 | y | 662 | 59 | |||
