Magnitude |
:3.5 |
| Date & Time (UTC) | 2017-10-10 04:41:37.4 |
| Date & Time (Local) | 1396/7/18 08:11:37.4 |

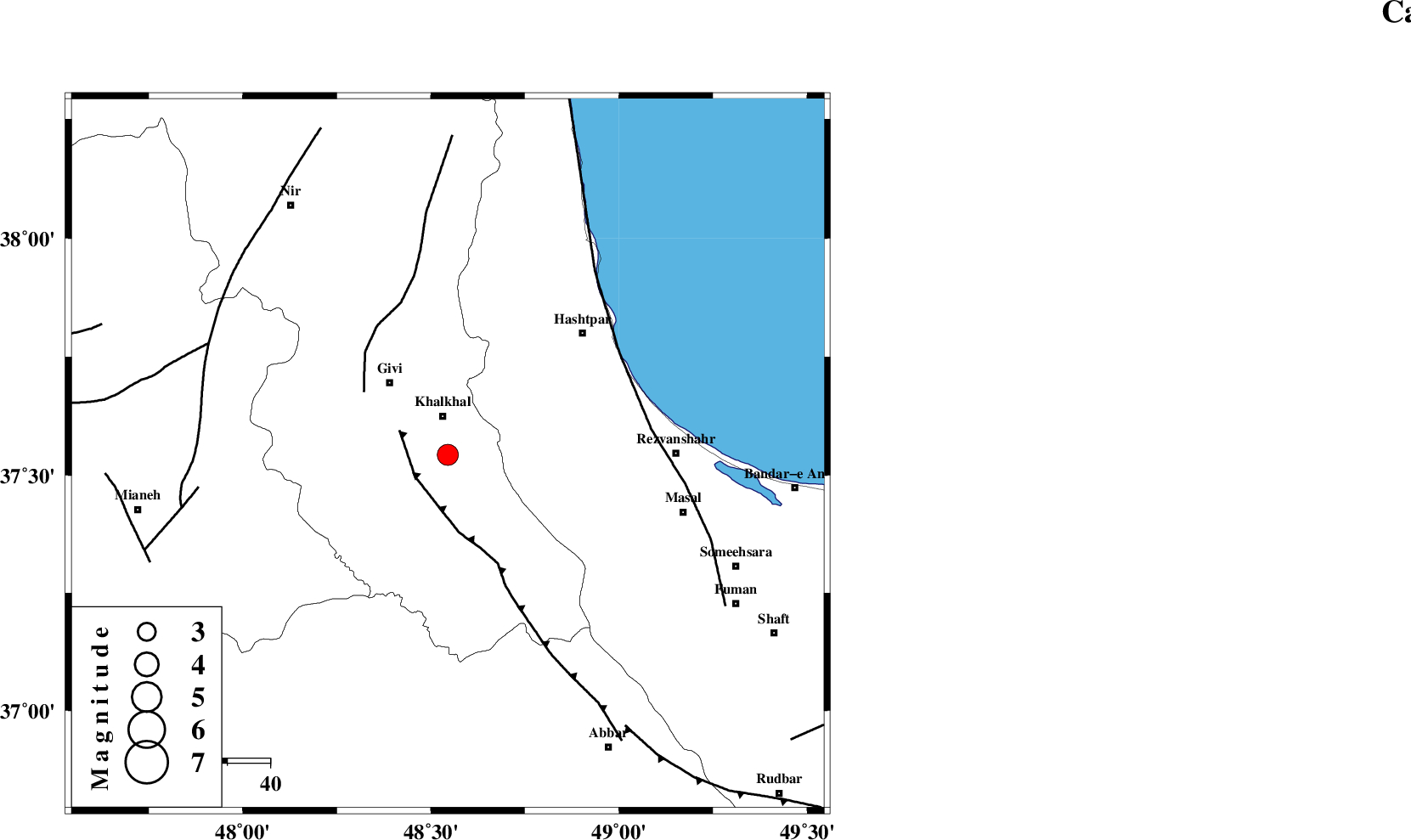

| Location | Lat:37.543 Lon: 48.545 |
| Region | Ardebil Province, 9 km of Khalkhal |
Nearest Cities |
|
| 7 km of Khojin, Ardebil Province | |
| 9 km of Khalkhal, Ardebil Province | |
| 15 km East of Gazaz, Ardebil Province | |
| 22 km South East of Givi, Ardebil Province | |
| 23 km North West of Kalur, Ardebil Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 9 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 25 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 47 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >3 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120322 | IIEES | GIDE | E | 977.9 | 0.27 | 2017-10-10 04:42:22 | 2017-10-10 05:24:00 | n |
| 120323 | IIEES | GIDE | N | 1470.4 | 0.32 | 2017-10-10 04:42:23 | 2017-10-10 05:24:00 | n |
| 120324 | IIEES | GRMI | E | 595.8 | 0.16 | 2017-10-10 04:42:23 | 2017-10-10 05:24:00 | n |
| 120325 | IIEES | GRMI | N | 938.1 | 0.44 | 2017-10-10 04:42:23 | 2017-10-10 05:24:00 | n |
| 120326 | IIEES | THKV | E | 176 | 0.5 | 2017-10-10 04:43:00 | 2017-10-10 05:24:00 | n |
| 120327 | IIEES | THKV | N | 202.8 | 0.5 | 2017-10-10 04:43:00 | 2017-10-10 05:24:00 | n |
| 120328 | IIEES | DAMV | E | 56 | 0.48 | 2017-10-10 04:43:29 | 2017-10-10 05:24:00 | n |
| 120329 | IIEES | GHVR | N | 38.1 | 0.51 | 2017-10-10 04:43:51 | 2017-10-10 05:24:00 | n |
| 120330 | IIEES | GHVR | E | 48.4 | 0.58 | 2017-10-10 04:43:54 | 2017-10-10 05:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2017-10-10 04:41:53 | -0.53 | y | 97.6 | 173 | |||
| IIEES | ZNJK | N | Sg | E | 2017-10-10 04:42:06 | -0.16 | y | 97.6 | 173 | |||
| IIEES | GIDE | Z | Pg | E | 2017-10-10 04:42:00 | -0.25 | y | 139 | 119 | |||
| IIEES | GRMI | Z | Pg | E | 2017-10-10 04:42:02 | -0.53 | y | 152 | 338 | |||
| IIEES | GRMI | N | Sg | E | 2017-10-10 04:42:20 | -0.28 | y | 152 | 338 | |||
| IIEES | THKV | Z | Pn | E | 2017-10-10 04:42:20 | 0.72 | y | 276 | 130 | |||
| IIEES | SNGE | Z | Pn | E | 2017-10-10 04:42:23 | 1.68 | n | 4 | 292 | 202 | ||
| IIEES | CHTH | Z | Pn | E | 2017-10-10 04:42:22 | 0.83 | y | 293 | 127 | |||
| IIEES | ASAO | Z | Pn | E | 2017-10-10 04:42:29 | -0.39 | y | 358 | 158 | |||
| IIEES | DAMV | Z | Pn | E | 2017-10-10 04:42:31 | -0.27 | y | 373 | 124 | |||
| IIEES | MAKU | Z | Pn | E | 2017-10-10 04:42:35 | 1.17 | y | 392 | 302 | |||
| IIEES | GHVR | Z | Pn | E | 2017-10-10 04:42:36 | -0.09 | y | 418 | 144 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-10-10 04:42:40 | 0.26 | y | 441 | 163 | |||
| IIEES | ILBA | Z | Pn | E | 2017-10-10 04:42:44 | -0.07 | y | 484 | 207 | |||
| IIEES | NASN | Z | Pn | E | 2017-10-10 04:43:06 | -0.18 | y | 654 | 142 | |||
| IIEES | SHRO | Z | Pn | E | 2017-10-10 04:43:10 | -0.21 | y | 688 | 102 | |||
