Magnitude |
:3.5 |
| Date & Time (UTC) | 2017-10-10 17:02:19.2 |
| Date & Time (Local) | 1396/7/18 20:32:19.2 |

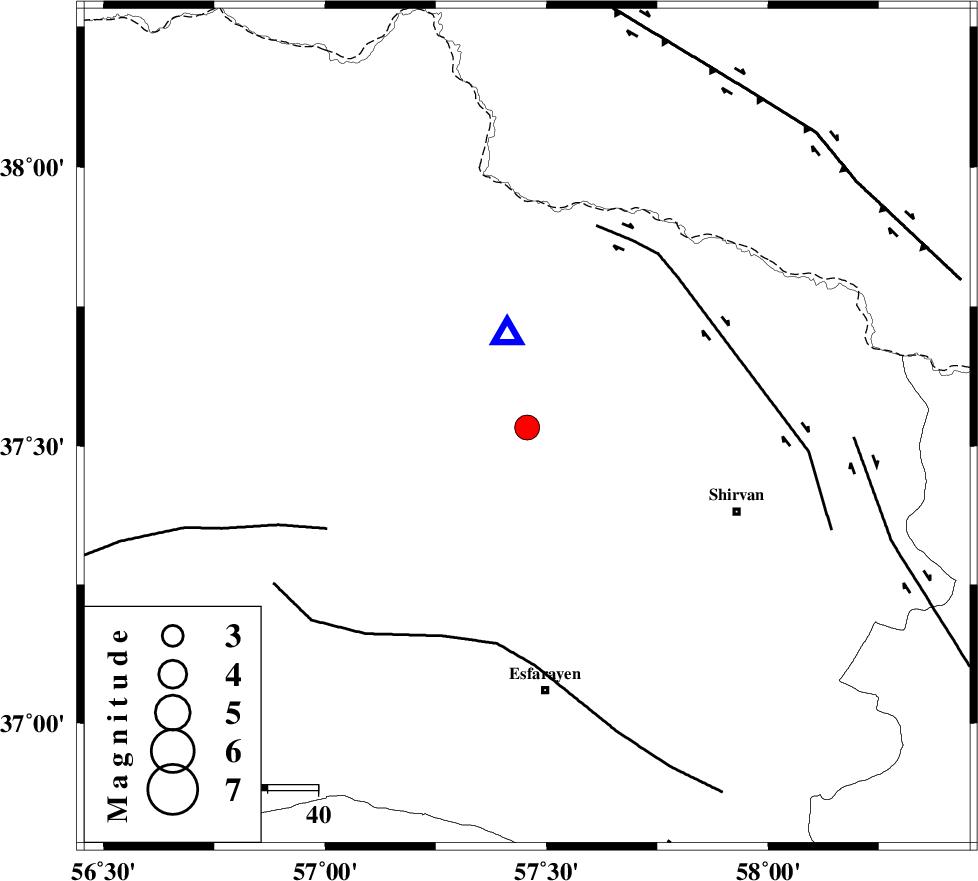

| Location | Lat:37.533 Lon: 57.456 |
| Region | Khorasan(north) Province, 13 km -East of Bojnurd |
Nearest Cities |
|
| 3 km North of Hesar-egarmkhanh, Khorasan(north) Province | |
| 13 km North East of Bojnurd, Khorasan(north) Province | |
| 13 km North East of Void, Khorasan(north) Province | |
| 31 km West of Tukur, Khorasan(north) Province | |
| 35 km South West of Yangi ghale-ye bala, Khorasan(north) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 42 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 44 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 45 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120339 | IIEES | BJRD | E | 24209.2 | 0.13 | 2017-10-10 17:02:27 | 2017-10-11 04:45:00 | n |
| 120340 | IIEES | BJRD | N | 10297.3 | 0.38 | 2017-10-10 17:02:29 | 2017-10-11 04:45:00 | n |
| 120341 | IIEES | MRVT | N | 1290.9 | 0.42 | 2017-10-10 17:03:00 | 2017-10-11 04:45:00 | n |
| 120342 | IIEES | MRVT | E | 1149.6 | 0.26 | 2017-10-10 17:03:02 | 2017-10-11 04:45:00 | n |
| 120343 | IIEES | DAMV | E | 15.6 | 0.55 | 2017-10-10 17:05:03 | 2017-10-11 04:45:00 | n |
| 120344 | IIEES | DAMV | N | 15.2 | 0.63 | 2017-10-10 17:05:05 | 2017-10-11 04:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2017-10-10 17:02:23 | 0.03 | y | 18.9 | 347 | |||
| IIEES | MRVT | Z | Pg | E | 2017-10-10 17:02:39 | -0.15 | y | 121 | 277 | |||
| IIEES | SHRO | Z | Pn | E | 2017-10-10 17:02:53 | 0.28 | y | 213 | 218 | |||
| IIEES | SHRO | N | Sg | E | 2017-10-10 17:03:19 | -0.12 | y | 213 | 218 | |||
| IIEES | TABS | Z | Pn | E | 2017-10-10 17:03:20 | 0.19 | y | 432 | 184 | |||
| IIEES | SHRT | Z | Pn | E | 2017-10-10 17:03:28 | -0.36 | y | 502 | 148 | |||
| IIEES | DAMV | Z | Pn | E | 2017-10-10 17:03:36 | 2.66 | n | 4 | 534 | 248 | ||
| IIEES | YZKH | Z | Pn | E | 2017-10-10 17:03:44 | -0.55 | y | 627 | 205 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-10 17:03:46 | 0.15 | y | 636 | 166 | |||
| IIEES | GHVR | Z | Pn | E | 2017-10-10 17:03:48 | 0.49 | y | 654 | 241 | |||
| IIEES | NASN | Z | Pn | E | 2017-10-10 17:03:51 | 0.04 | y | 674 | 220 | |||
