Magnitude |
:2.6 |
| Date & Time (UTC) | 2017-09-27 18:29:49.2 |
| Date & Time (Local) | 1396/7/5 21:59:49.2 |

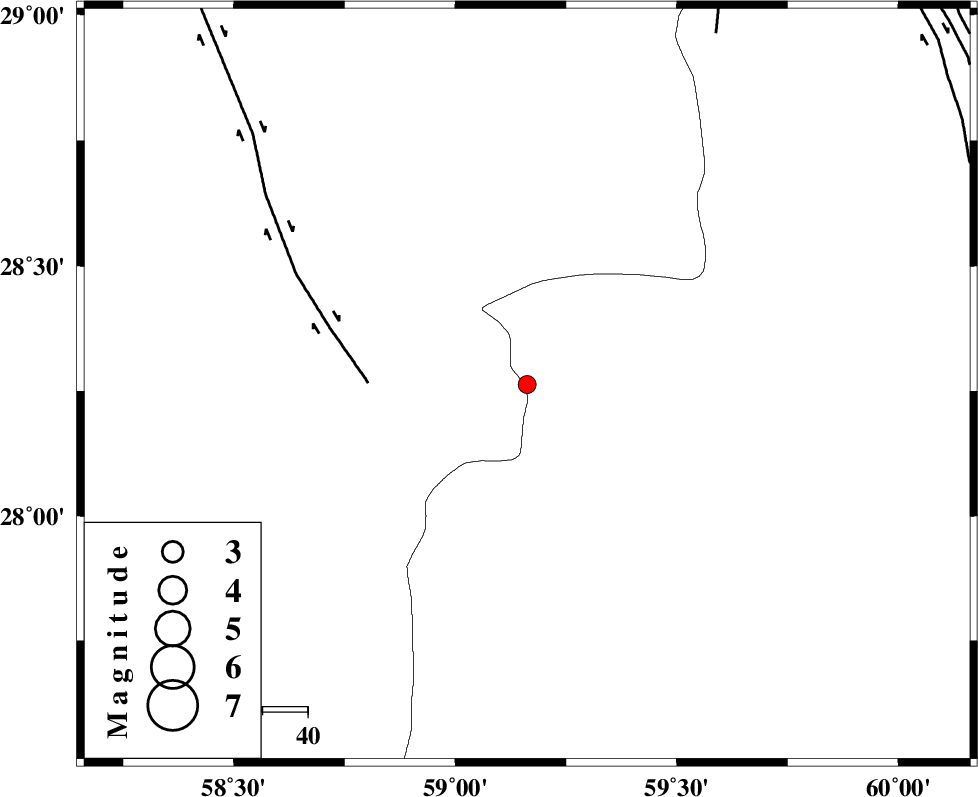

| Location | Lat:28.263 Lon: 59.162 |
| Region | Sistan va Baloochestan Province, 123 km South-East of Bam |
Nearest Cities |
|
| 50 km South of Hoseynabad, Kerman Province | |
| 58 km South East of Mohammadabad-e gonbaki, Kerman Province | |
| 69 km North East of Borj-e abbasabad, Kerman Province | |
| 72 km South East of Void, Kerman Province | |
| 82 km South East of Fahroj, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 35 km | |
| KANURAK_F (Length: 135 km) , Distance to epicenter: 88 km | |
| DAMAN_F (Length: 167 km) , Distance to epicenter: 103 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >5 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120385 | IIEES | KRBR | E | 20.2 | 0.26 | 2017-09-27 18:31:20 | 2017-10-11 08:24:00 | n |
| 120386 | IIEES | KRBR | N | 22.6 | 0.42 | 2017-09-27 18:31:22 | 2017-10-11 08:24:00 | n |
| 120387 | IIEES | BNDS | E | 20 | 0.44 | 2017-09-27 18:31:28 | 2017-10-11 08:24:00 | n |
| 120388 | IIEES | BNDS | N | 16.6 | 0.61 | 2017-09-27 18:31:28 | 2017-10-11 08:24:00 | n |
| 120389 | IIEES | BSRN | E | 9.9 | 0.3 | 2017-09-27 18:31:50 | 2017-10-11 08:24:00 | n |
| 120390 | IIEES | BSRN | N | 7.9 | 0.42 | 2017-09-27 18:31:58 | 2017-10-11 08:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZHSF | Z | Pn | E | 2017-09-27 18:30:23 | -0.63 | y | 217 | 46 | |||
| IIEES | ZHSF | N | Sg | E | 2017-09-27 18:30:51 | 0.3 | y | 217 | 46 | |||
| IIEES | KRBR | Z | Pn | E | 2017-09-27 18:30:34 | 0.04 | y | 302 | 310 | |||
| IIEES | BNDS | Z | Pn | E | 2017-09-27 18:30:35 | 0.46 | y | 310 | 253 | |||
| IIEES | BNDS | N | Sg | E | 2017-09-27 18:31:16 | -0.21 | y | 310 | 253 | |||
| IIEES | BSRN | Z | Pn | E | 2017-09-27 18:30:48 | 0.21 | y | 410 | 360 | |||
| IIEES | BSRN | N | Sg | E | 2017-09-27 18:31:43 | -0.12 | y | 410 | 360 | |||
