Magnitude |
:3.6 |
| Date & Time (UTC) | 2017-10-14 17:38:47.3 |
| Date & Time (Local) | 1396/7/22 21:08:47.3 |

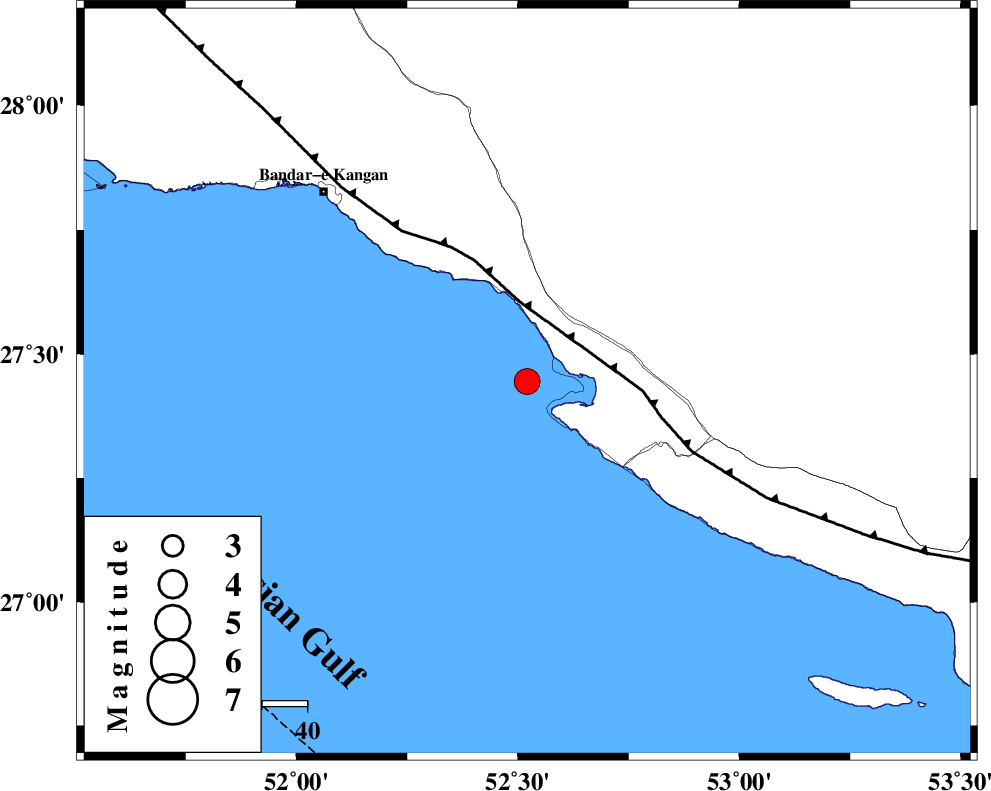

| Location | Lat:27.445 Lon: 52.521 |
| Region | Persian Gulf, 38 km South-West of Mehr |
Nearest Cities |
|
| 9 km of Bandar-e asaluyeh, Bushehr Province | |
| 28 km South West of Gallehdar, Fars Province | |
| 28 km North West of Chah-e mobarak, Bushehr Province | |
| 30 km South East of Bandar-e taheri, Bushehr Province | |
| 32 km South West of Ardavan-e olia, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 18 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 111 km | |
| QIR_F (Length: 130 km) , Distance to epicenter: 114 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 3 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120472 | IIEES | GHIR | N | 2459.5 | 0.45 | 2017-10-14 17:39:23 | 2017-10-15 06:41:00 | n |
| 120473 | IIEES | GHIR | E | 2975.9 | 0.54 | 2017-10-14 17:39:23 | 2017-10-15 06:41:00 | n |
| 120474 | IIEES | AHRM | N | 578.2 | 0.51 | 2017-10-14 17:39:51 | 2017-10-15 06:41:00 | n |
| 120475 | IIEES | AHRM | E | 315.1 | 0.57 | 2017-10-14 17:39:58 | 2017-10-15 06:41:00 | n |
| 120476 | IIEES | BNDS | N | 90.2 | 0.44 | 2017-10-14 17:40:45 | 2017-10-15 06:41:00 | n |
| 120477 | IIEES | BNDS | E | 84.2 | 0.22 | 2017-10-14 17:41:00 | 2017-10-15 06:41:00 | n |
| 120478 | IIEES | KRBR | E | 28.4 | 0.62 | 2017-10-14 17:40:58 | 2017-10-15 06:41:00 | n |
| 120479 | IIEES | KRBR | N | 32.9 | 0.72 | 2017-10-14 17:40:59 | 2017-10-15 06:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2017-10-14 17:39:05 | 0.06 | y | 104 | 26 | |||
| IIEES | AHRM | Z | Pg | E | 2017-10-14 17:39:19 | -0.1 | y | 198 | 323 | |||
| IIEES | AHRM | N | Sg | E | 2017-10-14 17:39:43 | 0.11 | y | 198 | 323 | |||
| IIEES | BNDS | Z | Pn | E | 2017-10-14 17:39:39 | 0.14 | y | 361 | 90 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-14 17:39:57 | 0.01 | y | 501 | 55 | |||
| IIEES | YZKH | Z | Pn | E | 2017-10-14 17:40:07 | -0.24 | y | 583 | 20 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-14 17:40:35 | -0.17 | y | 812 | 50 | |||
