Magnitude |
:3.4 |
| Date & Time (UTC) | 2017-10-13 15:36:42.4 |
| Date & Time (Local) | 1396/7/21 19:06:42.4 |

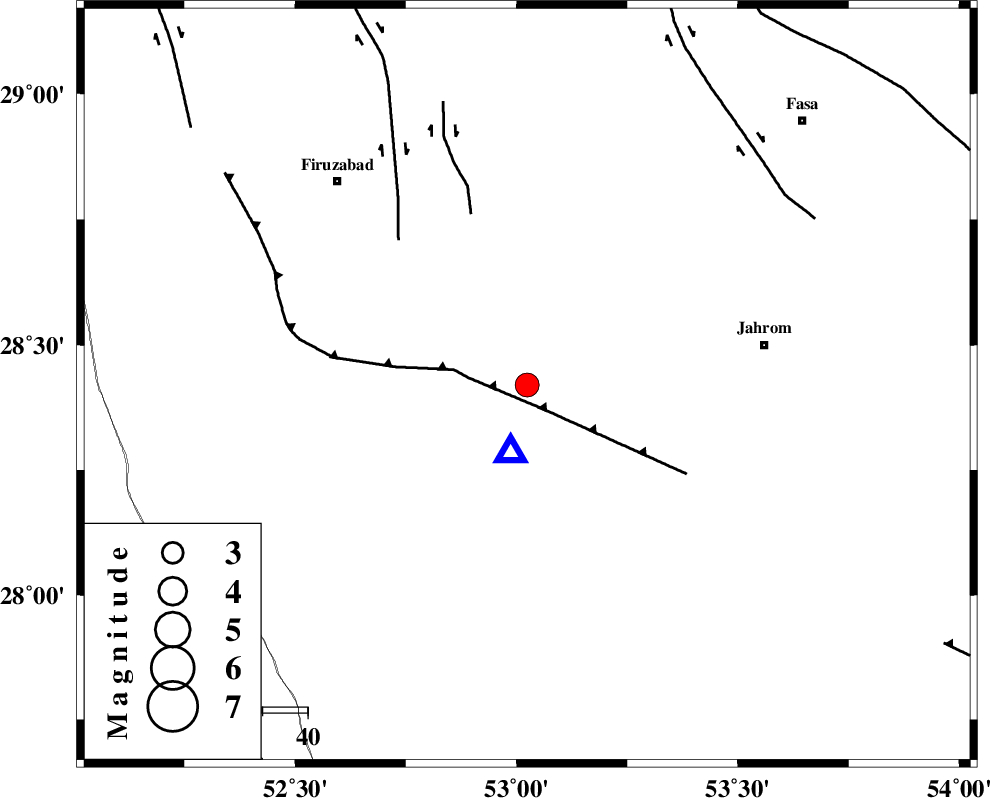

| Location | Lat:28.42 Lon: 53.024 |
| Region | Fars Province, 5 km of Qir va Karzin |
Nearest Cities |
|
| 5 km North of Shahrak-e jonubi, Fars Province | |
| 5 km of Qir va Karzin, Fars Province | |
| 12 km West of Fathabad, Fars Province | |
| 26 km South of Shaghun, Fars Province | |
| 30 km North West of Mobarakabad, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 6 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 40 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 43 km | |
| Number of Phases | 15 |
| RMS | 0.7 |
| Number of Stations | 13 |
| Error in Latitude | >7.8 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120489 | IIEES | AHRM | E | 386.6 | 0.53 | 2017-10-13 15:37:38 | 2017-10-15 09:18:00 | n |
| 120490 | IIEES | AHRM | N | 471.6 | 0.66 | 2017-10-13 15:37:46 | 2017-10-15 09:18:00 | n |
| 120491 | IIEES | KRBR | N | 44.8 | 0.63 | 2017-10-13 15:38:44 | 2017-10-15 09:18:00 | n |
| 120492 | IIEES | KRBR | E | 48.6 | 0.71 | 2017-10-13 15:38:48 | 2017-10-15 09:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2017-10-13 15:36:46 | -0.4 | y | 15.3 | 194 | |||
| IIEES | AHRM | Z | Pg | E | 2017-10-13 15:37:11 | 0.39 | y | 176 | 287 | |||
| IIEES | AHRM | N | Sg | E | 2017-10-13 15:37:32 | 0.38 | y | 176 | 287 | |||
| IIEES | BNDS | Z | Pn | E | 2017-10-13 15:37:30 | 0.11 | y | 330 | 109 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-13 15:37:40 | 0.95 | y | 403 | 64 | |||
| IIEES | KRBR | N | Sg | E | 2017-10-13 15:38:35 | 0.05 | y | 403 | 64 | |||
| IIEES | YZKH | Z | Pn | E | 2017-10-13 15:37:47 | 0.11 | y | 465 | 19 | |||
| IIEES | NASN | Z | Pn | E | 2017-10-13 15:37:50 | -0.02 | y | 486 | 358 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-10-13 15:38:11 | -0.31 | y | 658 | 334 | |||
| IIEES | TABS | Z | Pn | E | 2017-10-13 15:38:16 | -0.56 | y | 699 | 33 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-13 15:38:18 | 1.35 | y | 707 | 55 | |||
| IIEES | ASAO | Z | Pn | E | 2017-10-13 15:38:19 | -1.66 | y | 737 | 338 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-10-13 15:38:24 | -1 | y | 766 | 78 | |||
| IIEES | SHRO | Z | Pn | E | 2017-10-13 15:38:39 | -0.85 | y | 887 | 18 | |||
| IIEES | SNGE | Z | Pn | E | 2017-10-13 15:38:42 | -0.87 | y | 914 | 325 | |||
