Magnitude |
:2.7 |
| Date & Time (UTC) | 2017-10-21 03:45:13.4 |
| Date & Time (Local) | 1396/7/29 07:15:13.4 |
| Location | Lat:31.146 Lon: 54.867 |
| Region | Yazd Province, 63 km South-East of Mehriz |
Nearest Cities |
|
| 21 km South of Bahadoran, Yazd Province | |
| 48 km North West of Anar, Kerman Province | |
| 50 km North of Dehaj, Kerman Province | |
| 57 km North West of Hoseiynabad-e amin, Kerman Province | |
| 63 km South East of Mehriz, Yazd Province | |
| Depth | 14 km |
| Agency | |

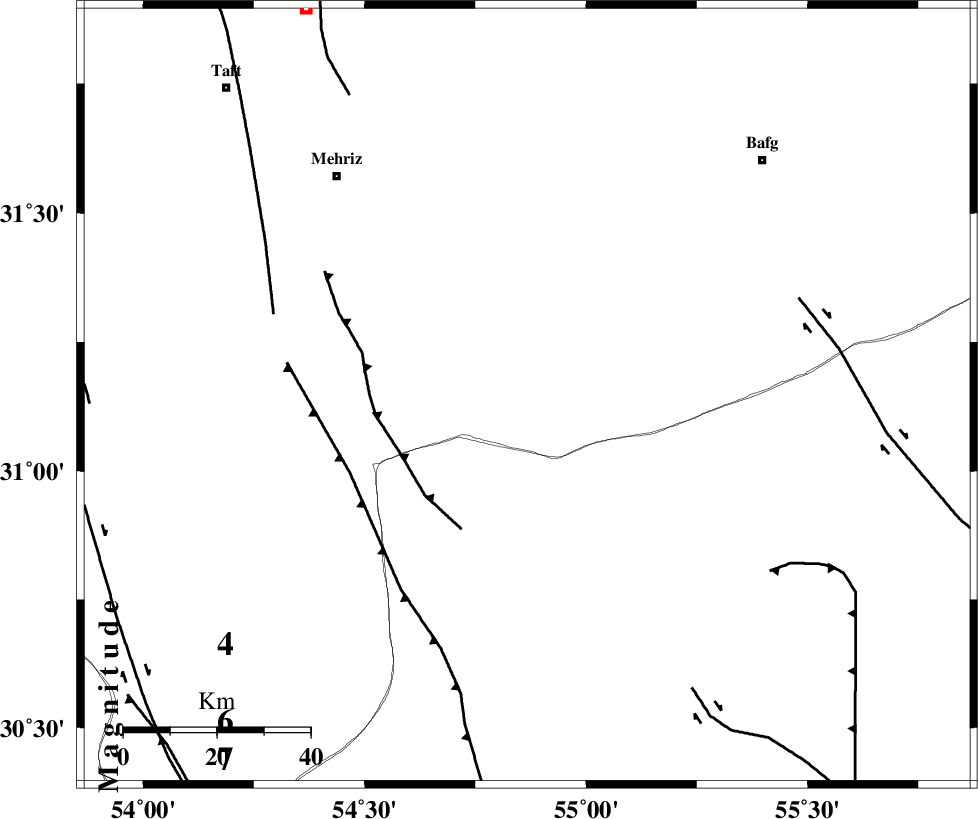

Faults within 150 km: |
|
| ANAR_F (Length: 91 km) , Distance to epicenter: 32 km | |
| ANAR_F (Length: 127 km) , Distance to epicenter: 34 km | |
| SHAHR_E_BABAK_F2 (Length: 272 km) , Distance to epicenter: 66 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120602 | IIEES | KRBR | E | 75.6 | 0.47 | 2017-10-21 03:46:20 | 2017-10-21 07:23:00 | n |
| 120603 | IIEES | KRBR | N | 82 | 0.52 | 2017-10-21 03:46:20 | 2017-10-21 07:23:00 | n |
| 120604 | IIEES | TABS | N | 11.8 | 0.35 | 2017-10-21 03:47:01 | 2017-10-21 07:23:00 | n |
| 120605 | IIEES | BSRN | N | 7.7 | 0.67 | 2017-10-21 03:47:18 | 2017-10-21 07:23:00 | n |
| 120606 | IIEES | BSRN | E | 8.2 | 0.47 | 2017-10-21 03:47:18 | 2017-10-21 07:23:00 | n |
| 120607 | IIEES | BNDS | E | 5.2 | 0.32 | 2017-10-21 03:47:06 | 2017-10-21 07:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pn | E | 2017-10-21 03:45:48 | -0.12 | y | 223 | 125 | |||
| IIEES | KRBR | N | Sg | E | 2017-10-21 03:46:16 | -0.09 | y | 223 | 125 | |||
| IIEES | NASN | Z | Pn | E | 2017-10-21 03:45:54 | 0.27 | y | 267 | 314 | |||
| IIEES | NASN | N | Sg | E | 2017-10-21 03:46:28 | -0.26 | y | 267 | 314 | |||
| IIEES | TABS | Z | Pn | E | 2017-10-21 03:46:04 | 0.21 | y | 349 | 37 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-21 03:46:12 | -0.12 | y | 414 | 76 | |||
| IIEES | BNDS | Z | Pn | E | 2017-10-21 03:46:15 | 0.15 | y | 434 | 163 | |||
