Magnitude |
:5 |
| Date & Time (UTC) | 2017-10-18 14:37:19.2 |
| Date & Time (Local) | 1396/7/26 18:07:19.2 |

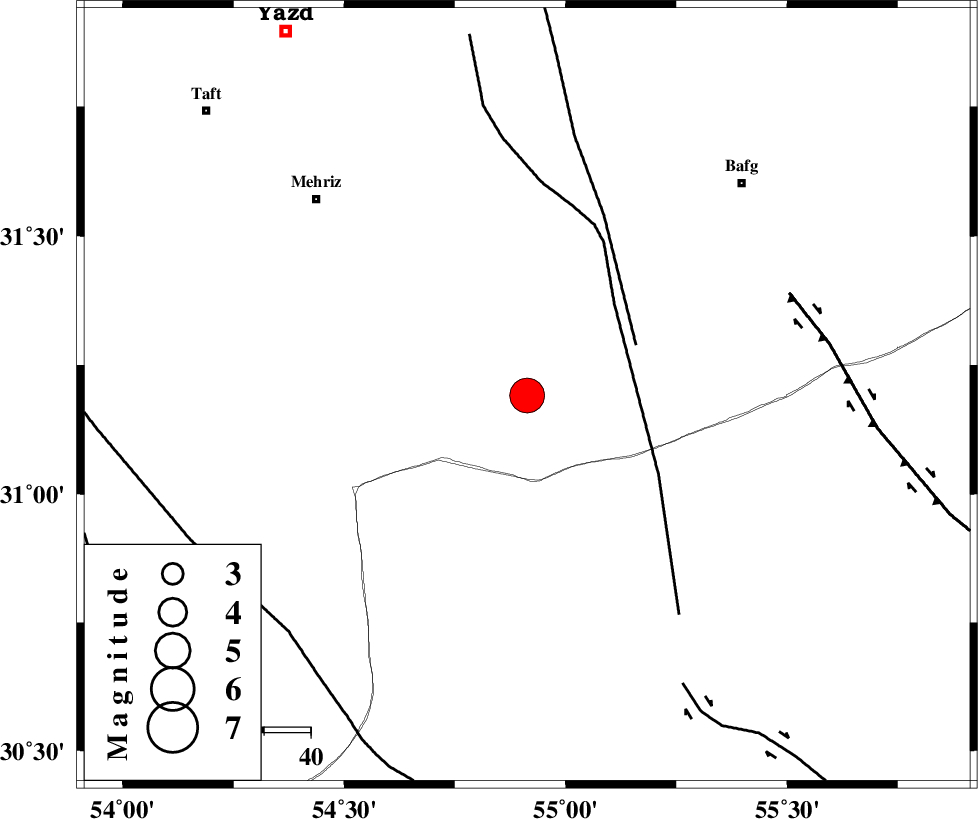

| Location | Lat:31.191 Lon: 54.913 |
| Region | Yazd Province, 62 km South-East of Mehriz |
Nearest Cities |
|
| 15 km South of Bahadoran, Yazd Province | |
| 49 km North West of Anar, Kerman Province | |
| 55 km North of Dehaj, Kerman Province | |
| 57 km North West of Hoseiynabad-e amin, Kerman Province | |
| 62 km South East of Mehriz, Yazd Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ANAR_F (Length: 91 km) , Distance to epicenter: 26 km | |
| ANAR_F (Length: 127 km) , Distance to epicenter: 27 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 60 km | |
| Number of Phases | 24 |
| RMS | 0.5 |
| Number of Stations | 24 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120612 | IIEES | KRBR | E | 17528.5 | 0.53 | 2017-10-18 14:38:25 | 2017-10-21 09:25:00 | n |
| 120613 | IIEES | KRBR | N | 20048.6 | 0.47 | 2017-10-18 14:38:28 | 2017-10-21 09:25:00 | n |
| 120614 | IIEES | TABS | N | 2261.2 | 0.46 | 2017-10-18 14:39:14 | 2017-10-21 09:25:00 | n |
| 120615 | IIEES | GHIR | E | 1808.5 | 0.59 | 2017-10-18 14:39:08 | 2017-10-21 09:25:00 | n |
| 120616 | IIEES | BSRN | N | 3276.8 | 0.61 | 2017-10-18 14:39:24 | 2017-10-21 09:25:00 | n |
| 120617 | IIEES | BSRN | E | 2119.4 | 0.78 | 2017-10-18 14:39:24 | 2017-10-21 09:25:00 | n |
| 120618 | IIEES | BNDS | E | 993.2 | 0.67 | 2017-10-18 14:39:15 | 2017-10-21 09:25:00 | n |
| 120619 | IIEES | GHVR | N | 1097.6 | 0.72 | 2017-10-18 14:39:57 | 2017-10-21 09:25:00 | n |
| 120620 | IIEES | GHVR | E | 1092.1 | 0.72 | 2017-10-18 14:40:00 | 2017-10-21 09:25:00 | n |
| 120621 | IIEES | SHRO | E | 563.6 | 0.31 | 2017-10-18 14:40:03 | 2017-10-21 09:25:00 | n |
| 120622 | IIEES | SHRO | N | 747.5 | 0.42 | 2017-10-18 14:40:11 | 2017-10-21 09:25:00 | n |
| 120623 | IIEES | DAMV | E | 399.4 | 0.65 | 2017-10-18 14:40:22 | 2017-10-21 09:25:00 | n |
| 120624 | IIEES | SHRT | N | 382.1 | 0.64 | 2017-10-18 14:40:14 | 2017-10-21 09:25:00 | n |
| 120625 | IIEES | SHRT | E | 444.5 | 0.73 | 2017-10-18 14:40:15 | 2017-10-21 09:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2017-10-18 14:37:41 | -0.98 | y | 136 | 347 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-18 14:37:53 | -0.66 | y | 222 | 127 | |||
| IIEES | NASN | Z | Pn | E | 2017-10-18 14:37:59 | -0.48 | y | 267 | 312 | |||
| IIEES | TABS | Z | Pn | E | 2017-10-18 14:38:09 | 0.5 | y | 343 | 37 | |||
| IIEES | GHIR | Z | Pn | E | 2017-10-18 14:38:12 | -0.15 | y | 372 | 211 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-18 14:38:17 | -0.21 | y | 409 | 77 | |||
| IIEES | AHRM | Z | Pn | E | 2017-10-18 14:38:20 | 0.29 | y | 434 | 234 | |||
| IIEES | BNDS | Z | Pn | E | 2017-10-18 14:38:20 | -0.28 | y | 438 | 163 | |||
| IIEES | GHVR | Z | Pn | E | 2017-10-18 14:38:29 | 0.84 | y | 501 | 318 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-10-18 14:38:35 | 0.47 | y | 544 | 303 | |||
| IIEES | SHRO | Z | Pn | E | 2017-10-18 14:38:34 | -0.41 | y | 544 | 11 | |||
| IIEES | DAMV | Z | Pn | E | 2017-10-18 14:38:37 | 0.39 | y | 563 | 332 | |||
| IIEES | SHRT | Z | Pn | E | 2017-10-18 14:38:38 | 0.37 | y | 574 | 60 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-10-18 14:38:41 | 0.96 | y | 590 | 106 | |||
| IIEES | CHTH | Z | Pn | E | 2017-10-18 14:38:45 | -0.2 | y | 630 | 327 | |||
| IIEES | THKV | Z | Pn | E | 2017-10-18 14:38:47 | 0.11 | y | 644 | 326 | |||
| IIEES | MRVT | Z | Pn | E | 2017-10-18 14:38:57 | 0.32 | y | 726 | 8 | |||
| IIEES | BJRD | Z | Pn | E | 2017-10-18 14:39:01 | 0.07 | y | 758 | 17 | |||
| IIEES | GIDE | Z | Pn | E | 2017-10-18 14:39:05 | 0.66 | y | 786 | 325 | |||
| IIEES | CHBR | Z | Pn | E | 2017-10-18 14:39:09 | 0.34 | y | 826 | 137 | |||
| IIEES | SNGE | Z | Pn | E | 2017-10-18 14:39:09 | -0.14 | y | 828 | 304 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-10-18 14:39:10 | -0.2 | y | 837 | 318 | |||
| IIEES | GRMI | Z | Pn | E | 2017-10-18 14:39:38 | -0.2 | y | 1060 | 325 | |||
| IIEES | MAKU | Z | Pn | E | 2017-10-18 14:40:09 | 1.11 | y | 1297 | 317 | |||
