Magnitude |
:2.6 |
| Date & Time (UTC) | 2017-10-21 14:59:11.0 |
| Date & Time (Local) | 1396/7/29 18:29:11.0 |

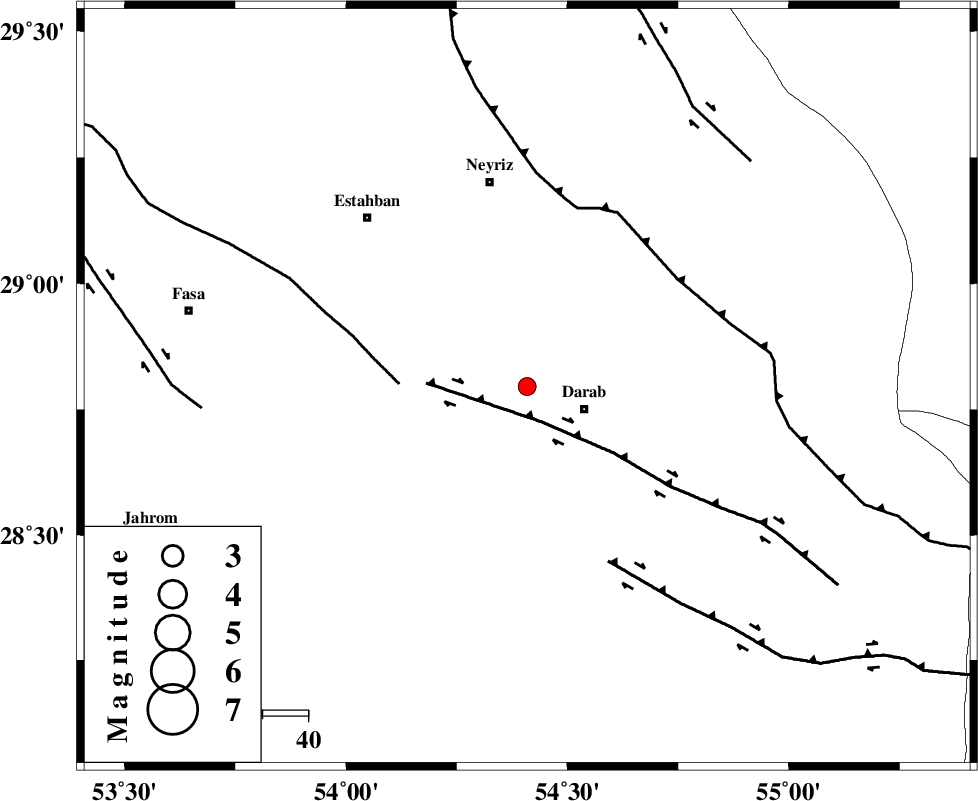

| Location | Lat:28.795 Lon: 54.409 |
| Region | Fars Province, 13 km -West of Darab |
Nearest Cities |
|
| 13 km West of Sang-e charak, Fars Province | |
| 13 km North West of Darab, Fars Province | |
| 14 km North West of Shahnan, Fars Province | |
| 14 km North East of Madoan, Fars Province | |
| 15 km North of Nasrovan, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| HZF1 (Length: 102 km) , Distance to epicenter: 8 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 28 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 41 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120670 | IIEES | GHIR | E | 53.6 | 0.42 | 2017-10-21 15:00:01 | 2017-10-22 05:36:00 | n |
| 120671 | IIEES | GHIR | N | 58.9 | 0.36 | 2017-10-21 15:00:07 | 2017-10-22 05:36:00 | n |
| 120672 | IIEES | BNDS | E | 27.7 | 0.63 | 2017-10-21 15:00:31 | 2017-10-22 05:36:00 | n |
| 120673 | IIEES | BNDS | N | 21.7 | 0.45 | 2017-10-21 15:00:39 | 2017-10-22 05:36:00 | n |
| 120674 | IIEES | KRBR | N | 60 | 0.63 | 2017-10-21 15:00:34 | 2017-10-22 05:36:00 | n |
| 120675 | IIEES | KRBR | E | 55.5 | 0.63 | 2017-10-21 15:00:36 | 2017-10-22 05:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2017-10-21 14:59:36 | 0.25 | y | 150 | 248 | |||
| IIEES | BNDS | Z | Pn | E | 2017-10-21 14:59:47 | -0.16 | y | 232 | 131 | |||
| IIEES | BNDS | E | Sg | E | 2017-10-21 15:00:16 | -0.02 | y | 232 | 131 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-21 14:59:51 | -0.03 | y | 264 | 59 | |||
| IIEES | KRBR | N | Sg | E | 2017-10-21 15:00:25 | 0.27 | y | 264 | 59 | |||
| IIEES | YZKH | Z | Pn | E | 2017-10-21 15:00:07 | -0.38 | y | 399 | 2 | |||
