Magnitude |
:3.3 |
| Date & Time (UTC) | 2017-10-23 18:58:54.3 |
| Date & Time (Local) | 1396/8/1 22:28:54.3 |

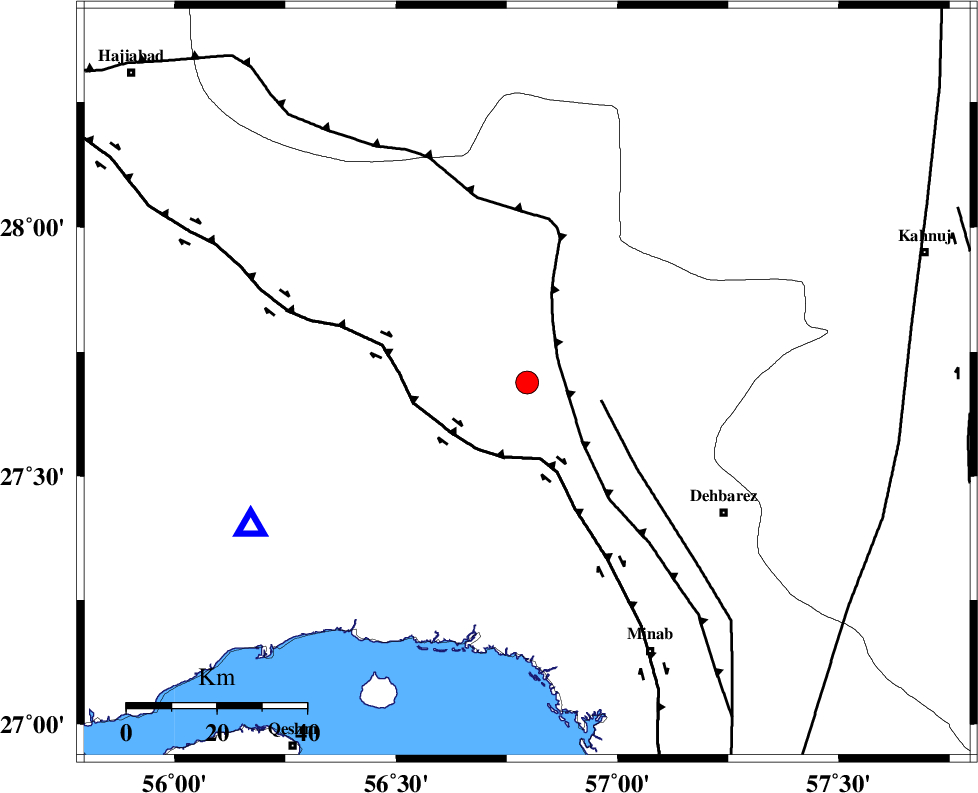

| Location | Lat:27.688 Lon: 56.796 |
| Region | Hormozgan Province, 53 km North-West of Dehbarez |
Nearest Cities |
|
| 43 km West of Ziaratali, Hormozgan Province | |
| 49 km North West of Balashahr, Hormozgan Province | |
| 50 km South West of Fariab, Hormozgan Province | |
| 53 km North West of Dehbarez, Hormozgan Province | |
| 63 km South West of Faryab, Kerman Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 9 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 17 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 17 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120760 | IIEES | BNDS | E | 1766.6 | 0.37 | 2017-10-23 18:59:16 | 2017-10-24 07:23:00 | n |
| 120761 | IIEES | BNDS | N | 1683.3 | 0.33 | 2017-10-23 18:59:20 | 2017-10-24 07:23:00 | n |
| 120762 | IIEES | KRBR | E | 216.5 | 0.08 | 2017-10-23 19:00:10 | 2017-10-24 07:23:00 | n |
| 120763 | IIEES | KRBR | N | 155.9 | 0.23 | 2017-10-23 19:00:12 | 2017-10-24 07:23:00 | n |
| 120764 | IIEES | GHIR | E | 39.1 | 0.21 | 2017-10-23 19:00:43 | 2017-10-24 07:23:00 | n |
| 120765 | IIEES | GHIR | N | 36.8 | 0.31 | 2017-10-23 19:00:58 | 2017-10-24 07:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-10-23 18:59:06 | 0.17 | y | 69.5 | 243 | |||
| IIEES | BNDS | E | Sg | E | 2017-10-23 18:59:15 | -0.18 | y | 69.5 | 243 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-23 18:59:34 | -0.15 | y | 254 | 359 | |||
| IIEES | GHIR | Z | Pn | E | 2017-10-23 18:59:50 | 0.17 | y | 380 | 281 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-10-23 18:59:58 | 0 | y | 444 | 60 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-23 19:00:08 | -0.05 | y | 525 | 25 | |||
| IIEES | YZKH | Z | Pn | E | 2017-10-23 19:00:13 | 0.09 | y | 563 | 338 | |||
