Magnitude |
:2.9 |
| Date & Time (UTC) | 2017-11-03 20:02:24.1 |
| Date & Time (Local) | 1396/8/12 23:32:24.1 |

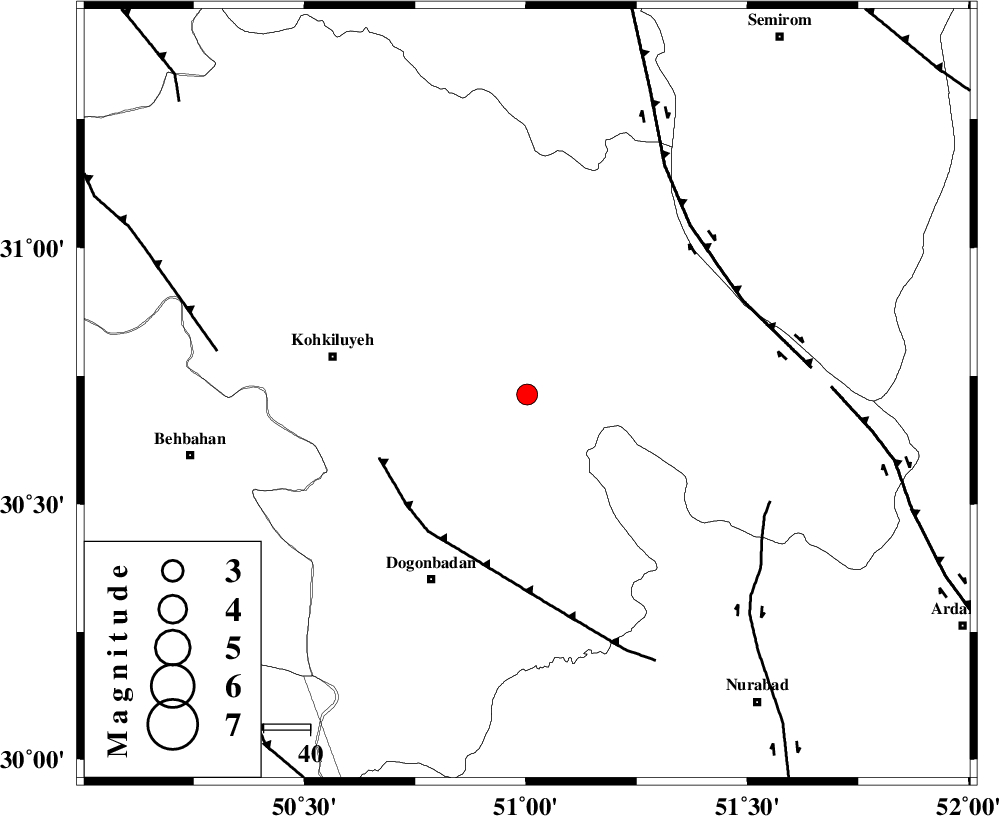

| Location | Lat:30.714 Lon: 51.003 |
| Region | Kohkiluieh va boyerahmad Province, 43 km -East of Dehdasht |
Nearest Cities |
|
| 30 km North of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 30 km West of Chitab, Kohkiluieh va boyerahmad Province | |
| 31 km South East of Savari, Kohkiluieh va boyerahmad Province | |
| 32 km South of Margun, Kohkiluieh va boyerahmad Province | |
| 37 km North West of Sepidar, Kohkiluieh va boyerahmad Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 35 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 51 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 57 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121016 | IIEES | AHRM | E | 78.7 | 0.48 | 2017-11-03 20:03:25 | 2017-11-04 05:27:00 | n |
| 121017 | IIEES | AHRM | N | 123.8 | 0.61 | 2017-11-03 20:03:26 | 2017-11-04 05:27:00 | n |
| 121018 | IIEES | GHIR | E | 33.2 | 0.4 | 2017-11-03 20:04:04 | 2017-11-04 05:27:00 | n |
| 121019 | IIEES | GHIR | N | 46.1 | 0.53 | 2017-11-03 20:04:06 | 2017-11-04 05:27:00 | n |
| 121020 | IIEES | ASAO | N | 16 | 0.63 | 2017-11-03 20:04:15 | 2017-11-04 05:27:00 | n |
| 121021 | IIEES | ASAO | E | 6.1 | 0.5 | 2017-11-03 20:04:15 | 2017-11-04 05:27:00 | n |
| 121022 | IIEES | SNGE | N | 3.6 | 0.52 | 2017-11-03 20:04:51 | 2017-11-04 05:27:00 | n |
| 121023 | IIEES | SNGE | E | 3.6 | 0.45 | 2017-11-03 20:04:54 | 2017-11-04 05:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2017-11-03 20:02:57 | 0.1 | y | 207 | 172 | |||
| IIEES | AHRM | N | Sg | E | 2017-11-03 20:03:22 | 0 | y | 207 | 172 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-03 20:03:08 | 0.37 | y | 288 | 36 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-03 20:03:12 | -0.09 | y | 331 | 144 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-03 20:03:15 | -0.04 | y | 350 | 344 | |||
| IIEES | YZKH | Z | Pn | E | 2017-11-03 20:03:19 | -0.28 | y | 388 | 60 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-03 20:03:25 | -0.19 | y | 435 | 348 | |||
| IIEES | SNGE | Z | Pn | E | 2017-11-03 20:03:45 | 0.06 | y | 594 | 326 | |||
