Magnitude |
:3.4 |
| Date & Time (UTC) | 2017-11-05 19:34:05.4 |
| Date & Time (Local) | 1396/8/14 23:04:05.4 |
| Location | Lat:28.392 Lon: 52.721 |
| Region | Fars Province, 31 km -West of Qir va Karzin |
Nearest Cities |
|
| 7 km North of Hengam, Fars Province | |
| 31 km West of Qir va Karzin, Fars Province | |
| 35 km West of Shahrak-e jonubi, Fars Province | |
| 41 km South of Jaydasht, Fars Province | |
| 41 km West of Fathabad, Fars Province | |
| Depth | 13 km |
| Agency | |

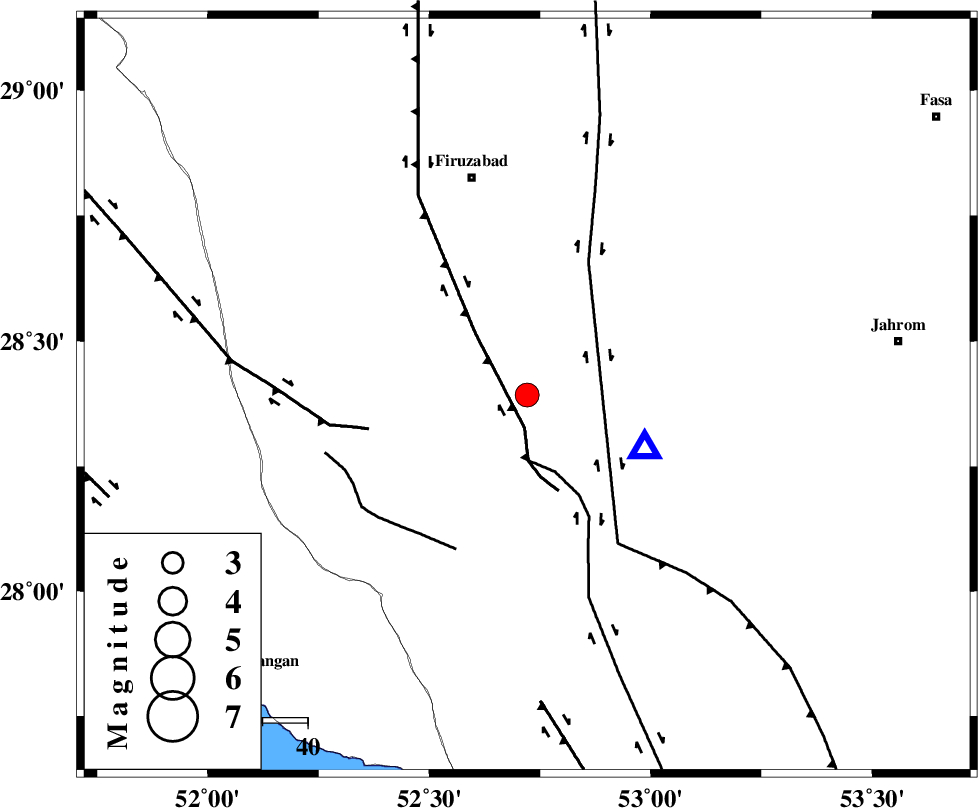

Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 7 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 35 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 44 km | |
| Number of Phases | 5 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >8.9 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121059 | IIEES | GHIR | N | 7989.8 | 0.43 | 2017-11-05 19:34:23 | 2017-11-06 05:35:00 | n |
| 121060 | IIEES | GHIR | E | 8752.4 | 0.25 | 2017-11-05 19:34:23 | 2017-11-06 05:35:00 | n |
| 121061 | IIEES | AHRM | N | 476.4 | 0.47 | 2017-11-05 19:34:57 | 2017-11-06 05:35:00 | n |
| 121062 | IIEES | BNDS | N | 44.6 | 0.36 | 2017-11-05 19:36:07 | 2017-11-06 05:35:00 | n |
| 121063 | IIEES | KRBR | E | 36.1 | 0.51 | 2017-11-05 19:36:19 | 2017-11-06 05:35:00 | n |
| 121064 | IIEES | KRBR | N | 44.1 | 0.64 | 2017-11-05 19:36:25 | 2017-11-06 05:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2017-11-05 19:34:10 | -0.04 | y | 28.6 | 114 | |||
| IIEES | AHRM | Z | Pg | E | 2017-11-05 19:34:31 | 0.06 | y | 149 | 291 | |||
| IIEES | BNDS | Z | Pn | E | 2017-11-05 19:34:57 | -0.16 | y | 357 | 107 | |||
| IIEES | KRBR | Z | Pn | E | 2017-11-05 19:35:07 | 0.53 | y | 431 | 65 | |||
| IIEES | YZKH | Z | Pn | E | 2017-11-05 19:35:12 | -0.41 | y | 478 | 22 | |||
