Magnitude |
:4.5 |
| Date & Time (UTC) | 2017-11-13 00:20:53.0 |
| Date & Time (Local) | 1396/8/22 03:50:53.0 |

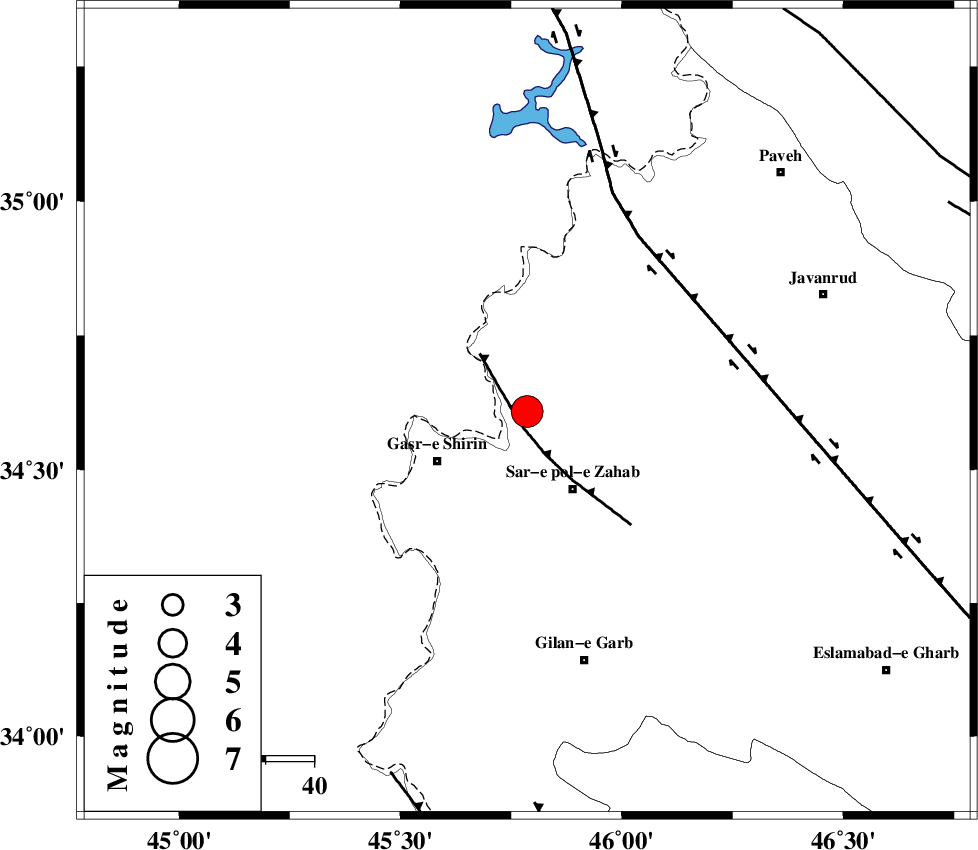

| Location | Lat:34.608 Lon: 45.786 |
| Region | Kermanshah Province, 18 km South of Tazehabad |
Nearest Cities |
|
| 5 km North of Mirmiru, Kermanshah Province | |
| 12 km South of Gardehnu, Kermanshah Province | |
| 12 km West of Bazmirabad, Kermanshah Province | |
| 13 km North East of Aqabarar, Kermanshah Province | |
| 14 km North of Qareh belagh, Kermanshah Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 3 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 43 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 80 km | |
| Number of Phases | 19 |
| RMS | 0.4 |
| Number of Stations | 17 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121345 | IIEES | SNGE | N | 9429.2 | 0.35 | 2017-11-13 00:21:43 | 2017-11-13 05:03:00 | n |
| 121346 | IIEES | GIDE | N | 593.9 | 0.63 | 2017-11-13 00:23:14 | 2017-11-13 05:03:00 | n |
| 121347 | IIEES | GIDE | E | 403.4 | 0.73 | 2017-11-13 00:23:15 | 2017-11-13 05:03:00 | n |
| 121348 | IIEES | GHVR | N | 252.6 | 0.53 | 2017-11-13 00:23:34 | 2017-11-13 05:03:00 | n |
| 121349 | IIEES | GHVR | E | 246 | 0.64 | 2017-11-13 00:23:36 | 2017-11-13 05:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-11-13 00:21:12 | -0.01 | y | 116 | 160 | |||
| IIEES | SNGE | Z | Pg | E | 2017-11-13 00:21:18 | 0.01 | y | 153 | 69 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-13 00:21:44 | 0.28 | y | 348 | 48 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-13 00:21:49 | 0.79 | y | 389 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-13 00:21:50 | 0.18 | y | 397 | 103 | |||
| IIEES | GIDE | Z | Pn | E | 2017-11-13 00:21:56 | 0.03 | y | 453 | 54 | |||
| IIEES | THKV | Z | Pn | E | 2017-11-13 00:22:00 | -0.24 | y | 486 | 71 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-13 00:22:02 | 0.16 | y | 501 | 90 | |||
| IIEES | GRMI | Z | Pn | E | 2017-11-13 00:22:02 | -0.11 | y | 503 | 21 | |||
| IIEES | CHTH | Z | Pn | E | 2017-11-13 00:22:02 | -0.91 | y | 507 | 72 | |||
| IIEES | MAKU | Z | Pn | E | 2017-11-13 00:22:07 | 0.1 | y | 536 | 350 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-13 00:22:25 | -0.23 | y | 681 | 105 | |||
| IIEES | AHRM | Z | Pn | E | 2017-11-13 00:22:42 | -0.37 | y | 823 | 139 | |||
| IIEES | YZKH | Z | Pn | E | 2017-11-13 00:22:46 | 0.01 | y | 854 | 104 | |||
| IIEES | SHRO | Z | Pn | E | 2017-11-13 00:22:58 | 0.44 | y | 943 | 78 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-13 00:22:58 | -3.42 | n | 4 | 979 | 134 | ||
| IIEES | MRVT | Z | Pn | E | 2017-11-13 00:23:02 | -0.71 | y | 987 | 67 | |||
| IIEES | TABS | Z | Pn | E | 2017-11-13 00:23:10 | -0.67 | y | 1050 | 93 | |||
| IIEES | BNDS | Z | Pn | E | 2017-11-13 00:23:34 | -4.15 | n | 4 | 1272 | 126 | ||
