Magnitude |
:3.7 |
| Date & Time (UTC) | 2017-11-17 06:22:26.8 |
| Date & Time (Local) | 1396/8/26 09:52:26.8 |
| Location | Lat:33.828 Lon: 48.751 |
| Region | Lorestan Province, 8 km of Borujerd |
Nearest Cities |
|
| 4 km of Hemmatabad, Lorestan Province | |
| 8 km of Borujerd, Lorestan Province | |
| 9 km of Valanjerd, Lorestan Province | |
| 12 km North East of Pellekan-e sofla, Lorestan Province | |
| 17 km South of Bon dizeh, Lorestan Province | |
| Depth | 15 km |
| Agency | |

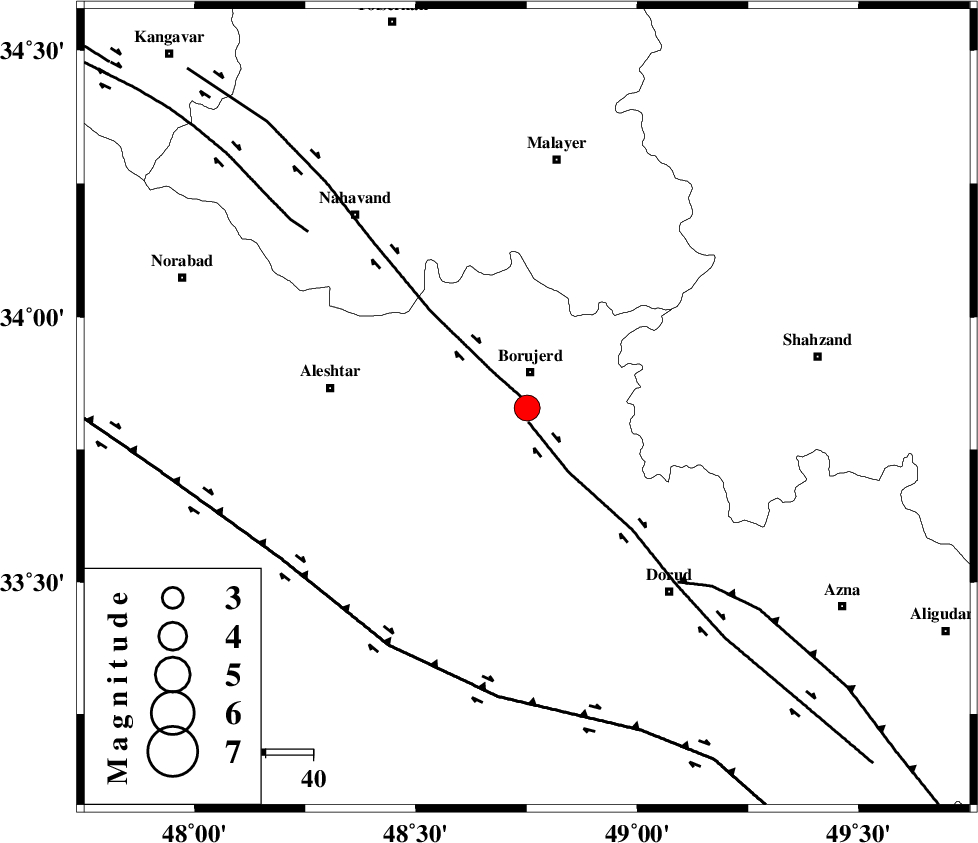

Faults within 150 km: |
|
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 2 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 3 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 48 km | |
| Number of Phases | 18 |
| RMS | 1 |
| Number of Stations | 16 |
| Error in Latitude | >9.1 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121790 | IIEES | KHMZ | N | 2532.6 | 0.5 | 2017-11-17 06:23:02 | 2017-11-18 06:41:00 | n |
| 121791 | IIEES | KHMZ | E | 2546.2 | 0.6 | 2017-11-17 06:23:03 | 2017-11-18 06:41:00 | n |
| 121792 | IIEES | ASAO | N | 1627.3 | 0.41 | 2017-11-17 06:23:10 | 2017-11-18 06:41:00 | n |
| 121793 | IIEES | ASAO | E | 1574.7 | 0.41 | 2017-11-17 06:23:11 | 2017-11-18 06:41:00 | n |
| 121794 | IIEES | SNGE | N | 464.9 | 0.57 | 2017-11-17 06:23:35 | 2017-11-18 06:41:00 | n |
| 121795 | IIEES | GHVR | N | 666.5 | 0.37 | 2017-11-17 06:23:44 | 2017-11-18 06:41:00 | n |
| 121796 | IIEES | THKV | N | 249.1 | 0.28 | 2017-11-17 06:24:01 | 2017-11-18 06:41:00 | n |
| 121797 | IIEES | THKV | E | 302.8 | 0.77 | 2017-11-17 06:24:02 | 2017-11-18 06:41:00 | n |
| 121798 | IIEES | ZNJK | E | 103 | 0.88 | 2017-11-17 06:24:01 | 2017-11-18 06:41:00 | n |
| 121799 | IIEES | DAMV | N | 133.8 | 0.27 | 2017-11-17 06:24:13 | 2017-11-18 06:41:00 | n |
| 121800 | IIEES | DAMV | E | 114.9 | 0.55 | 2017-11-17 06:24:18 | 2017-11-18 06:41:00 | n |
| 121801 | IIEES | GIDE | N | 129.8 | 0.38 | 2017-11-17 06:24:20 | 2017-11-18 06:41:00 | n |
| 121802 | IIEES | GIDE | E | 121.6 | 0.69 | 2017-11-17 06:24:23 | 2017-11-18 06:41:00 | n |
| 121803 | IIEES | NASN | N | 83.2 | 0.58 | 2017-11-17 06:24:23 | 2017-11-18 06:41:00 | n |
| 121804 | IIEES | NASN | E | 86.7 | 0.45 | 2017-11-17 06:24:25 | 2017-11-18 06:41:00 | n |
| 121805 | IIEES | YZKH | E | 22.2 | 0.72 | 2017-11-17 06:25:22 | 2017-11-18 06:41:00 | n |
| 121806 | IIEES | YZKH | N | 22.2 | 0.72 | 2017-11-17 06:25:25 | 2017-11-18 06:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2017-11-17 06:22:44 | -1.11 | y | 113 | 95 | |||
| IIEES | KHMZ | N | Sg | E | 2017-11-17 06:22:58 | -1.45 | y | 113 | 95 | |||
| IIEES | ASAO | Z | Pg | E | 2017-11-17 06:22:49 | -0.9 | y | 142 | 55 | |||
| IIEES | SNGE | Z | Pg | E | 2017-11-17 06:22:56 | -1.37 | y | 191 | 318 | |||
| IIEES | ILBA | Z | Pn | E | 2017-11-17 06:23:04 | 0.47 | y | 237 | 265 | |||
| IIEES | ILBA | N | Sg | E | 2017-11-17 06:23:33 | -0.52 | y | 237 | 265 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-17 06:23:05 | 1.49 | y | 241 | 72 | |||
| IIEES | THKV | Z | Pn | E | 2017-11-17 06:23:13 | 1.4 | n | 4 | 302 | 39 | ||
| IIEES | ZNJK | Z | Pn | E | 2017-11-17 06:23:14 | 0.38 | y | 315 | 359 | |||
| IIEES | CHTH | Z | Pn | E | 2017-11-17 06:23:14 | 0.99 | y | 317 | 43 | |||
| IIEES | DAMV | Z | Pn | E | 2017-11-17 06:23:19 | 0.69 | y | 356 | 55 | |||
| IIEES | GIDE | Z | Pn | E | 2017-11-17 06:23:18 | -0.94 | y | 359 | 17 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-17 06:23:24 | 1.3 | y | 395 | 106 | |||
| IIEES | GRMI | Z | Pn | E | 2017-11-17 06:23:45 | 1.31 | y | 558 | 352 | |||
| IIEES | YZKH | Z | Pn | E | 2017-11-17 06:23:46 | 0.98 | y | 568 | 105 | |||
| IIEES | AHRM | Z | Pn | E | 2017-11-17 06:23:49 | 0.4 | y | 601 | 156 | |||
| IIEES | SHRO | Z | Pn | E | 2017-11-17 06:24:02 | 0.25 | y | 706 | 68 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-17 06:24:04 | -0.85 | y | 735 | 146 | |||
