Magnitude |
:3 |
| Date & Time (UTC) | 2017-11-18 06:32:30.4 |
| Date & Time (Local) | 1396/8/27 10:02:30.4 |

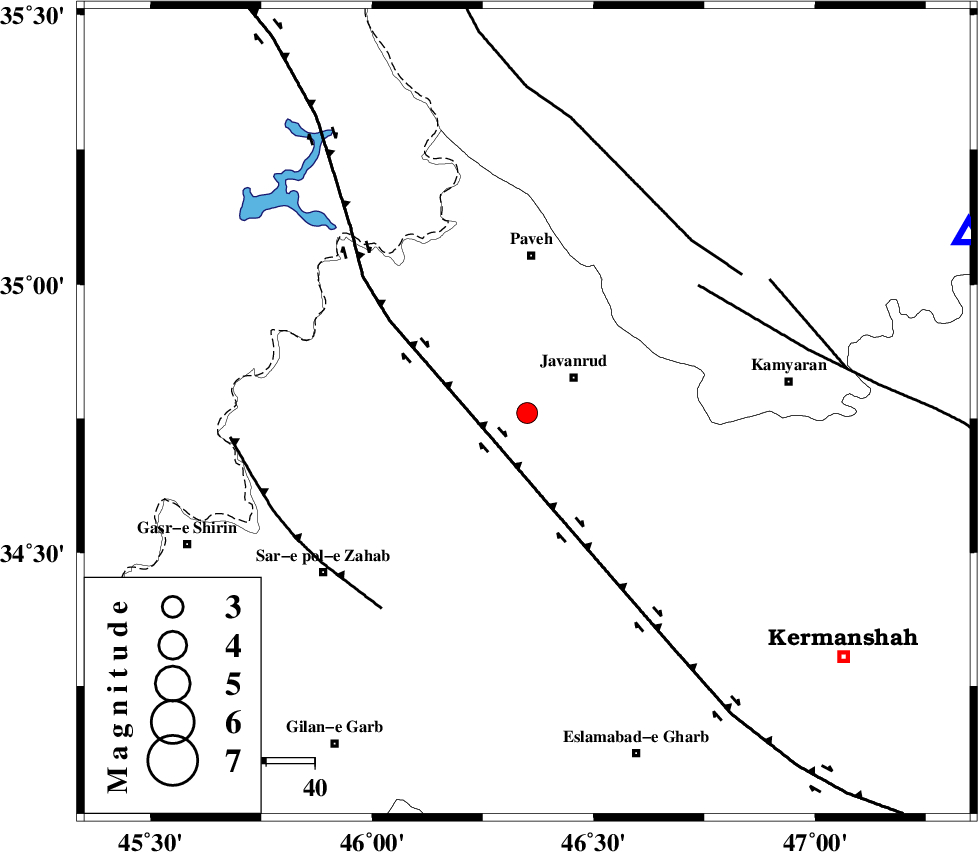

| Location | Lat:34.761 Lon: 46.35 |
| Region | Kermanshah Province, 12 km -West of Javanrud |
Nearest Cities |
|
| 9 km North West of Sarukhan, Kermanshah Province | |
| 9 km North of Mirabad, Kermanshah Province | |
| 12 km of Shervineh, Kermanshah Province | |
| 12 km West of Javanrud, Kermanshah Province | |
| 14 km North West of Dolatabad, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 11 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 44 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 49 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >8.1 km |
| Error in Longitude | 7 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121998 | IIEES | SNGE | N | 678.8 | 0.47 | 2017-11-18 06:33:04 | 2017-11-18 11:48:00 | n |
| 121999 | IIEES | SNGE | E | 505.5 | 0.41 | 2017-11-18 06:33:04 | 2017-11-18 11:48:00 | n |
| 122000 | IIEES | ASAO | N | 37.6 | 0.46 | 2017-11-18 06:34:14 | 2017-11-18 11:48:00 | n |
| 122001 | IIEES | ASAO | E | 25.6 | 0.69 | 2017-11-18 06:34:23 | 2017-11-18 11:48:00 | n |
| 122002 | IIEES | KHMZ | E | 38 | 0.55 | 2017-11-18 06:34:21 | 2017-11-18 11:48:00 | n |
| 122003 | IIEES | KHMZ | N | 28.3 | 0.55 | 2017-11-18 06:34:25 | 2017-11-18 11:48:00 | n |
| 122004 | IIEES | GIDE | N | 22.8 | 0.4 | 2017-11-18 06:34:42 | 2017-11-18 11:48:00 | n |
| 122005 | IIEES | GIDE | E | 21.2 | 0.51 | 2017-11-18 06:34:43 | 2017-11-18 11:48:00 | n |
| 122006 | IIEES | GHVR | E | 22.7 | 0.6 | 2017-11-18 06:34:52 | 2017-11-18 11:48:00 | n |
| 122007 | IIEES | GHVR | N | 19 | 0.6 | 2017-11-18 06:34:53 | 2017-11-18 11:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2017-11-18 06:32:46 | -0.47 | y | 98.3 | 68 | |||
| IIEES | SNGE | N | Sg | E | 2017-11-18 06:32:59 | 0.17 | y | 98.3 | 68 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-18 06:33:15 | 0.36 | y | 299 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-18 06:33:20 | 0.52 | y | 338 | 93 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-18 06:33:21 | -0.25 | y | 352 | 108 | |||
| IIEES | KHMZ | N | S | E | 2017-11-18 06:33:59 | -0.18 | y | 352 | 108 | |||
| IIEES | GIDE | Z | Pn | E | 2017-11-18 06:33:27 | -0.55 | y | 401 | 52 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-18 06:33:34 | 0.43 | y | 450 | 93 | |||
| IIEES | MAKU | Z | Pn | E | 2017-11-18 06:33:44 | -0.01 | y | 531 | 344 | |||
