Magnitude |
:4.4 |
| Date & Time (UTC) | 2017-11-20 15:35:59.4 |
| Date & Time (Local) | 1396/8/29 19:05:59.4 |
| Location | Lat:34.887 Lon: 45.745 |
| Region | Iraq, 16 km North of Tazehabad |
Nearest Cities |
|
| 15 km North of Tappeh rash, Kermanshah Province | |
| 16 km North of Tazehabad, Kermanshah Province | |
| 20 km North of Gardehnu, Kermanshah Province | |
| 21 km North West of Dehsheykh, Kermanshah Province | |
| 27 km South West of Markhil, Kermanshah Province | |
| Depth | 15 km |
| Agency | |

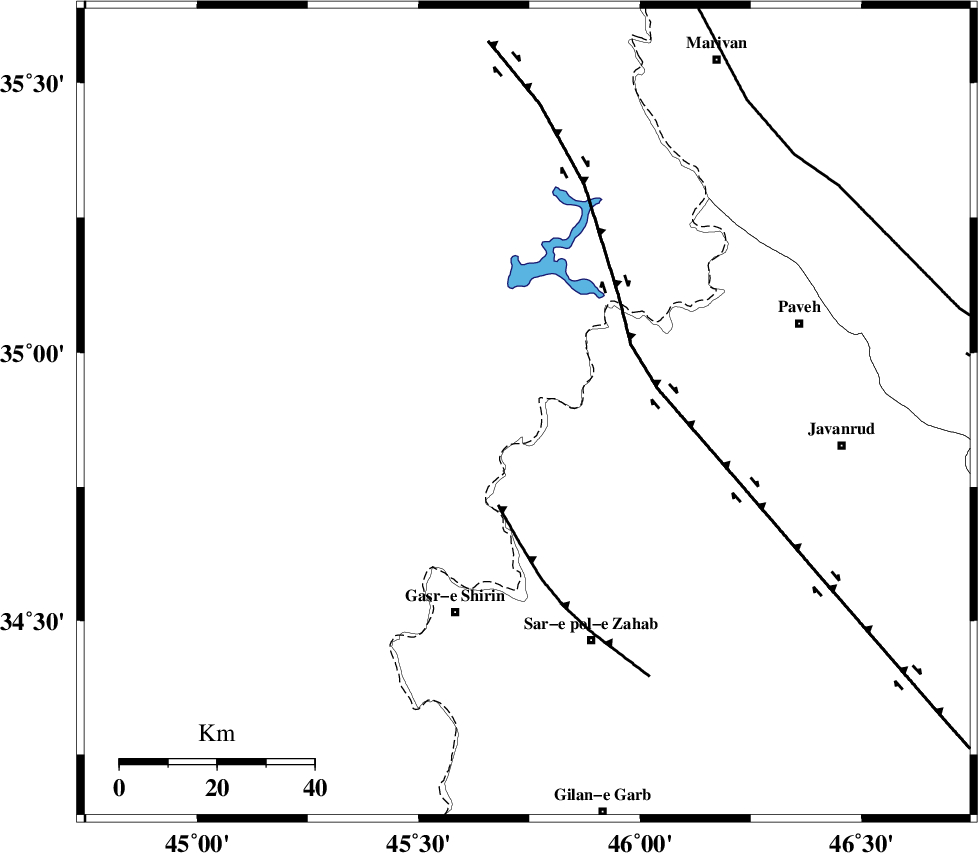

Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 20 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 26 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 77 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >4 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122128 | IIEES | ILBA | N | 8838.9 | 0.5 | 2017-11-20 15:36:44 | 2017-11-21 05:14:00 | n |
| 122129 | IIEES | SNGE | N | 4480.7 | 0.34 | 2017-11-20 15:36:44 | 2017-11-21 05:14:00 | n |
| 122130 | IIEES | SNGE | E | 5402.6 | 0.64 | 2017-11-20 15:36:45 | 2017-11-21 05:14:00 | n |
| 122131 | IIEES | GIDE | N | 376.3 | 0.7 | 2017-11-20 15:38:15 | 2017-11-21 05:14:00 | n |
| 122132 | IIEES | GHVR | E | 174 | 0.73 | 2017-11-20 15:38:44 | 2017-11-21 05:14:00 | n |
| 122133 | IIEES | GHVR | N | 249.6 | 0.73 | 2017-11-20 15:38:46 | 2017-11-21 05:14:00 | n |
| 122134 | IIEES | DAMV | N | 189 | 0.93 | 2017-11-20 15:38:54 | 2017-11-21 05:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-11-20 15:36:23 | -0.04 | y | 146 | 163 | |||
| IIEES | ILBA | N | Sg | E | 2017-11-20 15:36:41 | 0.19 | y | 146 | 163 | |||
| IIEES | SNGE | Z | Pg | E | 2017-11-20 15:36:24 | 0.14 | y | 148 | 81 | |||
| IIEES | SNGE | N | Sg | E | 2017-11-20 15:36:42 | 0.1 | y | 148 | 81 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-20 15:36:48 | -0.02 | y | 331 | 52 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-20 15:36:56 | -0.13 | y | 394 | 94 | |||
| IIEES | GIDE | Z | Pn | E | 2017-11-20 15:37:01 | 0.07 | y | 439 | 58 | |||
| IIEES | GRMI | Z | Pn | E | 2017-11-20 15:37:06 | 0.25 | y | 476 | 23 | |||
| IIEES | THKV | Z | Pn | E | 2017-11-20 15:37:07 | 0.36 | y | 480 | 75 | |||
| IIEES | CHTH | Z | Pn | E | 2017-11-20 15:37:09 | -0.07 | y | 502 | 75 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-20 15:37:08 | -1.05 | y | 506 | 94 | |||
| IIEES | DAMV | Z | Pn | E | 2017-11-20 15:37:16 | -1.4 | n | 4 | 572 | 80 | ||
