Magnitude |
:3.1 |
| Date & Time (UTC) | 2017-11-20 13:11:09.9 |
| Date & Time (Local) | 1396/8/29 16:41:09.9 |

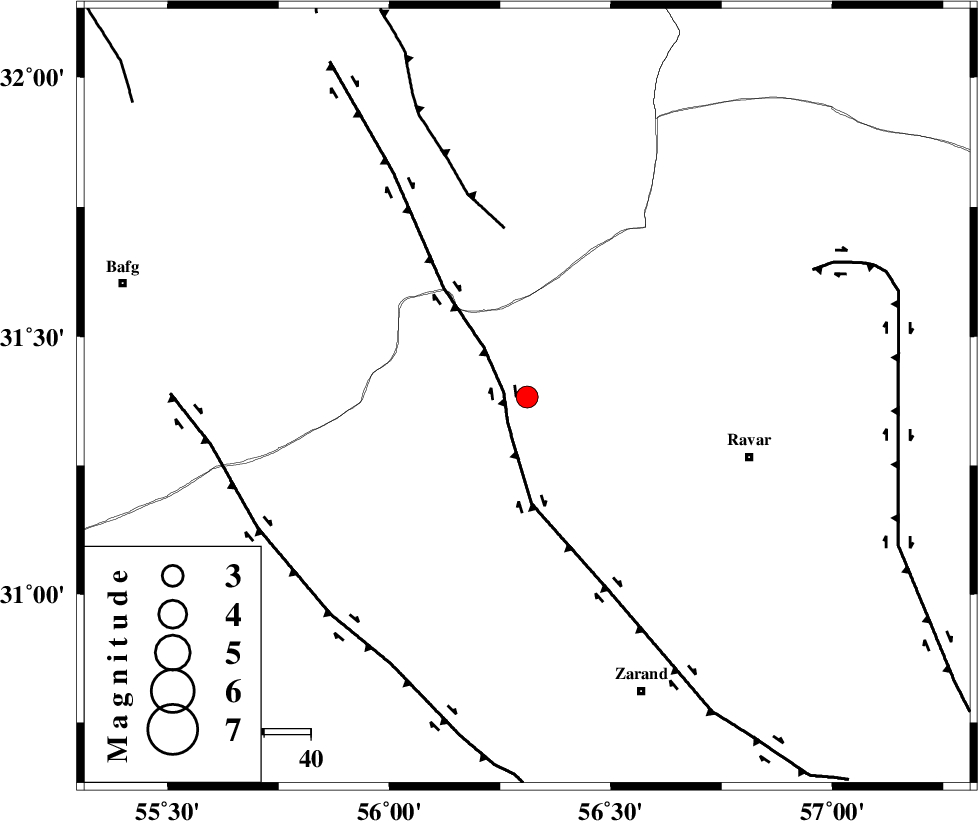

| Location | Lat:31.383 Lon: 56.311 |
| Region | Kerman Province, 49 km North-West of Ravar |
Nearest Cities |
|
| 3 km North of Jor, Kerman Province | |
| 4 km of Kuhbanan, Kerman Province | |
| 28 km North West of Toghroljerd, Kerman Province | |
| 33 km East of Basab, Yazd Province | |
| 33 km South of Asfih, Yazd Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 5 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 37 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 63 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122173 | IIEES | KRBR | E | 170.5 | 0.32 | 2017-11-20 13:12:06 | 2017-11-21 08:34:00 | n |
| 122174 | IIEES | KRBR | N | 180 | 0.59 | 2017-11-20 13:12:08 | 2017-11-21 08:34:00 | n |
| 122175 | IIEES | YZKH | N | 244.2 | 0.29 | 2017-11-20 13:12:12 | 2017-11-21 08:34:00 | n |
| 122176 | IIEES | YZKH | E | 216.7 | 0.46 | 2017-11-20 13:12:15 | 2017-11-21 08:34:00 | n |
| 122177 | IIEES | NASN | E | 28.3 | 0.44 | 2017-11-20 13:13:00 | 2017-11-21 08:34:00 | n |
| 122178 | IIEES | NASN | N | 29.6 | 0.44 | 2017-11-20 13:13:02 | 2017-11-21 08:34:00 | n |
| 122179 | IIEES | SHRO | N | 11.8 | 0.37 | 2017-11-20 13:13:43 | 2017-11-21 08:34:00 | n |
| 122180 | IIEES | SHRO | E | 11.6 | 0.84 | 2017-11-20 13:13:47 | 2017-11-21 08:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-11-20 13:11:37 | 0.24 | y | 161 | 164 | |||
| IIEES | KRBR | N | Sg | E | 2017-11-20 13:11:56 | 0.02 | y | 161 | 164 | |||
| IIEES | YZKH | Z | Pg | E | 2017-11-20 13:11:42 | -0.29 | y | 197 | 305 | |||
| IIEES | YZKH | N | Sg | E | 2017-11-20 13:12:06 | 0.03 | y | 197 | 305 | |||
| IIEES | TABS | Z | Pn | E | 2017-11-20 13:11:49 | -0.12 | y | 263 | 17 | |||
| IIEES | BSRN | Z | Pn | E | 2017-11-20 13:11:51 | -0.08 | y | 275 | 76 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-20 13:12:03 | 0.33 | y | 366 | 296 | |||
| IIEES | BNDS | Z | Pn | E | 2017-11-20 13:12:11 | -0.41 | y | 442 | 182 | |||
| IIEES | SHRT | Z | Pn | E | 2017-11-20 13:12:13 | 0.02 | y | 450 | 55 | |||
| IIEES | SHRO | Z | Pn | E | 2017-11-20 13:12:21 | 0.32 | y | 514 | 357 | |||
