Magnitude |
:3.5 |
| Date & Time (UTC) | 2017-11-22 09:56:36.2 |
| Date & Time (Local) | 1396/9/1 13:26:36.2 |
| Location | Lat:34.277 Lon: 45.204 |
| Region | Iraq, 44 km South-West of Qasr-E-Shirin |
Nearest Cities |
|
| 28 km South West of Khosravi, Kermanshah Province | |
| 40 km South West of Seyyed sohrab, Kermanshah Province | |
| 44 km South West of Qasr-E-Shirin, Kermanshah Province | |
| 52 km South West of Aqabarar, Kermanshah Province | |
| 58 km South West of Qareh belagh, Kermanshah Province | |
| Depth | 14 km |
| Agency | |

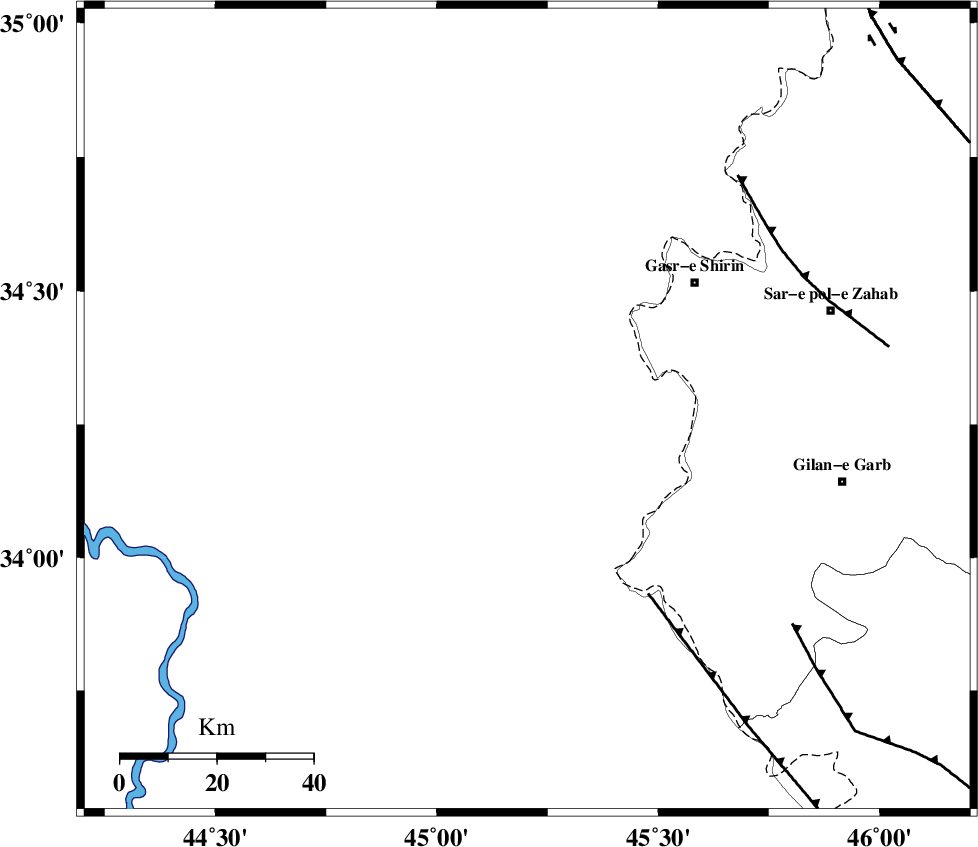

Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 46 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 62 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 71 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122372 | IIEES | SNGE | N | 209.6 | 0.61 | 2017-11-22 09:57:51 | 2017-11-22 11:30:00 | n |
| 122373 | IIEES | GIDE | E | 39.4 | 0.41 | 2017-11-22 09:59:22 | 2017-11-22 11:30:00 | n |
| 122374 | IIEES | GIDE | N | 77.5 | 0.78 | 2017-11-22 09:59:24 | 2017-11-22 11:30:00 | n |
| 122375 | IIEES | GHVR | N | 12.1 | 0.5 | 2017-11-22 09:59:14 | 2017-11-22 11:30:00 | n |
| 122376 | IIEES | GHVR | E | 16.8 | 0.66 | 2017-11-22 09:59:28 | 2017-11-22 11:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-11-22 09:56:55 | -0.43 | y | 118 | 128 | |||
| IIEES | ILBA | N | Sg | E | 2017-11-22 09:57:10 | 0.37 | y | 118 | 128 | |||
| IIEES | SNGE | Z | Pn | E | 2017-11-22 09:57:10 | -0.32 | y | 216 | 65 | |||
| IIEES | SNGE | N | Sg | E | 2017-11-22 09:57:37 | -0.05 | y | 216 | 65 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-22 09:57:35 | 0.39 | y | 413 | 49 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-22 09:57:39 | -0.22 | y | 444 | 96 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-22 09:57:39 | 0.02 | y | 444 | 85 | |||
| IIEES | GIDE | Z | Pn | E | 2017-11-22 09:57:48 | -0.19 | y | 518 | 54 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-22 09:57:53 | 0.34 | y | 556 | 86 | |||
| IIEES | GRMI | Z | Pn | E | 2017-11-22 09:57:53 | 0.11 | y | 558 | 25 | |||
| IIEES | MAKU | Z | Pn | E | 2017-11-22 09:57:54 | 0.16 | y | 565 | 355 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-22 09:58:14 | 0.07 | y | 725 | 101 | |||
