Magnitude |
:3.4 |
| Date & Time (UTC) | 2017-11-12 19:25:44.4 |
| Date & Time (Local) | 1396/8/21 22:55:44.4 |
| Location | Lat:35.035 Lon: 45.916 |
| Region | Kermanshah Province, 31 km North of Tazehabad |
Nearest Cities |
|
| 5 km of Markhil, Kermanshah Province | |
| 20 km North West of Bayangan, Kermanshah Province | |
| 21 km North of Dehsheykh, Kermanshah Province | |
| 23 km North West of Mazran, Kermanshah Province | |
| 25 km North West of Dudan, Kermanshah Province | |
| Depth | 16 km |
| Agency | |

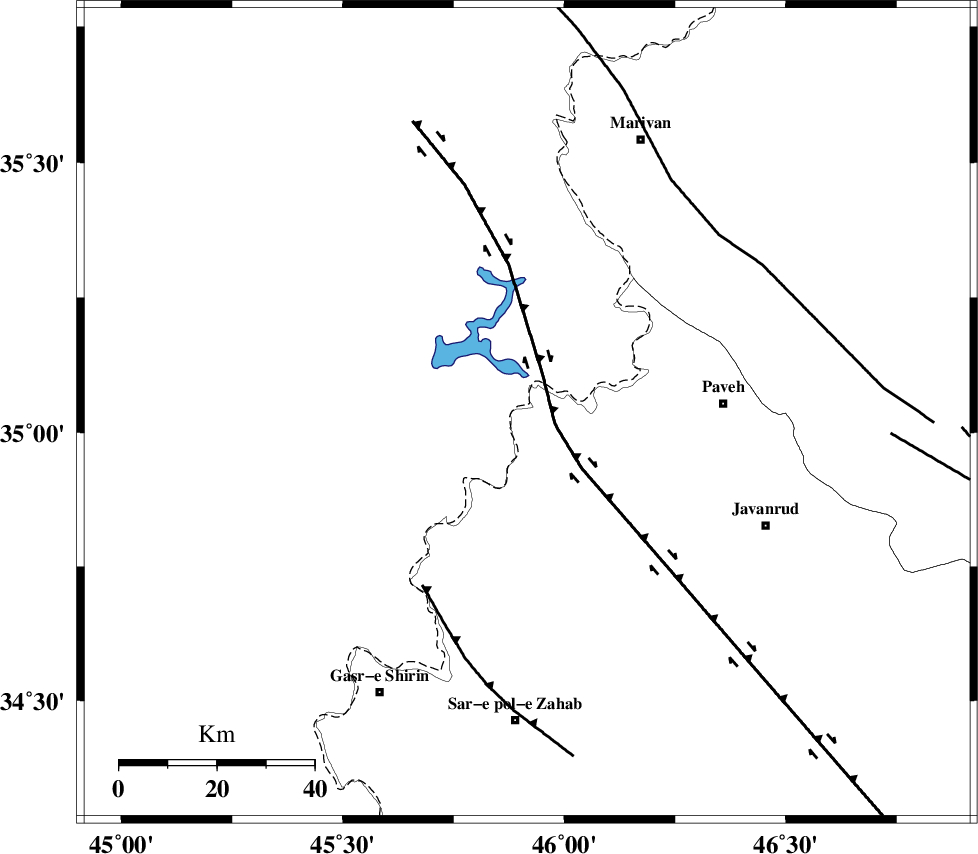

Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 6 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 42 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 54 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >5.3 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122675 | IIEES | SNGE | N | 845.6 | 0.67 | 2017-11-12 19:26:29 | 2017-11-26 11:39:00 | n |
| 122676 | IIEES | KHMZ | N | 46.5 | 0.5 | 2017-11-12 19:27:43 | 2017-11-26 11:39:00 | n |
| 122677 | IIEES | KHMZ | E | 49.1 | 0.5 | 2017-11-12 19:27:48 | 2017-11-26 11:39:00 | n |
| 122678 | IIEES | GIDE | E | 46.2 | 0.73 | 2017-11-12 19:27:57 | 2017-11-26 11:39:00 | n |
| 122679 | IIEES | GIDE | N | 39.6 | 0.64 | 2017-11-12 19:28:00 | 2017-11-26 11:39:00 | n |
| 122680 | IIEES | GHVR | E | 27.9 | 0.82 | 2017-11-12 19:28:28 | 2017-11-26 11:39:00 | n |
| 122681 | IIEES | GHVR | N | 28.6 | 0.18 | 2017-11-12 19:28:30 | 2017-11-26 11:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2017-11-12 19:26:05 | -0.41 | y | 131 | 87 | |||
| IIEES | SNGE | N | Sg | E | 2017-11-12 19:26:22 | 0.21 | y | 131 | 87 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-12 19:26:30 | 0.29 | y | 309 | 53 | |||
| IIEES | ZNJK | N | S | E | 2017-11-12 19:27:03 | -0.31 | y | 309 | 53 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-12 19:26:39 | 0.05 | y | 380 | 97 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-12 19:26:41 | -0.2 | y | 399 | 110 | |||
| IIEES | GIDE | Z | Pn | E | 2017-11-12 19:26:43 | -0.24 | y | 417 | 59 | |||
| IIEES | GRMI | Z | Pn | E | 2017-11-12 19:26:48 | 0.33 | y | 455 | 22 | |||
| IIEES | CHTH | Z | Pn | E | 2017-11-12 19:26:52 | 0.04 | y | 483 | 77 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-12 19:26:52 | -0.16 | y | 492 | 96 | |||
| IIEES | MAKU | Z | Pn | E | 2017-11-12 19:26:52 | -0.17 | y | 492 | 348 | |||
| IIEES | DAMV | Z | Pn | E | 2017-11-12 19:27:01 | 0.83 | y | 554 | 81 | |||
