Magnitude |
:2 |
| Date & Time (UTC) | 2017-11-22 19:38:03.9 |
| Date & Time (Local) | 1396/9/1 23:08:03.9 |

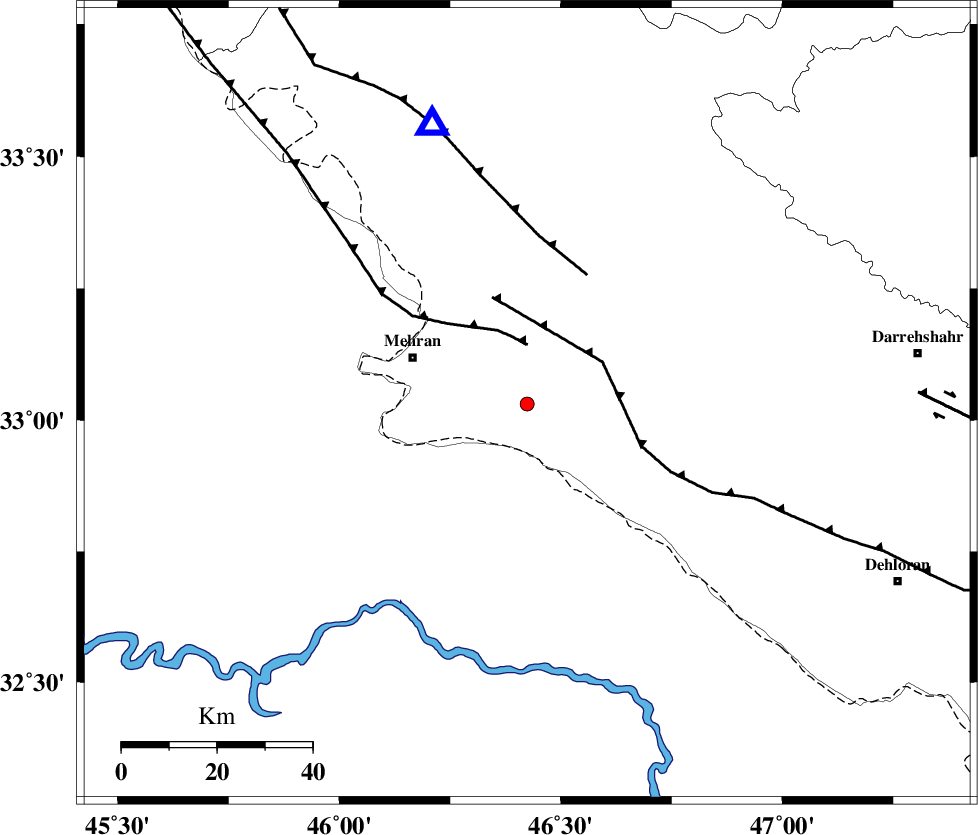

| Location | Lat:33.031 Lon: 46.424 |
| Region | Ilam Province, 26 km -East of Mehran |
Nearest Cities |
|
| 26 km East of Mehran, Ilam Province | |
| 27 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 34 km South of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 46 km South of Mehr, Ilam Province | |
| 53 km South West of Meymeh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 13 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 18 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 30 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 3 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122868 | IIEES | ILBA | N | 85.3 | 0.21 | 2017-11-22 19:38:27 | 2017-11-28 11:36:00 | n |
| 122869 | IIEES | SNGE | N | 9.1 | 0.67 | 2017-11-22 19:39:18 | 2017-11-28 11:36:00 | n |
| 122870 | IIEES | SNGE | E | 8.6 | 0.38 | 2017-11-22 19:39:20 | 2017-11-28 11:36:00 | n |
| 122871 | IIEES | ASAO | E | 2.8 | 0.51 | 2017-11-22 19:39:46 | 2017-11-28 11:36:00 | n |
| 122872 | IIEES | ASAO | N | 2.2 | 0.58 | 2017-11-22 19:39:56 | 2017-11-28 11:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-11-22 19:38:15 | -0.09 | y | 68.8 | 343 | |||
| IIEES | ILBA | N | Sg | E | 2017-11-22 19:38:24 | 0.04 | y | 68.8 | 343 | |||
| IIEES | SNGE | Z | Pn | E | 2017-11-22 19:38:42 | 0.09 | y | 244 | 20 | |||
| IIEES | SNGE | N | Sg | E | 2017-11-22 19:39:13 | -0.03 | y | 244 | 20 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-22 19:38:58 | -0.02 | y | 374 | 62 | |||
