Magnitude |
:3.8 |
| Date & Time (UTC) | 2017-11-30 00:19:35.8 |
| Date & Time (Local) | 1396/9/9 03:49:35.8 |

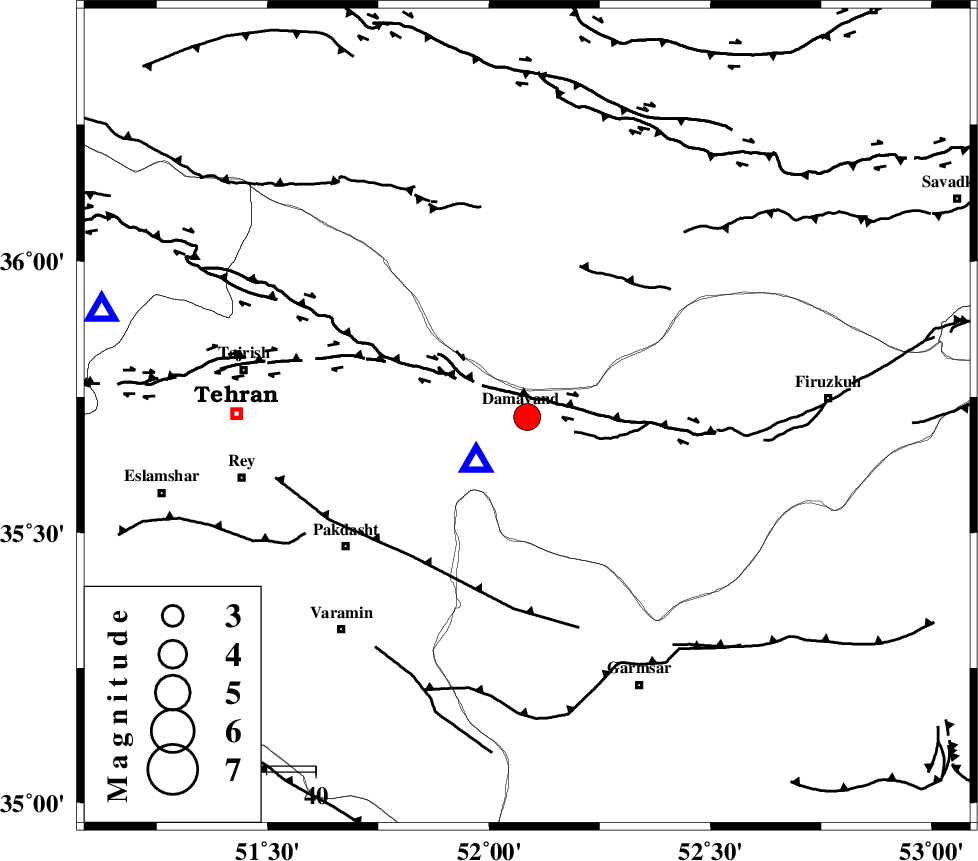

| Location | Lat:35.713 Lon: 52.086 |
| Region | Tehran Province, 1 km of Damavand |
Nearest Cities |
|
| 1 km of Damavand, Tehran Province | |
| 9 km of Abali, Tehran Province | |
| 9 km North of Ab sard, Tehran Province | |
| 12 km North of Mara, Tehran Province | |
| 19 km East of Rudehen, Tehran Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 6 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 30 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 37 km | |
| Number of Phases | 24 |
| RMS | 0.3 |
| Number of Stations | 23 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123092 | IIEES | DAMV | E | 34106 | 0.14 | 2017-11-30 00:19:42 | 2017-12-02 10:44:00 | n |
| 123093 | IIEES | DAMV | N | 30677.6 | 0.19 | 2017-11-30 00:19:42 | 2017-12-02 10:44:00 | n |
| 123094 | IIEES | GHVR | N | 2123.3 | 0.38 | 2017-11-30 00:20:31 | 2017-12-02 10:44:00 | n |
| 123095 | IIEES | GHVR | E | 1538.4 | 0.38 | 2017-11-30 00:20:31 | 2017-12-02 10:44:00 | n |
| 123096 | IIEES | ASAO | E | 363.2 | 0.83 | 2017-11-30 00:20:45 | 2017-12-02 10:44:00 | n |
| 123097 | IIEES | GIDE | E | 509.9 | 0.79 | 2017-11-30 00:20:51 | 2017-12-02 10:44:00 | n |
| 123098 | IIEES | GIDE | N | 370 | 0.54 | 2017-11-30 00:20:51 | 2017-12-02 10:44:00 | n |
| 123099 | IIEES | YZKH | E | 162.8 | 0.59 | 2017-11-30 00:21:48 | 2017-12-02 10:44:00 | n |
| 123100 | IIEES | YZKH | N | 92.7 | 0.53 | 2017-11-30 00:21:50 | 2017-12-02 10:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2017-11-30 00:19:39 | 0.3 | y | 13.9 | 229 | |||
| IIEES | CHTH | Z | Pg | E | 2017-11-30 00:19:50 | -0.75 | y | 89.4 | 284 | |||
| IIEES | THKV | Z | Pg | E | 2017-11-30 00:19:55 | -0.04 | y | 111 | 282 | |||
| IIEES | THKV | N | Sg | E | 2017-11-30 00:20:09 | -0.13 | y | 111 | 282 | |||
| IIEES | GHVR | Z | Pg | E | 2017-11-30 00:20:02 | -0.33 | y | 157 | 210 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-30 00:20:12 | -0.09 | y | 228 | 236 | |||
| IIEES | GIDE | Z | Pn | E | 2017-11-30 00:20:14 | 0.66 | y | 237 | 305 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-30 00:20:21 | 0.68 | y | 293 | 222 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-30 00:20:25 | 0.3 | y | 324 | 290 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-30 00:20:26 | 0.31 | y | 330 | 168 | |||
| IIEES | SHRO | Z | Pn | E | 2017-11-30 00:20:28 | 0.04 | y | 356 | 84 | |||
| IIEES | MRVT | Z | Pn | E | 2017-11-30 00:20:36 | -0.11 | y | 418 | 58 | |||
| IIEES | YZKH | Z | Pn | E | 2017-11-30 00:20:38 | -0.12 | y | 435 | 147 | |||
| IIEES | SNGE | Z | Pn | E | 2017-11-30 00:20:38 | 0.13 | y | 436 | 262 | |||
| IIEES | GRMI | Z | Pn | E | 2017-11-30 00:20:47 | 0.05 | y | 506 | 314 | |||
| IIEES | TABS | Z | Pn | E | 2017-11-30 00:20:48 | -0.15 | y | 515 | 115 | |||
| IIEES | BJRD | Z | Pn | E | 2017-11-30 00:20:49 | -0.04 | y | 524 | 64 | |||
| IIEES | ILBA | Z | Pn | E | 2017-11-30 00:20:56 | -0.63 | y | 586 | 248 | |||
| IIEES | MAKU | Z | Pn | E | 2017-11-30 00:21:20 | 0.02 | y | 769 | 304 | |||
| IIEES | KRBR | Z | Pn | E | 2017-11-30 00:21:20 | -0.17 | y | 771 | 144 | |||
| IIEES | BSRN | Z | Pn | E | 2017-11-30 00:21:20 | -0.14 | y | 773 | 121 | |||
| IIEES | SHRT | Z | Pn | E | 2017-11-30 00:21:21 | -0.29 | y | 786 | 105 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-30 00:21:27 | -0.32 | y | 828 | 174 | |||
| IIEES | BNDS | Z | Pn | E | 2017-11-30 00:21:48 | 0.15 | y | 1000 | 156 | |||
